2.8.2.3.2. Reporting Preserve for Debug Nodes

You can view data about preserve for debug nodes in the Compilation Report Preserve for Debug folder following Analysis & Synthesis.

The Preserve for Debug Assignments for Partition report is located in Tools > Compilation Report > Synthesis > Partition <name> > Preserve for Debug.

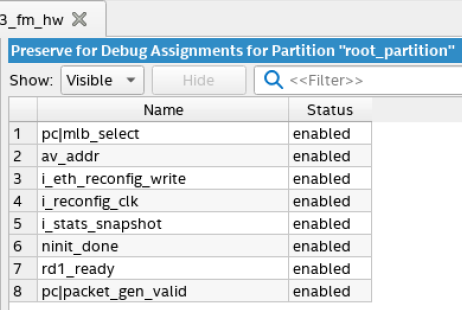

Figure 18. Preserve for Debug Assignments for Partition Report
