2.8.2.3.1. Locating Preserve for Debug Nodes

The Node Finder includes the following filters that simplify the process of locating the preserve for debug nodes in your project database:
  • Signal Tap: pre-synthesis preserved for debug filter—shows preserved nodes from the pre-synthesis netlist that generates during Analysis & Elaboration.
  • Signal Tap: post-fitting preserved for debug filter—shows preserved nodes from the post-fit netlist.

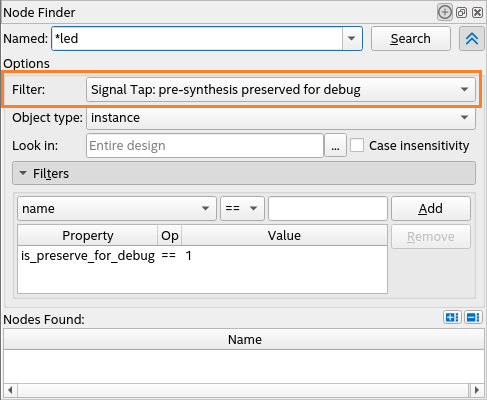

Figure 16. Node Finder with Preserve for Debug Filter
