3.4.5.5. Organizing Signals in the Signal Tap Logic Analyzer

Use dividers in the node list to separate and categorize your signals into groups to make reviewing the node table easier. You can move and rename dividers in the node table at any time.

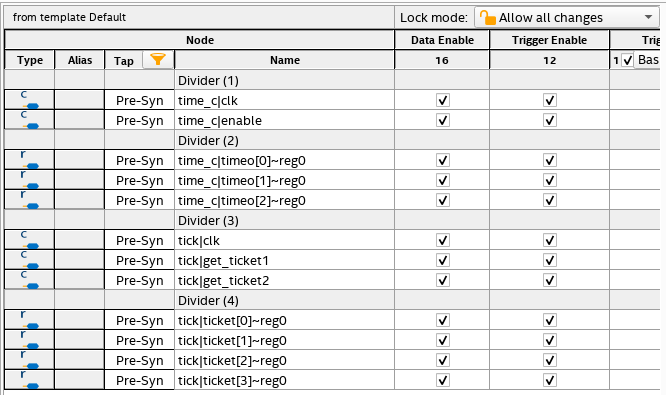

Figure 37. Example Signal Tap Logic Analyzer node table that shows a lists of nodes and dividers


  • To add a divider, right-click a node in the node table and select Add Divider.

    The new divider is added immediately above the selected node. The divider is assigned a name that you can change at any time.

  • To rename a divider, right-click the divider that you want to rename and select Rename.
  • To move a divider, drag-and-drop the divider to its new location.
  • To delete a divider, right-click the divider and select Delete.
