11.7.4.1. Memory Configuration Tab

The Memory Configuration tab shows the IP settings, which were defined when you parameterized the EMIF IP.

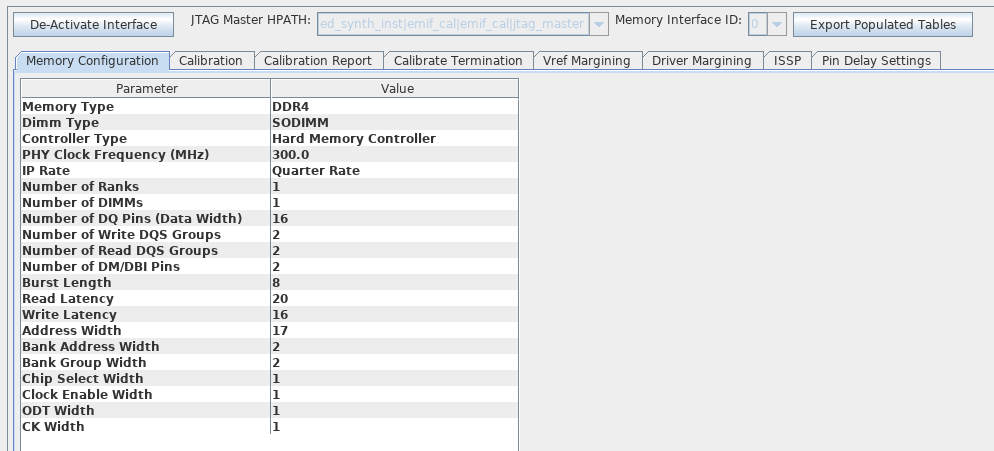

Figure 119. Memory Configuration Tab
