11.10.1. Enabling the On-Chip Debug Port

To export the cal_debug port, set the Quartus Prime EMIF Debug Toolkit/On-Chip Debug Port parameter to Export, when parameterizing the emif_cal IP.

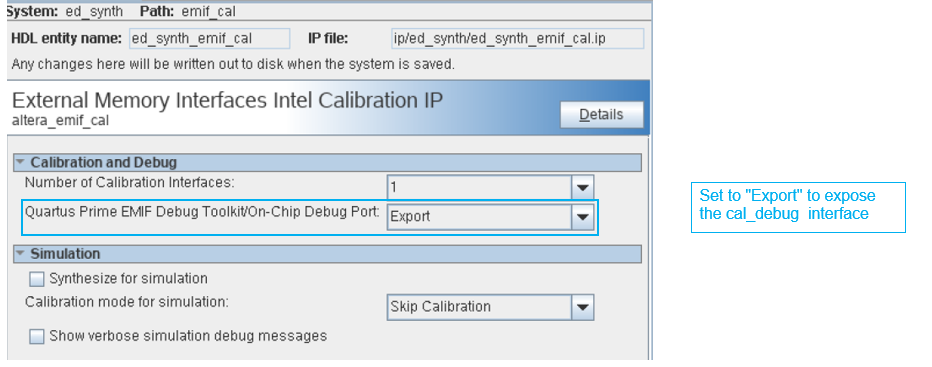

Figure 188. Enabling the On-Chip Debug Port
You may then create your own logic to perform the desired read/write commands on the cal_debug Avalon® memory-mapped interface.

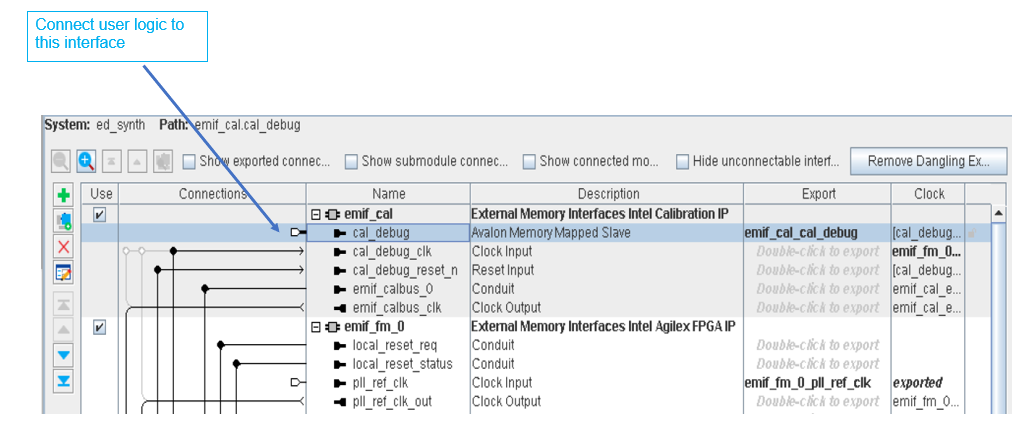

Figure 189. Connecting Your Own Logic
