3.2. Simulation Design Example

The simulation design example contains the major blocks shown in the following figure.
  • An instance of the synthesis design example. As described in the previous section, the synthesis design example contains a traffic generator and an instance of the memory interface.
  • A memory model, which acts as a generic model that adheres to the memory protocol specifications. Frequently, memory vendors provide simulation models for their specific memory components that you can download from their websites.
Figure 38.  Simulation Design Sync Fabric Mode
Simulation Design Sync Fabric Mode

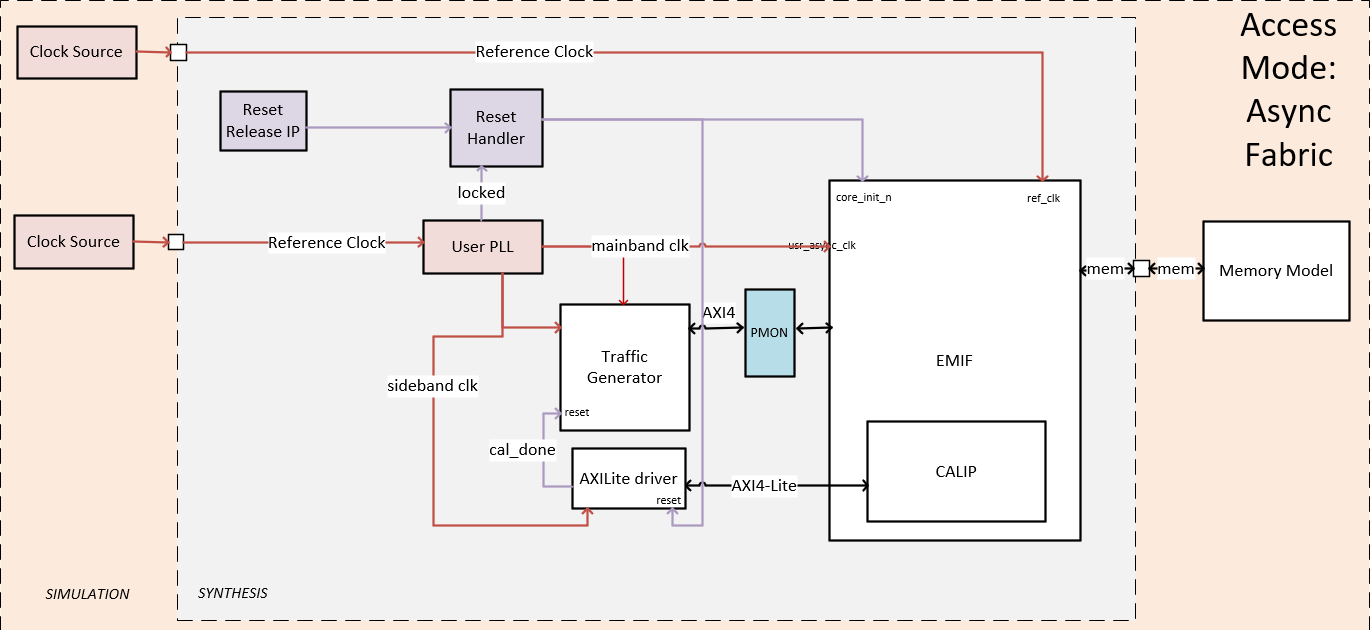

Figure 39.  Simulation Design Async Fabric Mode
Simulation Design Async Fabric Mode
