4.3.5. Compiling the Design

After upgrading the IP cores in the Platform Designer, the Upgrade IP Components is updated to match the current files and IP components available in the current design.

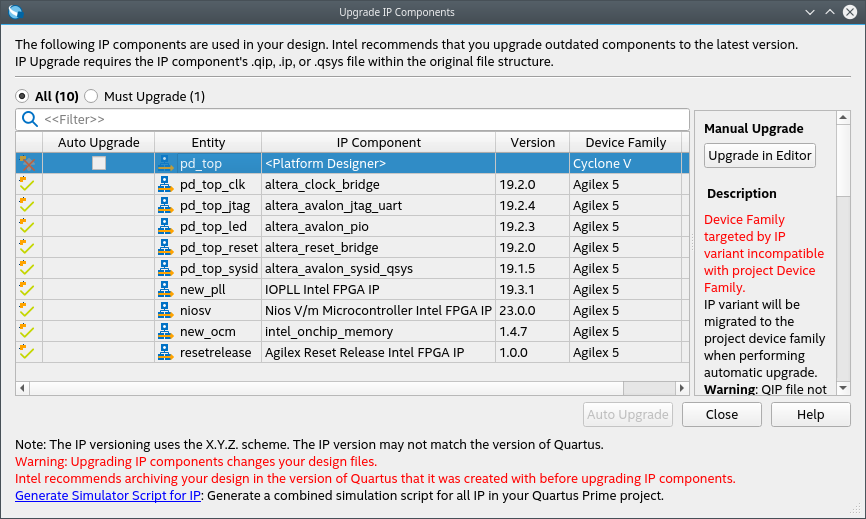

Figure 30.  Upgrade IP Components Dialog

As you can observe, the IP cores have been automatically upgraded to target Agilex™ 5. The Cyclone® V-targeted pd_top entity cannot be removed as it is a Platform Designer file. You continue to see it because the QIP file is still included in the project.

To remove the pd_top file, perform the following steps:

  1. Click Project > Add/Remove Files in Project.
  2. Remove the pd_top.qip file in the Files dialog.

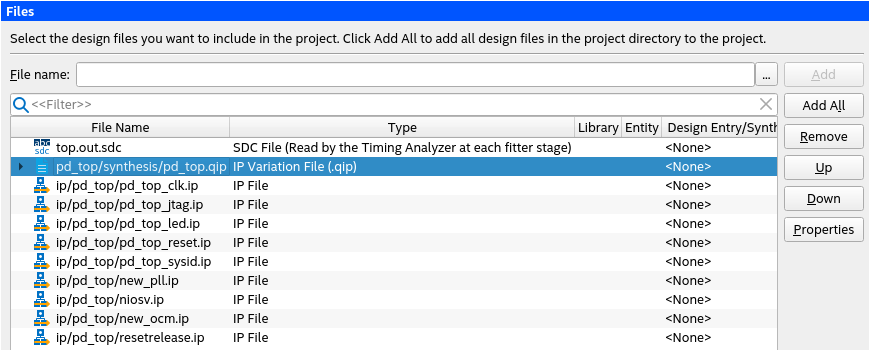

    Figure 31. Files Dialog
  3. Click Apply.
  4. Click OK. The IP Upgrade Required sign disappears.
  5. Compile the design by clicking Processing > Start Compilation. Compilation might take about 10 minutes to complete. Once the compilation ends, you have successfully completed the design migration from Cyclone® V to the Agilex™ 5 device.
