1. Bare Metal User Guide

1.5. Bare Metal Development Flow

Developing SoC based Bare Metal applications involve dependencies from the FPGA generated design tools and use of the Altera SoC EDS packaged tools for building and debugging the application.

A typical Bare Metal Development flow is shown below:

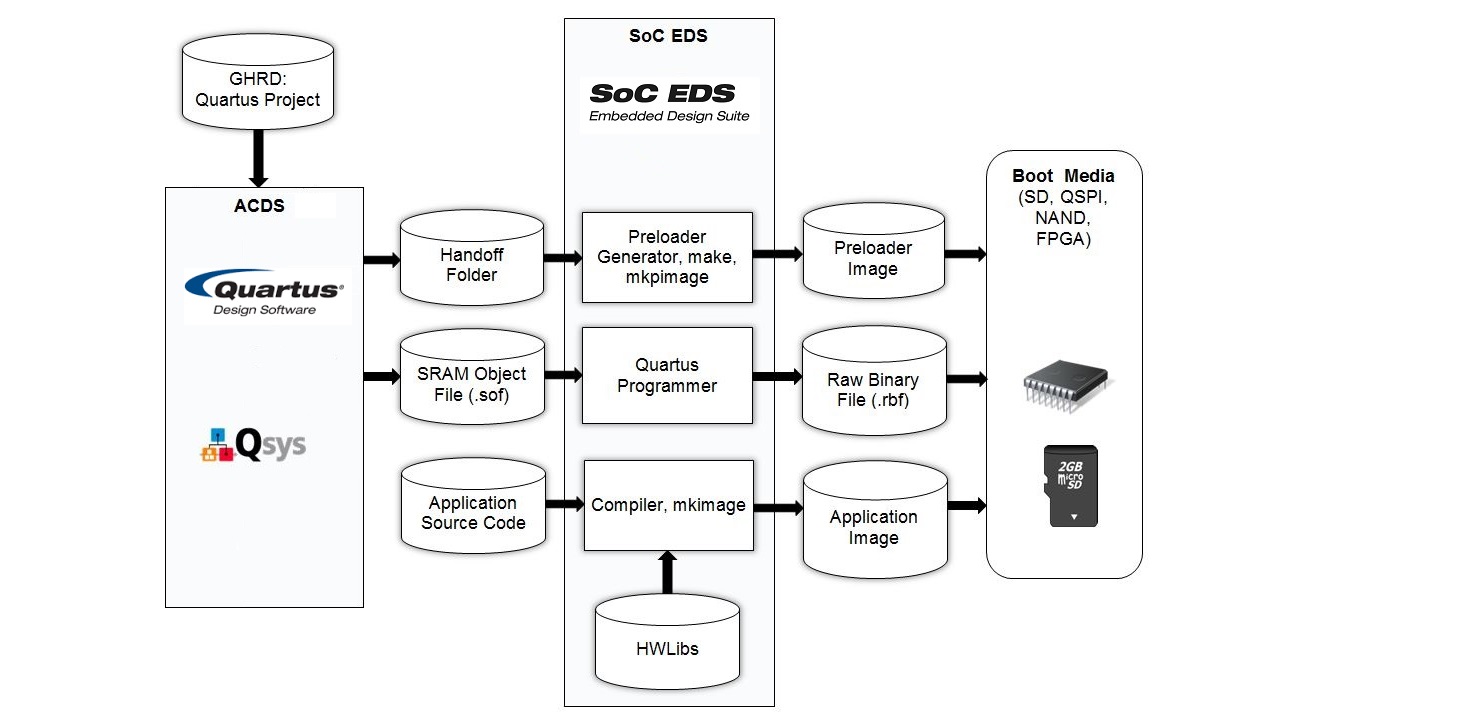

Figure 5. Typical Bare Metal Flow
