1. Bare Metal User Guide

1.8.1.2.1.1. ARM Assembler Settings

Change the settings in “Target” to match the following:

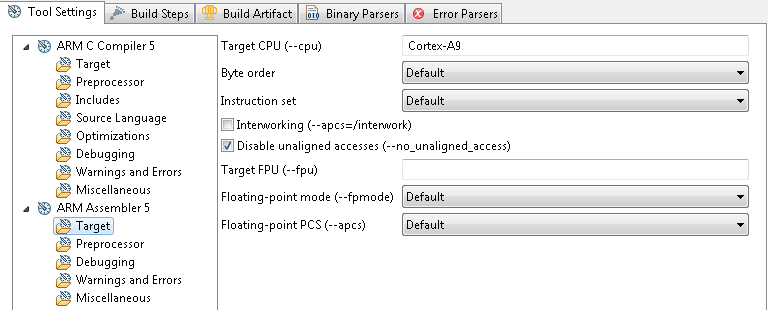

Figure 60. ARM Assembler Target Settings
