5.5. Generating the Design Example

An automated design example flow is available for Agilex™ 5 MIPI D-PHY IP.

The Generate Example Designs button allows you to specify and generate the synthesis and simulation design example file sets which you can use to validate your MIPI D-PHY IP. You can generate a design example that matches the MIPI D-PHY IP that you require. You can use the design example to assist your evaluation, or as a starting point for your own system. For successful design example generation, you must enable at least one link by selecting for TX or RX implementation.

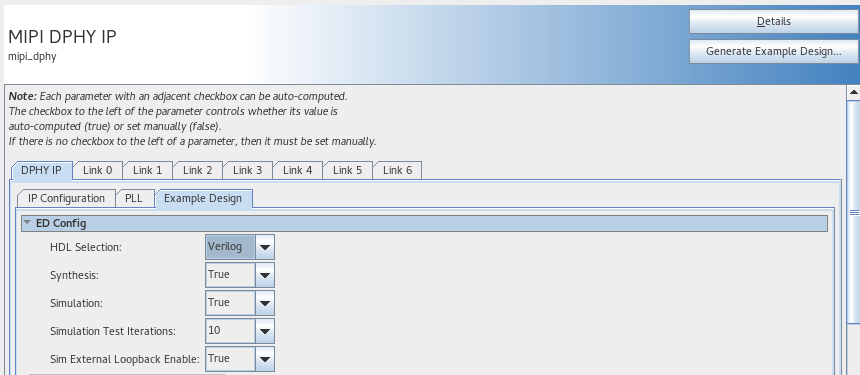

Figure 17. Example Design Tab
Table 17.  Parameter Settings
Parameter Description Setting
HDL Selection Hardware description language (HDL) selection. Verilog or VHDL (default value is Verilog).
Synthesis Generate synthesis design example, which consists of:
  • D-PHY IP
  • PPI traffic generator; 1 for each TX link.
  • PPI pattern checker; 1 for each RX link.
  • JTAG bridge to access CSR registers.
  • Reset release IP.
  • Interconnect blocks.
 True or False. (Default value is True.)
Simulation Generate simulation design example. True or False. (Default value is True.)
Simulation Test Iterations Number of test iteration. 1-1023. (Default value is 10.)
Sim External Loopback Enabled Generation simulation design example with external loopback. True or False. (Default value is True.)

Section Content
Generating the Synthesizable MIPI D-PHY Design Example
Generating MIPI D-PHY IP Design Example with External Loopback Enabled for Simulation
