11.5.4.2. Rerunning the Test Engine

You can use the debug toolkit to rerun the test engine.

To rerun the test engine, follow these steps:

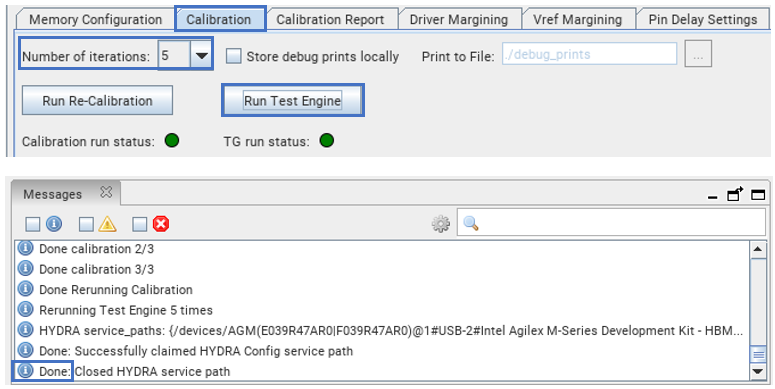

  1. Select the desired number of iterations that you want to rerun the test engine from the Number of Iterations pulldown menu.
  2. Click Run Test Engine to rerun the traffic generator with each iteration. A Done status on the Messages window indicates a complete run.

    A green dot in the Calibration run status indicator signifies a pass for all iterations of the test engine, while a red dot indicates a failure in at least one iteration.
