7.6.8.4. Example of a DDR5 layout on an Altera FPGA Platform Board

The following figure shows the layout example of a DDR5 x32 plus 8x ECC (3x DRAM Dual-Die Memory Down).

The DDR5 Data signal routing is on upper layers to avoid vertical crosstalk and achieve high performance; the CS/CTRL signals can be routed on deeper layers.

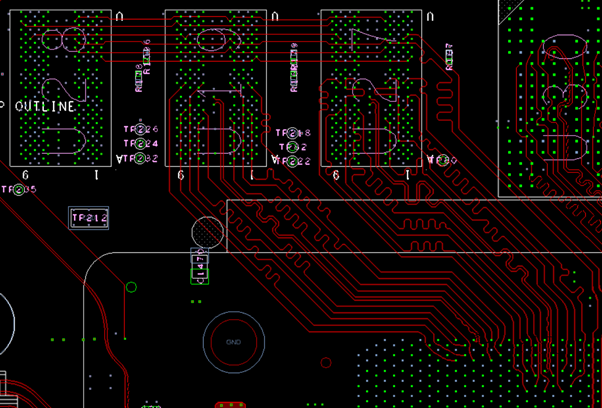

Figure 45. DDR5 32bits+ 8x bits ECC (3 x DRAMs Dual Die) PCB routing on an Altera FPGA Platform Board with thick stackup
