11.5.4.4. Calibration Reports

Calibration reports provide detailed information about the margins observed during calibration and the settings applied on the calibration bus during calibration.

To view the margins, click on the respective section for Address/Command, CS, DQ, DQS, DM_DBI, VREF Settings or VREF_GROUP Settings.

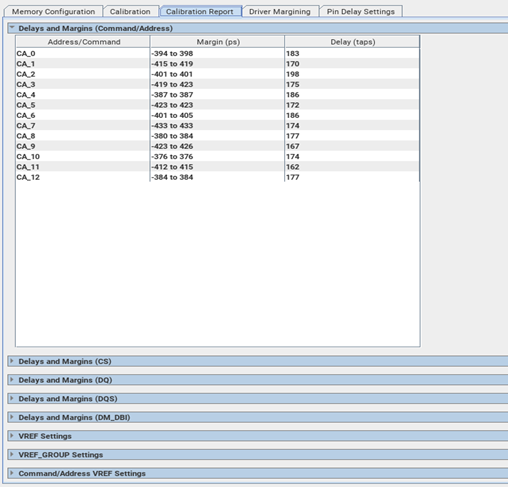

Figure 65. Calibration Report Tab
