8.5.5. DRAM Break-in Layout Guidelines

For discrete DRAM components on PCB, you can use either the dog-bone or via in pad at the DRAM for the signal transition from inner layer to DRAM.

If you use dog-bone via transitions, you should separate them with larger pitch, to avoid crosstalk between the signal vias.

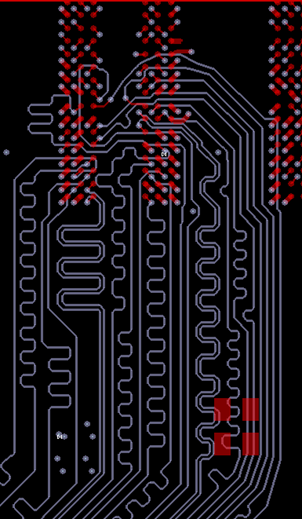

Figure 53. Data Signal Group Routing on PCB to Memory Down Configuration
Level Two Title
