4.3. Version Selector

The BTS prompts you with a Version Selector window once opened. You can also open the Version Selector window through the Configure tab by clicking Select Silicon Version. Select the silicon version of the Arria® 10 device that is installed on your board.

Figure 12. Configure Tab Version Selector Option
Figure 13. Version Selector

If you do not know, or are unsure of the version, enter the board serial number in the box on the right and the software will pick the right version based on the table below. The numbers here are the last 3-4 digits of the serial number which can be found on the bottom of your board.

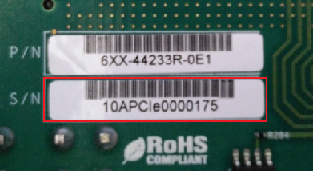

Figure 14. Board Serial Number Sticker
Table 13.  Serial Number to Arria® 10 Silicon Revision
Serial Number Arria® 10 Silicon Revision
10APCIe000[< 0332] ES2
10APCIe000[0332 – 0383] PRD-1
10APCIe000[0500 – 0999] ES3
10APCIe000[1000+] PRD
10APCIe200[0000+] PRD2
