2.4. Simulating the Design Example

Figure 8. Procedure
  1. Change to the testbench simulation directory, pcie_example_design_tb.
  2. Run the simulation script for the simulator of your choice. Refer to the table below.
  3. Analyze the results.
Table 8.  Steps to Run Simulation
Simulator Working Directory Instructions
Questa Intel FPGA Edition <example_design>/pcie_example_design_tb/pcie_example_design_tb/sim/mentor/
  1. Invoke vsim (by typing vsim, which brings up a console window where you can run the following commands).
  2. do msim_setup.tcl
    Note: Alternatively, instead of doing Steps 1 and 2, you can type: vsim -c -do msim_setup.tcl.
  3. ld_debug
  4. run -all
  5. A successful simulation ends with the following message, "Simulation stopped due to successful completion!"
ModelSim* <example_design>/pcie_example_design_tb/pcie_example_design_tb/sim/mentor/
  1. Invoke vsim (by typing vsim, which brings up a console window where you can run the following commands).
  2. do msim_setup.tcl
    Note: Alternatively, instead of doing Steps 1 and 2, you can type: vsim -c -do msim_setup.tcl.
  3. ld_debug
  4. run -all
  5. A successful simulation ends with the following message, "Simulation stopped due to successful completion!"
VCS* <example_design>/pcie_example_design_tb/pcie_example_design_tb/sim/synopsys/vcs
  1. sh vcs_setup.sh USER_DEFINED_COMPILE_OPTIONS="" USER_DEFINED_ELAB_OPTIONS="-xlrm\ uniq_prior_final" USER_DEFINED_SIM_OPTIONS=""
  2. A successful simulation ends with the following message, "Simulation stopped due to successful completion!"
NCSim* <example_design>/pcie_example_design_tb/pcie_example_design_tb/sim/cadence
  1. sh ncsim_setup.sh USER_DEFINED_SIM_OPTIONS="" USER_DEFINED_ELAB_OPTIONS ="-timescale\ 1ns/1ps"
  2. A successful simulation ends with the following message, "Simulation stopped due to successful completion!"
Xcelium* Parallel Simulator <example_design>/pcie_example_design_tb/pcie_example_design_tb/sim/xcelium
  1. sh xcelium_setup.sh USER_DEFINED_SIM_OPTIONS="" USER_DEFINED_ELAB_OPTIONS ="-timescale\ 1ns/1ps\ -NOWARN\ CSINFI"
  2. A successful simulation ends with the following message, "Simulation stopped due to successful completion!"
The DMA testbench for the design example completes the following tasks:
  1. Instructs the Read Data Mover to fetch the descriptors for the DMA Read operation from the PCI Express* system memory.
  2. The Read Data Mover reads the data from the PCI Express* system memory, and writes the data to the memory in Avalon® -MM address space according to the descriptors fetched in Step 1.
  3. Instructs the Read Data Mover to fetch the descriptors for the DMA Write operation from the PCI Express* system memory.
  4. The Write Data Mover reads the data from the memory in the Avalon® -MM address space, and writes the data to the PCI Express* system memory according to the descriptors fetched in Step 3.
  5. Compares the source data read from system memory in Step 2 to the data written back to the system memory in Step 4.

The simulation reports, "Simulation stopped due to successful completion" if no errors occur.

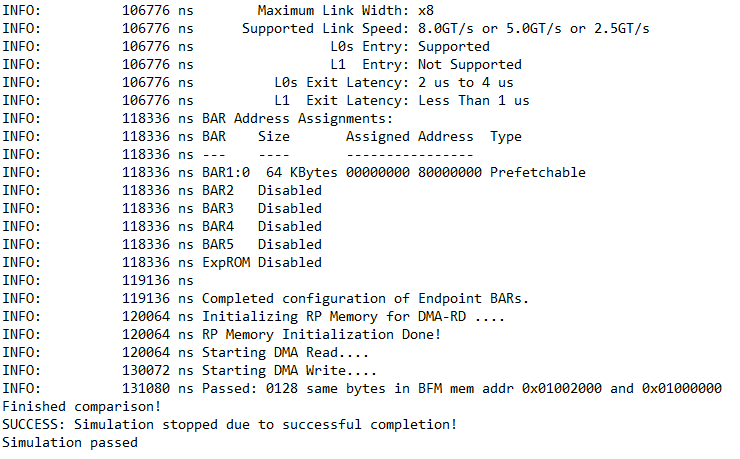

Figure 9. Partial Transcript from Successful Simulation Testbench
