2.7. Running the Design Example Application

  1. Navigate to ./software/user/example under the design example directory.
  2. Compile the design example application:
    $ make
  3. Run the test:

    $ sudo ./intel_fpga_pcie_link_test

    You can run the Intel® FPGA IP PCIe* link test in manual or automatic mode.

    • In automatic mode, the application automatically selects the device. The test selects the Stratix® 10 PCIe* device with the lowest BDF by matching the Vendor ID. The test also selects the lowest available BAR.
    • In manual mode, the test queries you for the bus, device, and function number and BAR.
    For the Stratix® 10-GX Development Kit, you can determine the BDF by typing the following command:

    $ lspci -d 1172

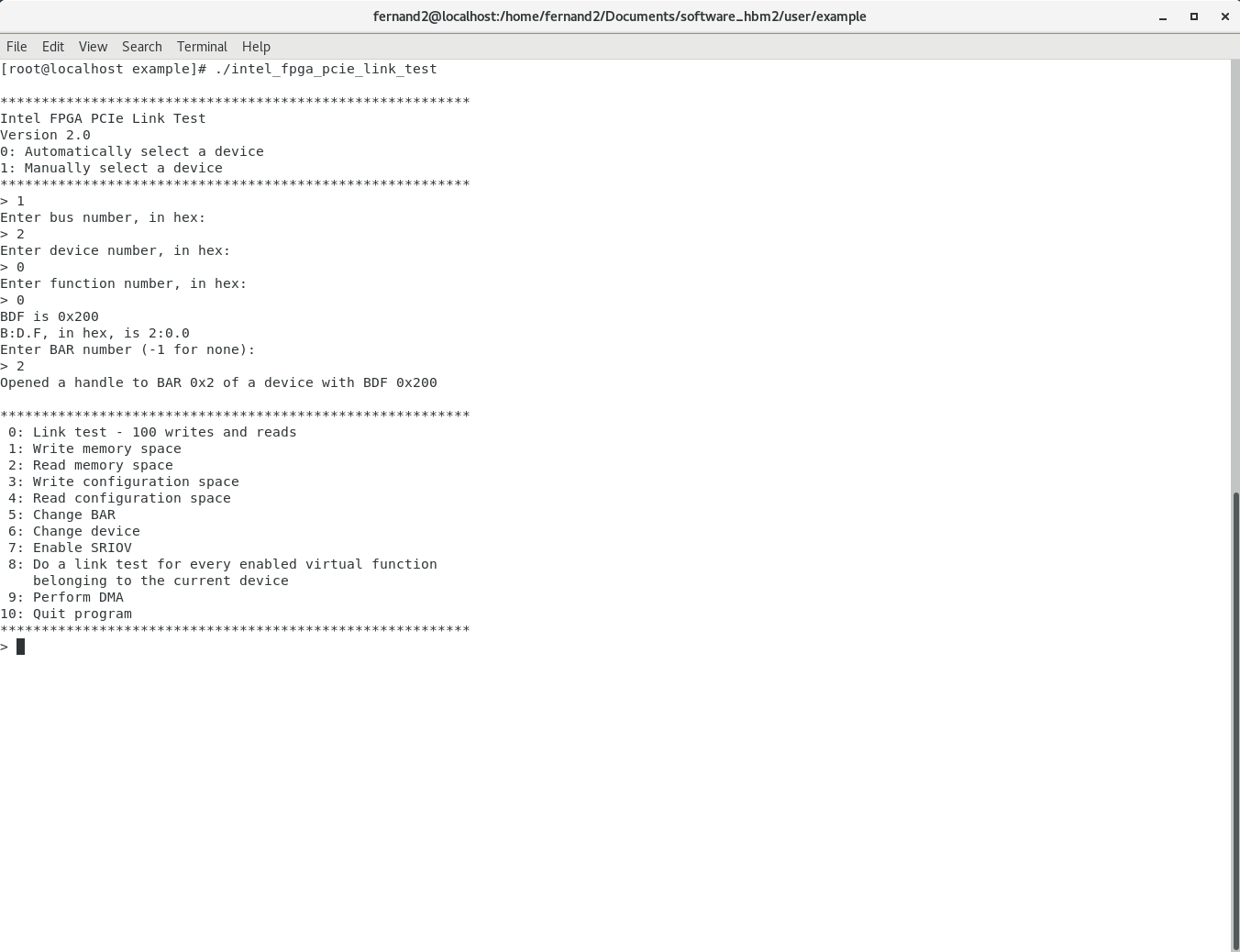

  4. Here is a sample transcript for manual mode:
