3.4. Compiling the Example Design in Quartus® Prime

To compile the example design, follow these steps:
  1. Navigate to the design example directory, intel_pcie_mcdma_0_example_design , and open the Quartus® Prime project file, pcie_ed.qpf in Quartus® Prime Pro Edition software.
  2. On the Processing menu, select Start Compilation (use the button circled in green in the image below).

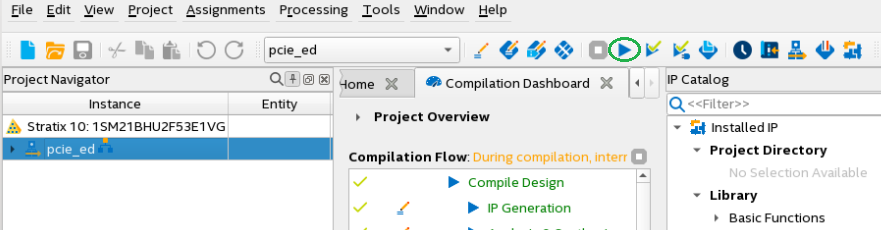

Figure 29. Design Example Compilation
