7.3. Viewing Parameter Settings From the Project Navigator

Starting from the Quartus® Prime Pro Edition software version 23.3, you can view the parameter settings for a module directly from the Project Navigator.

To access the settings, locate the module, right-click and select View Parameter Settings in the context-sensitive menu. Compilation Report appears displaying the parameter settings for the entity, as shown in the following image:

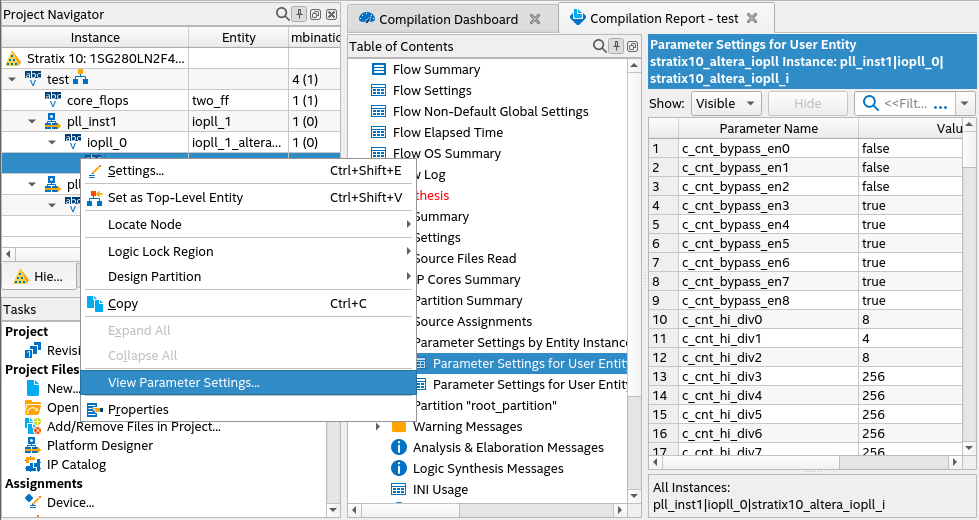

Figure 52. Viewing Parameter Settings
