4.6.2.3.3. Publishing the Package in the System-In-The-Loop Wizard

Procedure

  1. Create a file named boardinfos.xml file in the directory where you copy the dspba_sil_jtag directory.
  2. Before you start MATLAB, set the DSPBA_SIL_BSP_ROOT variable to point to the directory where this file and your custom board is located.

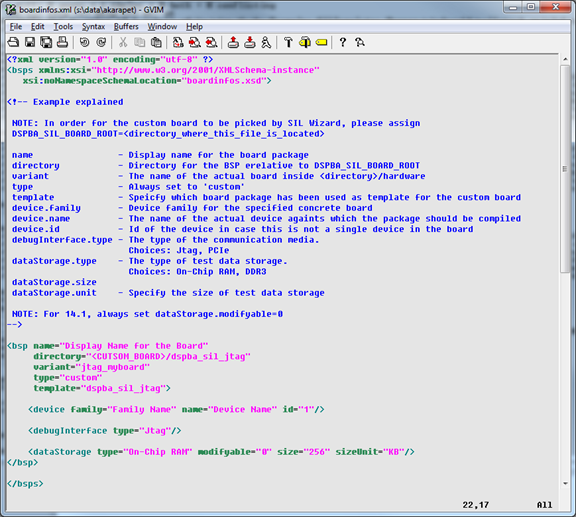

    Figure 30. Boardinfo.xml File Content
