4.6.1.1. Hardware Verification Design Example

DSP Builder design example for off chip source and sink buffers.

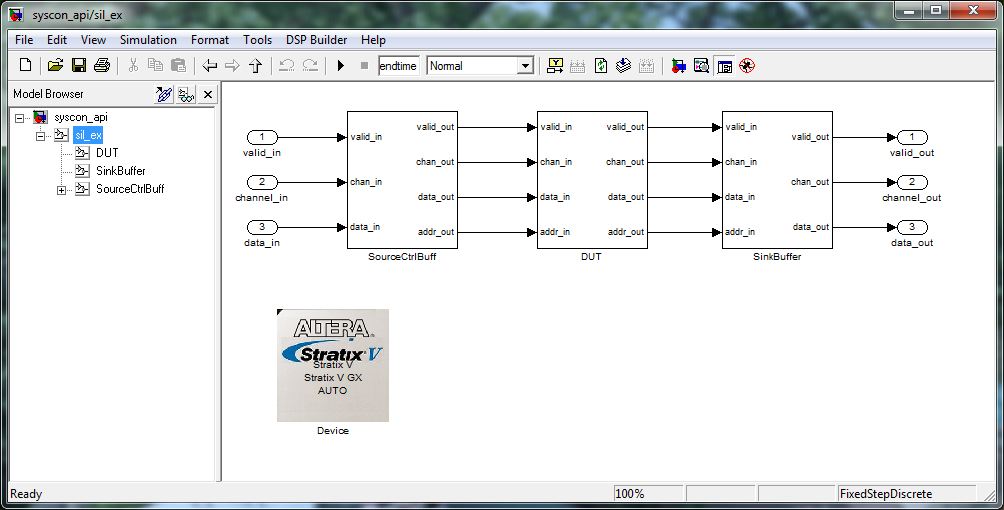

Figure 25. Top-Level SystemShows source and sink buffers and DUT.

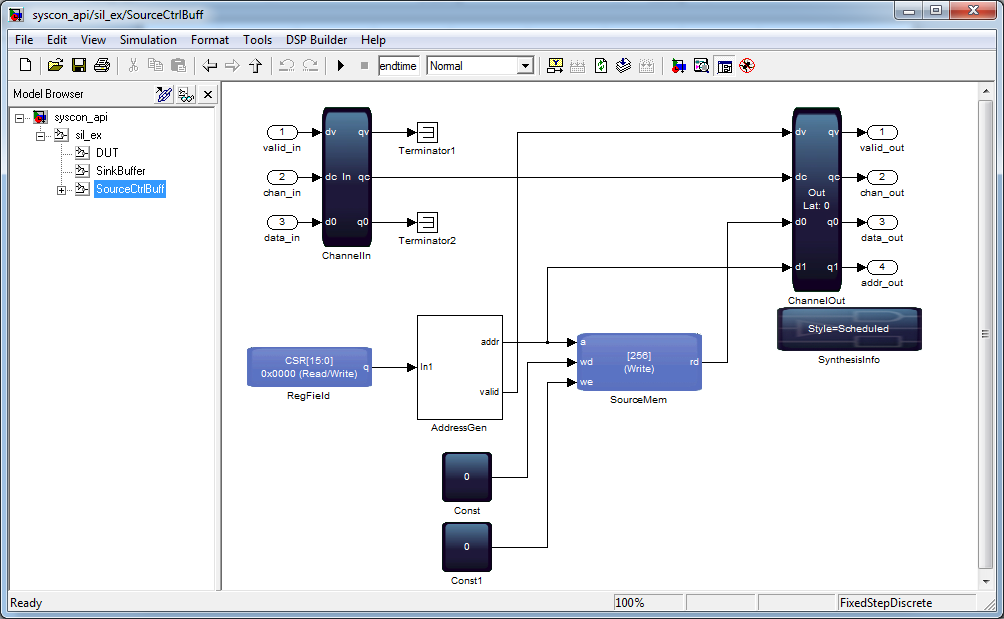

Figure 26. Source Buffer AddressGen block triggers reads from SharedMem to drive DUT input. RegField initiates execution of the AddressGen block from host.
Figure 27. Sink Buffer

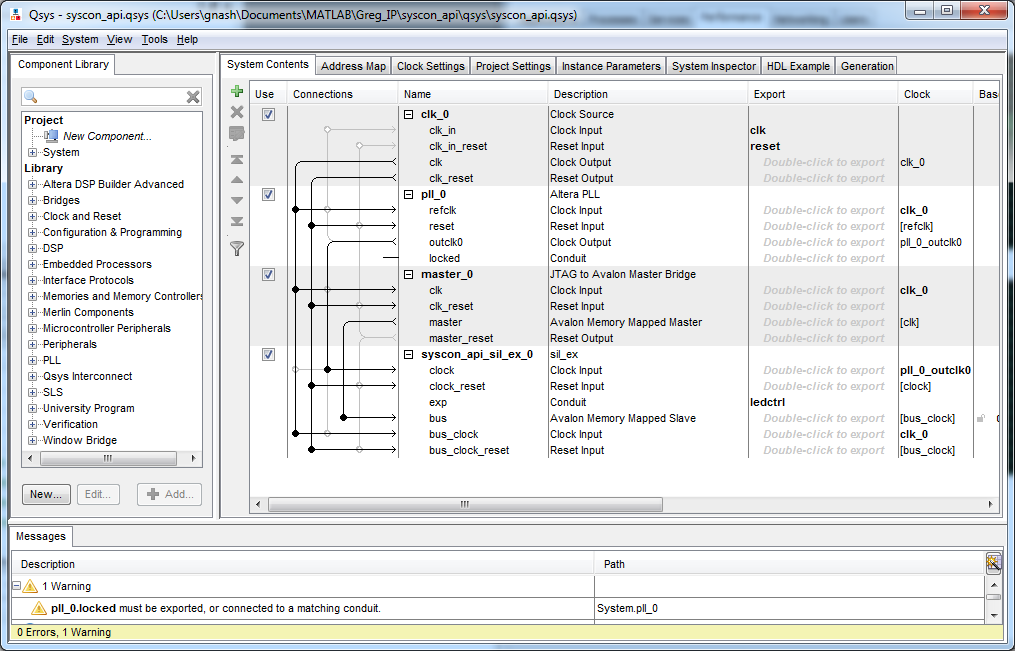

Figure 28.  Platform Designer System master_0 is the instance of JTAG debug master. syscon_api_sil_ex_0 is the instance of the top-level DSP Builder system, which contains test buffers.

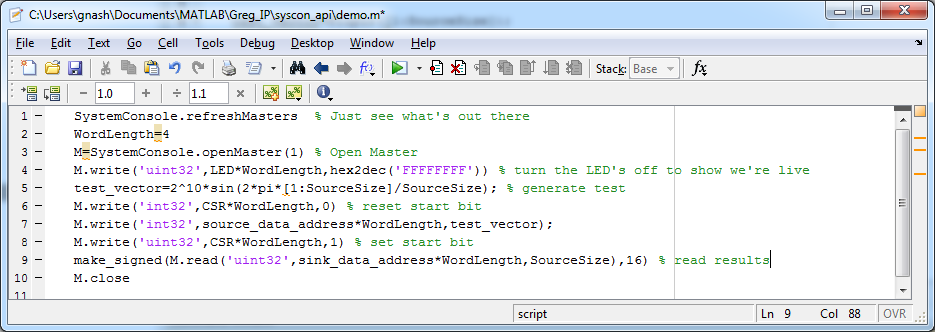

Figure 29. MATLAB API
