49.2. Vignette Correction IP Parameters
The IP offers run-time and compile-time parameters.
Parameter | Values | Description |
---|---|---|
Video Data Format | ||
Lite mode | On | The IP only supports lite mode |
Input bits per color sample | 8 to 16 | Select the number of input bits per color sample. |
Output bits per color sample | 8 to 16 | Select the number of output bits per color sample. |
CFA enable | On or off | Turn on to support 2x2 color filter array mapped to 1 color plane per pixel. Turn off to support simple 1 color plane and multiple color panes per pixel. |
Number of color planes processed per pixel | 1 to 4 | Number of color planes processed per pixel. When CFA enable is on, this parameter is 1. Otherwise, you may select any valid value within the range. |
Number of pixels in parallel | 1, 2, 4, or 8 | Select the number of pixels in parallel. |
Maximum Frame Size | ||
Maximum field height | 1k, 2k, 4k, 8k, 16k | Specify the maximum height of incoming frames |
Maximum field width | 2k, 4k, 8k, 16k | Specify the maximum width of incoming frames |
Control Parameters | ||
Maximum number of correction mesh points | 1024, 2048, 4096 | Limits the maximum number of correction mesh points. The IP supports arbitrary V x H rectangular correction meshes, where valid values of V and H range from 8 to 512 in 1 step increments. You must set this parameter to more than or equal to the mesh size V x H you intend to use. You program the values of V and H during runtime via the control interface. |
Independent color plane correction mesh gain coefficients | On or Off | Turn on to for independent coefficient meshes for each color channel when CFA enable is on or off. All color channels share a single set of mesh coefficients when off. |
General | ||
Pipeline ready signal | On or off | Turn on to add extra pipeline registers to the AXI4-S tready signals |
Separate clock for control interface | On or off | Turn on for a separate clock for the control agent interface |
Debug features | On or off | Turn on to read back frame information registers and debugging information registers via the control agent interface. |

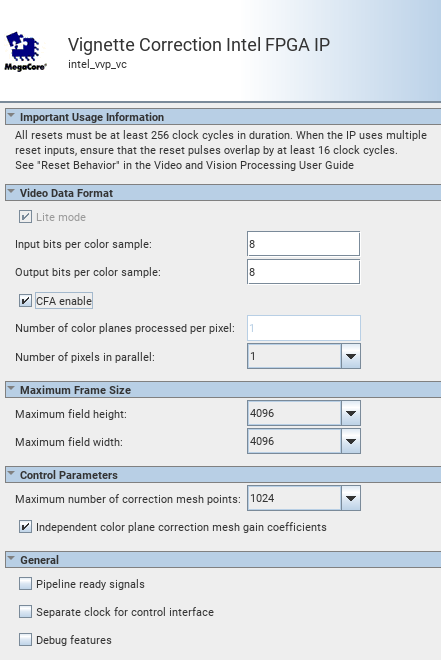

Figure 124. Vignette Correction IP GUI
