40.2. TMO IP Parameters
The IP offers compile-time and run-time parameters
Name | Values | Description |
---|---|---|
Video Configuration | ||
Number of pixels in parallel |
1, 2, 4 | Number of pixels/samples in parallel |
Number of color planes |
3 | Number of color planes (4:4:4 RGB video) |
Bits per color sample |
8, 10, 12 | Number of bits per pixels/samples |
For more information on the run-time parameters refer to TMO IP Registers.

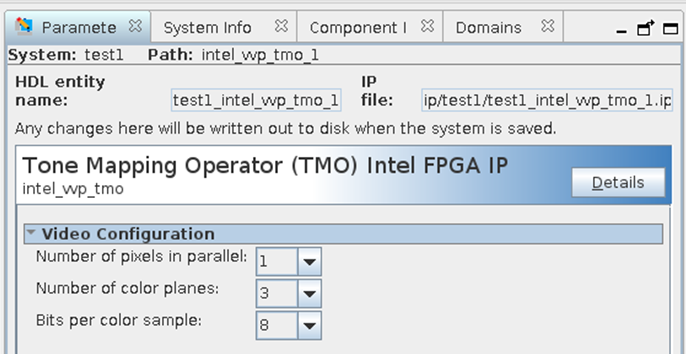

Figure 102. TMO IP GUI
![](/content/dam/docs/us/en/683329/24-1/fxc1625063122736.png)
