42.2. Unsharp Mask IP Parameters
The IP offers compile-time parameters. Set these from the GUI in Platform Designer. Set the maximum frame width and heights to the largest frame size you need the IP to process and no greater, to avoid consuming unnecessary FPGA resources.
Parameter | Values | Description |
---|---|---|
Video Data Format | ||
Bits per color sample | 8 to 10 | Select the number of bits per color sample. |
Number of pixels in parallel | 1, 2, 4 and 8 | Select the number of pixels in parallel. |
Maximum Frame Size | ||
Maximum frame height | 1024 to 16384 | Select the maximum height of frames. The IP crops taller input frames to this height. |
Maximum frame width | 1024 to 16384 | Select the maximum width of frames. The IP crops wider input frames wider to this width. |
Control | ||
Separate clock for control interface | On or off | Turn on for a separate clock for the control interface. |
Debug features | On or off | Turn on for debugging features. |

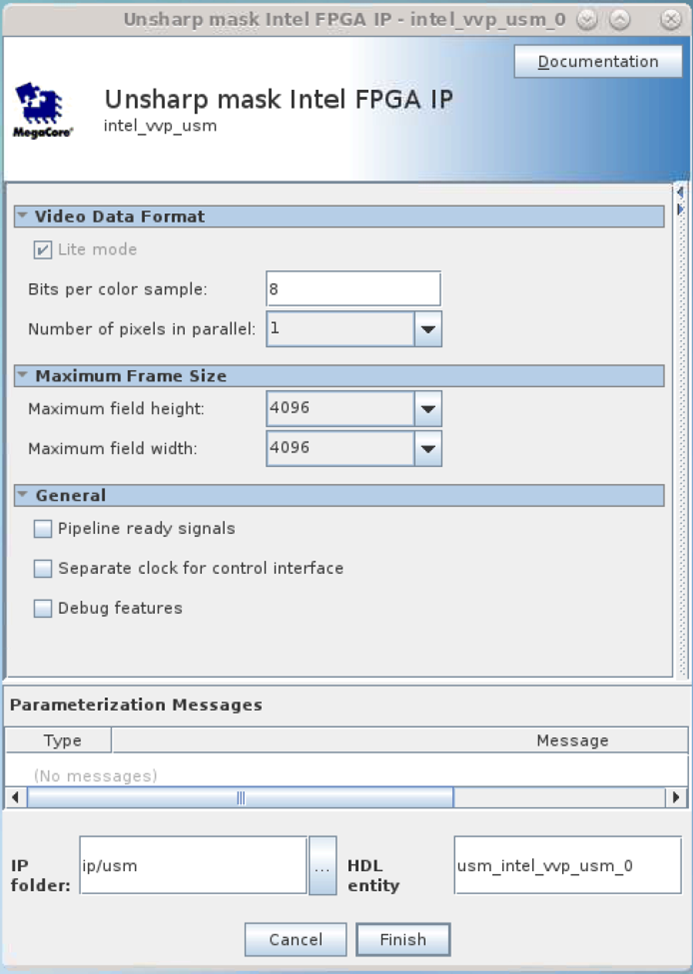

Figure 108. Unsharp Mask IP GUI
