17.3. Clocked Video Input IP Parameters
The IP offers compile-time parameters.
Parameter | Values | Description |
---|---|---|
Video Format | ||
Bits per color sample | 8 to 16 | Select the number of bits per color sample at the input |
Number of pixels in parallel | 1 to 8 | Select the number of pixels transmitted every clock cycle. |
Number of color planes | 1 to 4 | Select the number of color planes per pixel |
General Settings | ||
AXI4-S FR interface TREADY | True or false | Enable the TREADY signal as part of the full-raster interface |
Output video line buffer depth | 1024, 2048, 4096, 8192, 16384, 32768 | Select the maximum depth of the output video line buffer |
Output frame cleaner | True or false | Enable the output frame cleaner logic |
Debug Information | ||
Video telemetrics information | True or false | Enable the video telemetrics information logic |
Frames per second counter | True or false | Enable the frames per second counter logic |
Output clock frequency | 1 to 1000000000 | Select the output clock frequency in Hz |

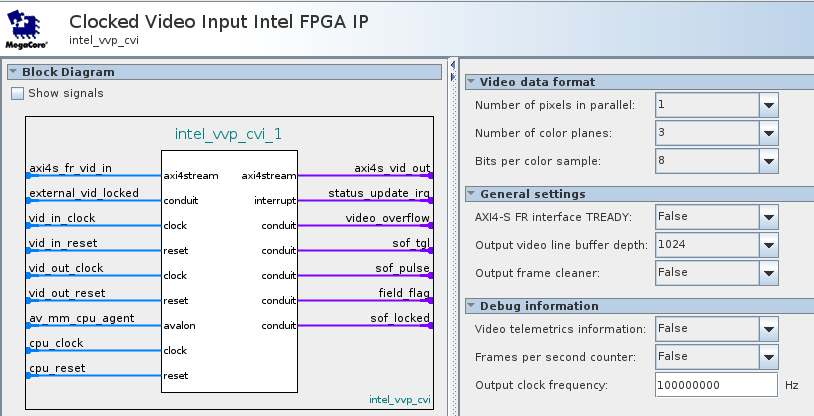

Figure 35. Clocked Video Input IP GUI
