Intel® Stratix® 10 Device Datasheet

HBM2 Interface Performance

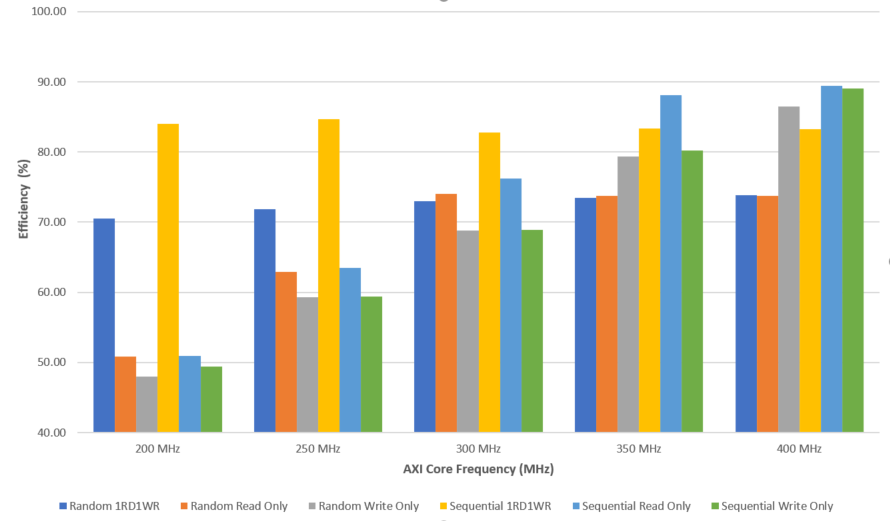

Figure 4. HBM2 Performance in a 4GB4H HBM2 Device (64B access)
Figure 5. HBM2 Performance in a 8GB8H HBM2 Device (64B access)
Note: These graphs show the Efficiency information for the HBM2 interface running at 800 MHz in an Intel® Stratix® 10 MX, NX, and DX 2100 device with –2 Speed Grade using 64B access, with the re-order buffer turned off and different AXI Transaction IDs enabled.
