PR Freeze Bridge
A freeze bridge is designed for a specific interface, such as Avalon-MM or AXI. The Intel® partial reconfiguration freeze bridge, provided with the Qsys Pro tools, is shown below. It is an example Avalon-MM freeze bridge.

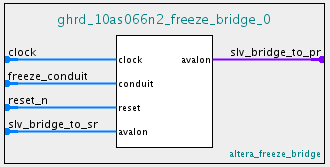

Figure 3. Partial Reconfiguration Freeze Bridge
