?sytrf_rook

Computes the bounded Bunch-Kaufman factorization of a symmetric matrix.

Syntax

call ssytrf_rook( uplo, n, a, lda, ipiv, work, lwork, info )

call dsytrf_rook( uplo, n, a, lda, ipiv, work, lwork, info )

call csytrf_rook( uplo, n, a, lda, ipiv, work, lwork, info )

call zsytrf_rook( uplo, n, a, lda, ipiv, work, lwork, info )

call sytrf_rook( a [, uplo] [,ipiv] [,info] )

Include Files

mkl.fi, lapack.f90

Description

The routine computes the factorization of a real/complex symmetric matrix A using the bounded Bunch-Kaufman ("rook") diagonal pivoting method. The form of the factorization is:

if uplo='U', A = U*D*U^T
if uplo='L', A = L*D*L^T,

where A is the input matrix, U and L are products of permutation and triangular matrices with unit diagonal (upper triangular for U and lower triangular for L), and D is a symmetric block-diagonal matrix with 1-by-1 and 2-by-2 diagonal blocks. U and L have 2-by-2 unit diagonal blocks corresponding to the 2-by-2 blocks of D.

Input Parameters

uplo	CHARACTER1. Must be 'U' or 'L'. Indicates whether the upper or lower triangular part of `A` is stored and how `A` is factored: If `uplo = 'U'`, the array `a` stores the upper triangular part of the matrix `A`, and `A` is factored as `UDU^T`. If `uplo = 'L'`, the array `a` stores the lower triangular part of the matrix `A`, and `A` is factored as `LD*L^T`.
n	INTEGER. The order of matrix `A`; `n`≥ 0.
a	REAL for ssytrf_rook DOUBLE PRECISION for dsytrf_rook COMPLEX for csytrf_rook DOUBLE COMPLEX for zsytrf_rook. Array, size `(lda,n)`. The array `a` contains either the upper or the lower triangular part of the matrix `A` (see `uplo`).
lda	INTEGER. The leading dimension of `a`; at least `max(1, n)`.
work	Same type as `a`. A workspace array, dimension at least `max(1,lwork)`.
lwork	INTEGER. The size of the `work` array `(lwork≥n)`. If `lwork = -1`, then a workspace query is assumed; the routine only calculates the optimal size of the `work` array, returns this value as the first entry of the `work` array, and no error message related to `lwork` is issued by xerbla. See ?sytrf Application Notes for the suggested value of `lwork`.

Output Parameters

a	The upper or lower triangular part of `a` is overwritten by details of the block-diagonal matrix `D` and the multipliers used to obtain the factor `U` (or `L`).
`work(1)`	If `info=0`, on exit `work(1)` contains the minimum value of `lwork` required for optimum performance. Use this `lwork` for subsequent runs.
ipiv	INTEGER. Array, size at least `max(1, n)`. Contains details of the interchanges and the block structure of `D`. If `ipiv(k) > 0`, then rows and columns `k` and `ipiv`(`k`) were interchanged and `D`_{k, k} is a 1-by-1 diagonal block. If `uplo = 'U'` and `ipiv(k) < 0` and `ipiv(k - 1) < 0`, then rows and columns `k` and -`ipiv`(`k`) were interchanged, rows and columns `k` - 1 and -`ipiv`(`k` - 1) were interchanged, and `D_{k-1:k, k-1:k}` is a 2-by-2 diagonal block. If `uplo = 'L'` and `ipiv(k) < 0` and `ipiv(k + 1) < 0`, then rows and columns `k` and `-ipiv`(`k`) were interchanged, rows and columns `k` + 1 and `-ipiv`(`k` + 1) were interchanged, and `D_{k:k+1, k:k+1}` is a 2-by-2 diagonal block.
info	INTEGER. If `info = 0`, the execution is successful. If `info = -i`, the `i-`th parameter had an illegal value. If `info = i`, `D_ii` is 0. The factorization has been completed, but `D` is exactly singular. Division by 0 will occur if you use `D` for solving a system of linear equations.

LAPACK 95 Interface Notes

Routines in Fortran 95 interface have fewer arguments in the calling sequence than their FORTRAN 77 counterparts. For general conventions applied to skip redundant or reconstructible arguments, see LAPACK 95 Interface Conventions.

Specific details for the routine sytrf_rook interface are as follows:

a	holds the matrix `A` of size (`n`, `n`)
ipiv	holds the vector of length `n`
uplo	must be 'U' or 'L'. The default value is 'U'.

Application Notes

The total number of floating-point operations is approximately (1/3)n³ for real flavors or (4/3)n³ for complex flavors.

After calling this routine, you can call the following routines:

?sytrs_rook	to solve `A*X = B`
?sycon_rook	to estimate the condition number of `A`
?sytri_rook	to compute the inverse of `A`.

If uplo = 'U', then A = U*D*U', where

U = P(n)*U(n)* ... *P(k)*U(k)*...,

that is, U is a product of terms P(k)*U(k), where

k decreases from n to 1 in steps of 1 and 2.
D is a block diagonal matrix with 1-by-1 and 2-by-2 diagonal blocks D(k).
P(k) is a permutation matrix as defined by ipiv(k).

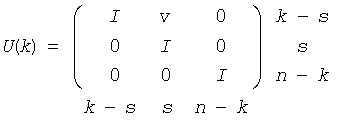

U(k) is a unit upper triangular matrix, such that if the diagonal block D(k) is of order s (s = 1 or 2), then

If s = 1, D(k) overwrites A(k,k), and v overwrites A(1:k-1,k).

If s = 2, the upper triangle of D(k) overwrites A(k-1,k-1), A(k-1,k) and A(k,k), and v overwrites A(1:k-2,k -1:k).

If uplo = 'L', then A = L*D*L', where

L = P(1)*L(1)* ... *P(k)*L(k)*...,

that is, L is a product of terms P(k)*L(k), where

k increases from 1 to n in steps of 1 and 2.
D is a block diagonal matrix with 1-by-1 and 2-by-2 diagonal blocks D(k).
P(k) is a permutation matrix as defined by ipiv(k).
L(k) is a unit lower triangular matrix, such that if the diagonal block D(k) is of order s (s = 1 or 2), then

If s = 1, D(k) overwrites A(k,k), and v overwrites A(k+1:n,k).

If s = 2, the lower triangle of D(k) overwrites A(k,k), A(k+1,k), and A(k+1,k+1), and v overwrites A(k+2:n,k:k+1).

Parent topic: Matrix Factorization: LAPACK Computational Routines
