12.5.4. Using the EMIF Debug Toolkit

The main view of the EMIF Debug Toolkit contains the Memory Configuration, Calibration, Calibration Report, Driver Margining, VREF Margining, and Pin Delay Settings tabs.

Memory Configuration Tab

The Memory Configuration tab shows the IP settings, which you defined when you parameterized the EMIF IP.

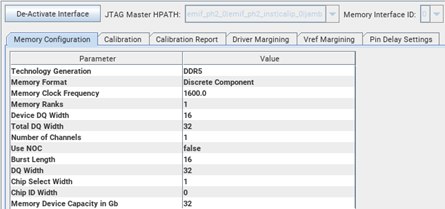

Figure 27. Memory Configuration Tab

Calibration Tab

The Calibration tab allows you to run re-calibration and the test engine.


Section Content
Running Re-Calibration
Running the Test Engine
