12.5.4.1. Running Re-Calibration

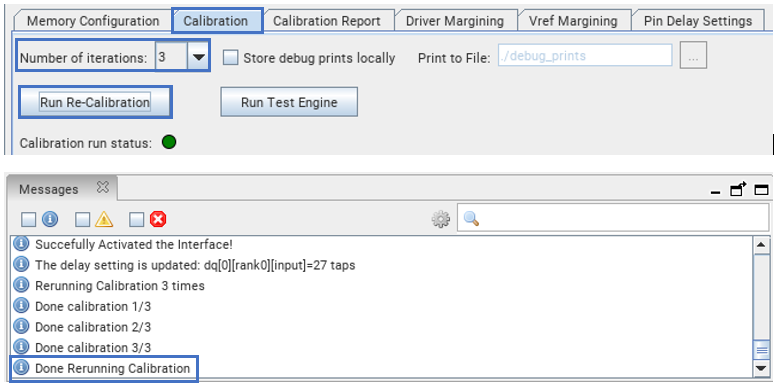

The Calibration tab lets you specify a number of iterations by which to rerun calibration.

To rerun calibration, follow these steps:

  1. Select the desired number of iterations from the Number of Iterations pull-down menu.
  2. Click Run Re-Calibration to repeat calibration the specified number of times. The system reports Done Rerunning Calibration in the Messages window upon completion.

    A green dot in the Calibration run status indicator signifies that the calibration passed for all the iterations, while a red dot indicates that the calibration failed in at least one of the iterations.

Note: For multichannel interfaces, recalibrating an interface resets all channels associated with that EMIF.
