2.2. Agilex™ 5 EMIF IP Design Flow

Altera recommends creating an example top-level file with the desired pin outs and all interface IPs instantiated. This enables the Quartus® Prime software to validate the design and resource allocation before PCB and schematic sign off.

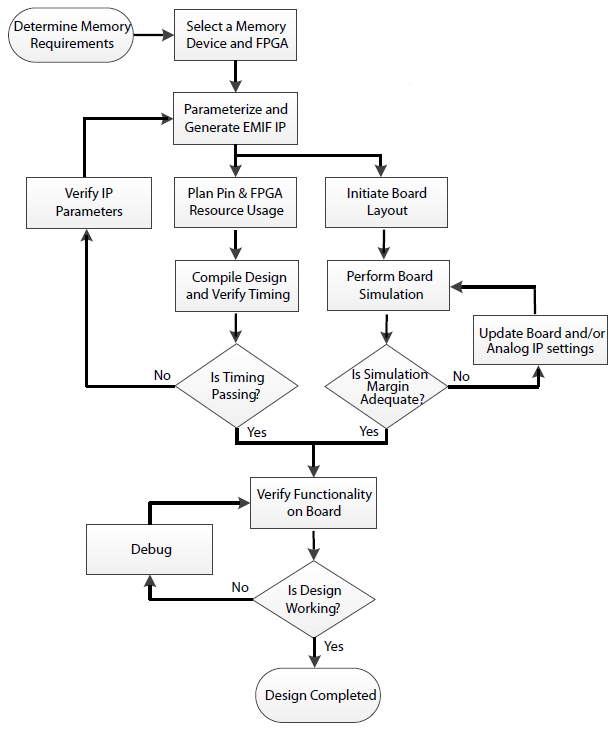

The following figure shows the design flow to provide the fastest out-of-the-box experience with the EMIF IP.

Figure 1. EMIF IP Design Flow

Section Content
Agilex 5 EMIF IP Design Checklist
