2.4.1. Testbench

The generated example testbench is dynamic and has the same configuration as the IP. The testbench also generates an external transceiver ATX PLL for both duplex and simplex directions.

Note: The Stratix® 10 example testbench includes the external transceiver PLL; the IP core does not include the transceiver PLL for these devices.
Figure 15. Serial Lite III Streaming Example Testbench (Duplex) for Stratix® 10 H-tile and L-tile Standard Clocking Mode
Figure 16. Serial Lite III Streaming Example Testbench (Simplex) for Stratix® 10 H-tile and L-tile Standard Clocking Mode

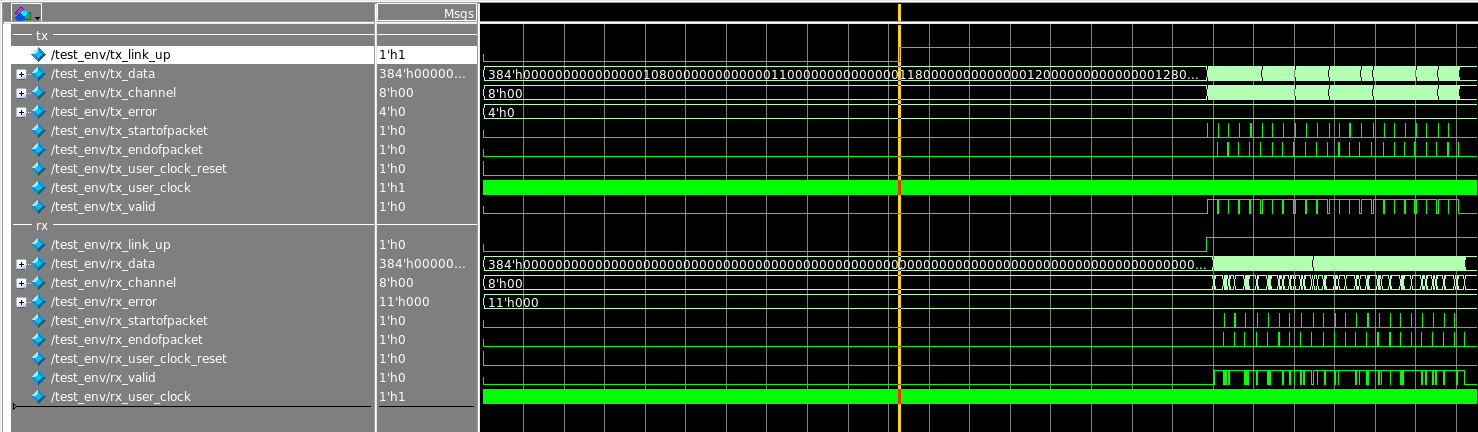

Figure 17. Simulation Waveform
