Graphics Trace Analyzer Window: Open Trace Capture
Use the Open Trace Capture window to select and open your trace file.
To access the Open Trace Capture window, in the Intel® GPA context menu, select Graphics Trace Analyzer. On Windows* OS, if you opted to enable context menu entries during installation, you can also open trace files using the Windows context menu.
Trace Capture Thumbnails pane Select the trace capture you want to debug. By default, this field lists all trace captures located in your Intel GPA home directory: %USERPROFILE%\Documents\GPA (Windows* OS) or ~/GPA (Ubuntu*). You can sort the trace captures by name or date with the Sort by button. If there are no trace captures on your system, these toggle buttons are hidden. The currently selected trace capture is highlighted with blue borders and appears in the trace preview pane. Trace file thumbnails are marked with the icon. If the captured trace data is invalid, the thumbnail is marked with the icon. To delete captured traces, hover the mouse pointer over a trace thumbnail and click the Close button in the top right-hand corner of the thumbnail. Confirm your choice by clicking Yes on the thumbnail. |
|
Preview pane Preview the selected trace captures. This field shows the buffer image and the following trace capture properties:
To rename the selected trace capture, you can click its filename and enter a new value. Click Open, to open the selected trace in the Platform View. Click the Show in Folder button to open the storage directory of the selected trace. |
|
Message pane View the Intel GPA messages or notifications. |
Type filter expression field |
Filter the displayed trace capture files by typing in a part of the trace file name. |
Run Graphics Monitor button | Click to capture new traces with Graphics Monitor. |
Settings button |

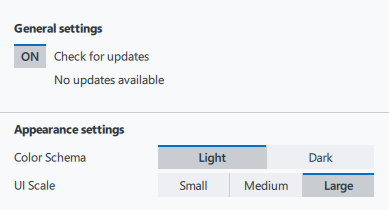

Manage Graphics Trace Analyzer settings:
|
Help button |
Open Intel GPA online documentation. |
