7.1. Generating the IP Core

You can use the Quartus® Prime Pro Edition IP Catalog or Platform Designer to define and generate a Multi Channel DMA IP for PCI Express custom component.

Follow the steps shown in the figure below to generate a custom Multi Channel DMA IP for PCI Express component.

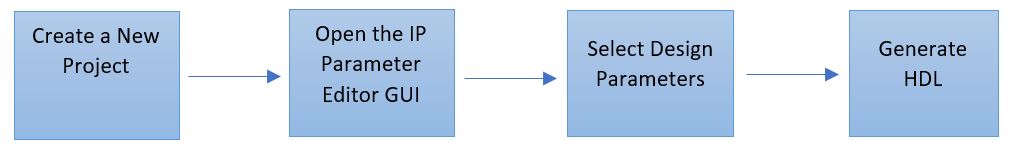

Figure 40. IP Generation Flowchart

You can select Multi Channel DMA IP for PCI Express in the Quartus® Prime Pro Edition IP Catalog or Platform Designer as shown below.

Figure 41.  Quartus® Prime Pro Edition IP Catalog (with filter applied)
Figure 42.  Quartus® Prime Pro Edition IP Catalog (with filter applied)
Figure 43.  Platform Designer IP Catalog (with filter applied)
