5.3.3. Avalon® Streaming Credit Multiplexer

The Avalon® Streaming Credit Multiplexer allows multiple sources to access a single sink.

The Avalon® Streaming Credit Multiplexer:

  • Supports round-robin arbitration.
  • Receives credits from the sink, and ensures credits supplied to sources are independent.
  • Implements separate credit management logic on both source and sink interfaces.
  • Maintains packet integrity from a source.
  • Is available as the Avalon Streaming Credit Multiplexer Intel FPGA IP from the Platform Designer IP Catalog.

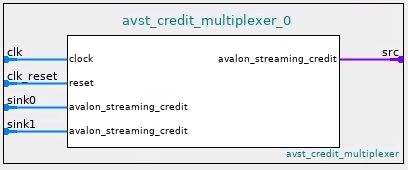

Figure 225.  Avalon® Streaming Credit Multiplexer
