5.3.2.4. Avalon® Streaming Ready to Credit Adapter

The Avalon® Streaming Ready to Credit Adapter facilitates connectivity between an Avalon® Streaming sink and an Avalon® Streaming Credit source.

The Avalon® Streaming Ready to Credit adapter:

  • Outputs credits on the Avalon® Streaming Credit sink interface.
  • Outputs data on the Avalon® Streaming source interface
  • Accepts ready and asserts valid on the Avalon® Streaming source interface.
  • Supports the readyLatency property on the Avalon® Streaming sink interface.
  • Is available as the Avalon Streaming Ready to Credit Intel FPGA IP from the Platform Designer IP Catalog.

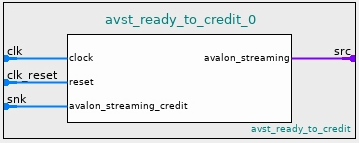

Figure 221.  Avalon® Streaming Ready to Credit Adapter
