6.6.4.5. Channel Parameters

The Channel Parameters window allows you to read the transmitter and receiver settings for a given channel. It has the following 4 sub-windows.
  • General PHY
  • Tx Path
  • Rx Path
  • Lane Margining

Use the Lane Refresh button to read the status of the General PHY, TX Path, and RX Path sub-windows for each channel.

Note:
The Channel Parameters tab is only available in the following OPNs:
  • AGIx027R29AxxxxR2
  • AGIx027R29AxxxxR3
  • AGIx027R29BxxxxR3
  • AGIx023R18AxxxxR0
  • AGIx041R29DxxxxR0
  • AGIx041R29DxxxxR1
For additional details on OPN decoding, refer to the Available Options section of the Intel Agilex® 7 FPGAs and SoCs Device Overview.
Note: To refresh channel parameters for more than one lane simultaneously, select the lanes under the Collection tab, right click and select Refresh.
Note: The per-lane information under the Channel Parameters tab corresponds to the physical lanes.

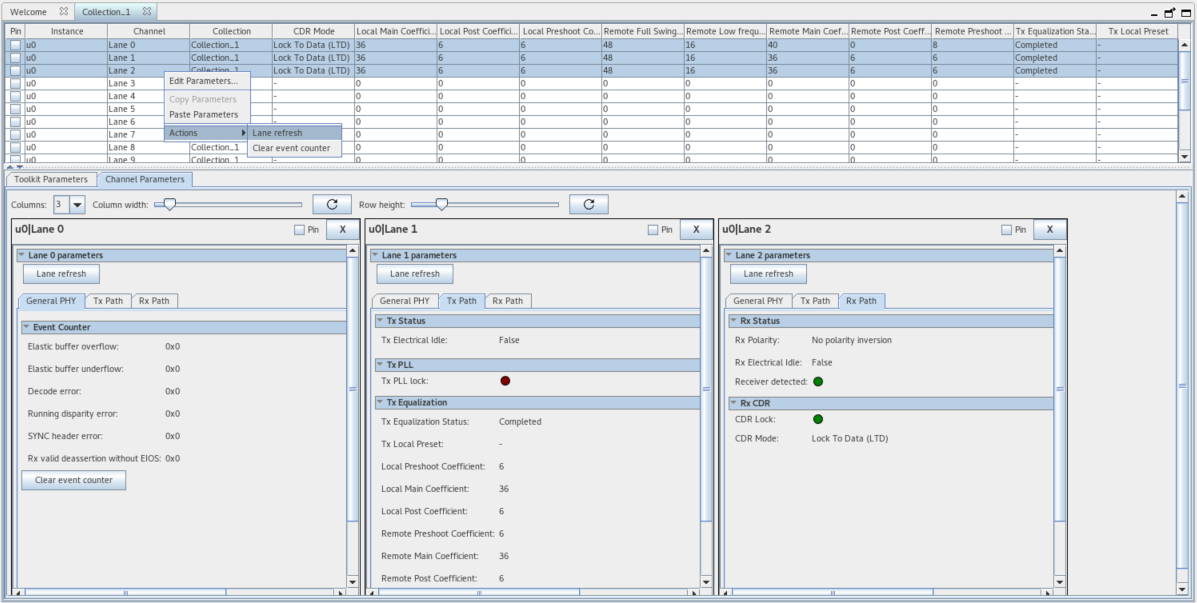

Figure 68.  Channel Parameters Tab Showing 3 Lanes Selected with the Menu to be Refreshed
