4.7.2.2. Creating Configuration Files Using Graphical Interface

The following example creates the AVST configuration files for HPS boot first mode using the Programming File Generator in GUI mode:

  1. Start the Programming File Generator mode by running the qpfgw command.
  2. Select the Device Family to be Agilex™ 7.
  3. Select the Configuration mode to be AVST x8, AVST x16 or AVST x32.
  4. In the Output Files tab:
    1. Change the output file Name to “design”.
    2. Check Raw Binary File for HPS Core Configuration (.rbf) option – the others are grayed out.
    3. Check Raw Binary File for Periphery Configuration (.rbf) sub-option.
    The Quartus® Prime Programming File Generator window is displayed:

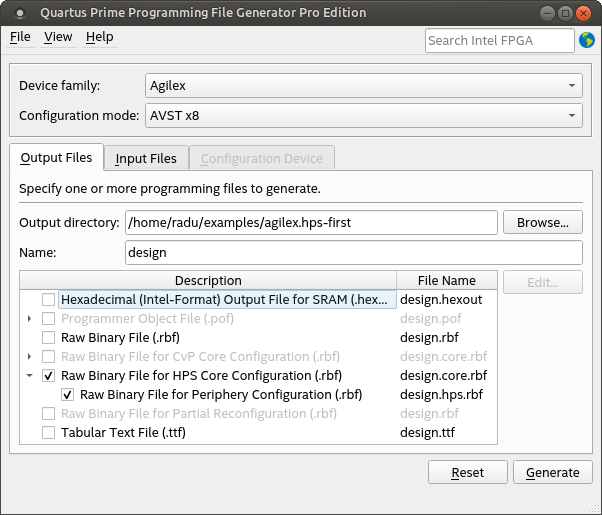

    Figure 26.  Quartus® Prime Programming File Generator Pro Edition Window: Output Files
  5. Switch to Input Files tab by clicking it. In the Input Files tab, do the following:
    1. Click the Add Bitstream button, browse to your SOF file, then click Open.
    2. Click the newly added design.sof file, then click Properties. In the HPS settings > Bootloader section, click the “..” browse button, go to the location of your HPS FSBL hex file, select it and click Open.
    The Quartus® Prime Programming File Generator window is displayed:

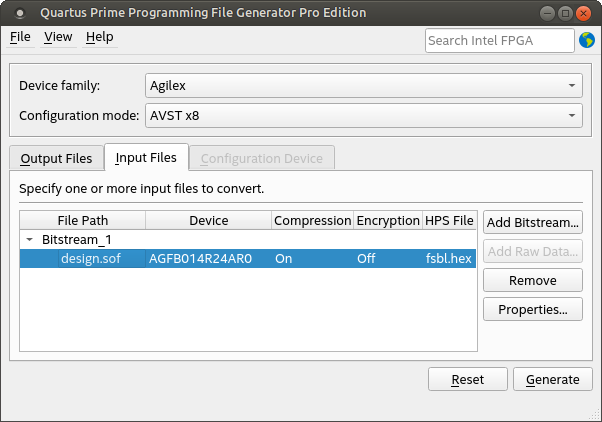

    Figure 27.  Quartus® Prime Programming File Generator Pro Edition Window: Input Files
  6. Click the Generate button. Once the files are generated, a confirmation message is received.
  7. Optionally, go to File > Save or File > Save As to save the configuration in a .pfg file. You can generate the output again by applying the same options by running the command line version of the tool like this: “quartus_pfg -c <filename.pfg>”.
