22.2. Color Plane Manager IP Parameters
The IP offers compile-time parameters. Set these from the GUI in Platform Designer.
Parameter | Values | Description |
---|---|---|
Color plane manager mode | ||
Color plane manager mode | Merge, rearrange, split | Select what you want the IP to do with the color planes. When you select merge, the IP uses input 0 and 1 and output 0. When you select rearrange, the IP uses input 0 and output 0. When you select split, the IP uses input 0 and outputs 0 and 1. |
Color planes configuration | ||
Number of color planes per pixel for input 0 | 1 - 4 | Select the number of color planes for input 0. |
Number of color planes per pixel for input 1 | 1 - 4 | Select the number of color planes for input 1. |
Number of color planes per pixel for output 0 | 1 - 4 | Select the number of color planes for output 0. |
Number of color planes per pixel for output 1 | 1 - 4 | Select the number of color planes for output 1. |
Video data precision | ||
Bits per color plane | 8 to 16 | Select the number of bits per color plane. |
Pixels in parallel | ||
Number of pixels in parallel | 1 - 8 | Select the number of pixels in parallel. |
Rearrange mode configuration | ||
Mapping for output color plane 0 | 0,1,2,3 or padding | Select the required input color plane for output color plane 0. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value. |
Static padding value for output color plane 0 | 0 to 2[bits per color sample] -1 | Set this value if you want to pad this color plane and Memory-mapped control interface is off. |
Mapping for output color plane 1 | 0,1,2,3 or padding | Select the required input color plane for output color plane 1. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value. |
Static padding value for output color plane 1 | 0 to 2[bits per color sample] -1 | Set the padding if you want to pad this color plane and Memory-mapped control interface is off. |
Mapping for output color plane 2 | 0,1,2,3 or padding | Select the required input color plane for output color plane 2. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run time by turning on Memory-mapped control interface, otherwise specify a static value. |
Static padding value for output color plane 2 | 0 to 2[bits per color sample] -1 | Set the value if you want to pad the color plane and Memory-mapped control interface is off.. |
Mapping for output color plane 3 | 0,1,2,3 or padding | Select the required input color plane for output color plane 3. Select padding if you want the IP to pad this color plane with a static value. Change the padding value at run-time by turning on Memory-mapped control interface, otherwise specify a static value. |
Static padding value for output color plane 3 | 0 to 2[bits per color sample] -1 | Set the padding if you want to pad this color plane and Memory-mapped control interface is off. |
Split mode configuration for output 0 | ||
Keep color plane 0 | On or off | Select to keep color plane 0 for output 0. The IP concatenates color planes for the final output. |
Keep color plane 1 | On or off | Turn on to keep color plane 1 for output 0. The IP concatenates color planes for the final output. |
Keep color plane 2 | On or off | Turn on to keep color plane 2 for output 0. The IP concatenates color planes for the final output. |
Keep color plane 3 | On or off | Turn on to keep color plane 3 for output 0 The IP concatenates color planes for the final output. |
Split mode configuration for output 1 | ||
Keep color plane 0 | On or off | Turn on to keep color plane 0 for output 1. The IP concatenates color planes for the final output. |
Keep color plane 1 | On or off | Turn on to keep color plane 1 for output 1. The IP concatenates color planes for the final output. |
Keep color plane 2 | On or off | Turn on to keep color plane 2 for output 1. The IP concatenates color planes for the final output. |
Keep color plane 3 | On or off | Turn on to keep color plane 3 for output 1. The IP concatenates color planes for the final output. |
Merge mode configuration for input 0 | ||
Keep color plane 0 | On or off | Turn on to keep color plane 0 from input 0. The IP concatenates color planes for the final output. |
Keep color plane 1 | On or off | Turn on to keep color plane 1 from input 0. The IP concatenates color planes for the final output. |
Keep color plane 2 | On or off | Turn on to keep color plane 2 from input 0. The IP concatenates color planes for the final output. |
Keep color plane 3 | On or off | Turn on to keep color plane 3 from input 0. The IP concatenates color planes for the final output. |
Merge mode configuration for input 1 | ||
Keep color plane 0 | On or off | Turn on to keep color plane 0 from input 1. The IP concatenates color planes for the final output. |
Keep color plane 1 | On or off | Turn on to keep color plane 1 from input 1. The IP concatenates color planes for the final output. |
Keep color plane 2 | On or off | Turn on to keep color plane 2 from input 1. The IP concatenates color planes for the final output. |
Keep color plane 3 | On or off | Turn on to keep color plane 3 from input 1. The IP concatenates color planes for the final output. |
Control | ||
Keep input 1 aux/user metapackets in merge mode | On or off | When you select merge, turn on to keep all metapackets (including any user or auxiliary packets) from input 1 and from input 0. |
Keep output 1 aux/user metapackets in split mode | On or off | When you select split, turn on to route all metapackets (including any user or auxiliary packets) to output 1 and to output 0. |
Lite mode | On or off | Turn on for a lite variant of the color plane manager IP. |
Memory mapped control interface | On or off | Turn on if you select rearrange and you need run-time control of the padding values or if you need access to debugging features. |
Separate clock for control interface | On or off | Turn on if Memory mapped control interface is on and your control system is on a different clock than the streaming video interfaces clock. |
Debug features | On or off | Turn on if Memory mapped control interface is on to enable debugging features. |

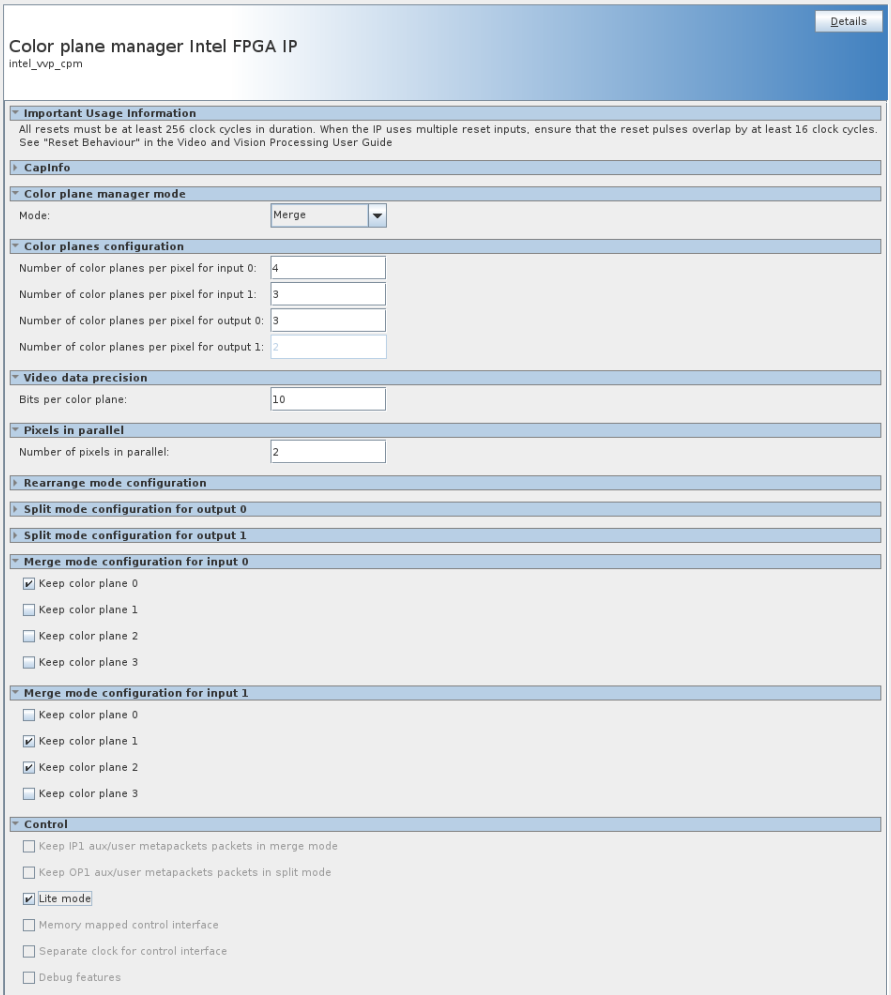

Figure 51. Color Plane Manager IP GUI - Merge Mode

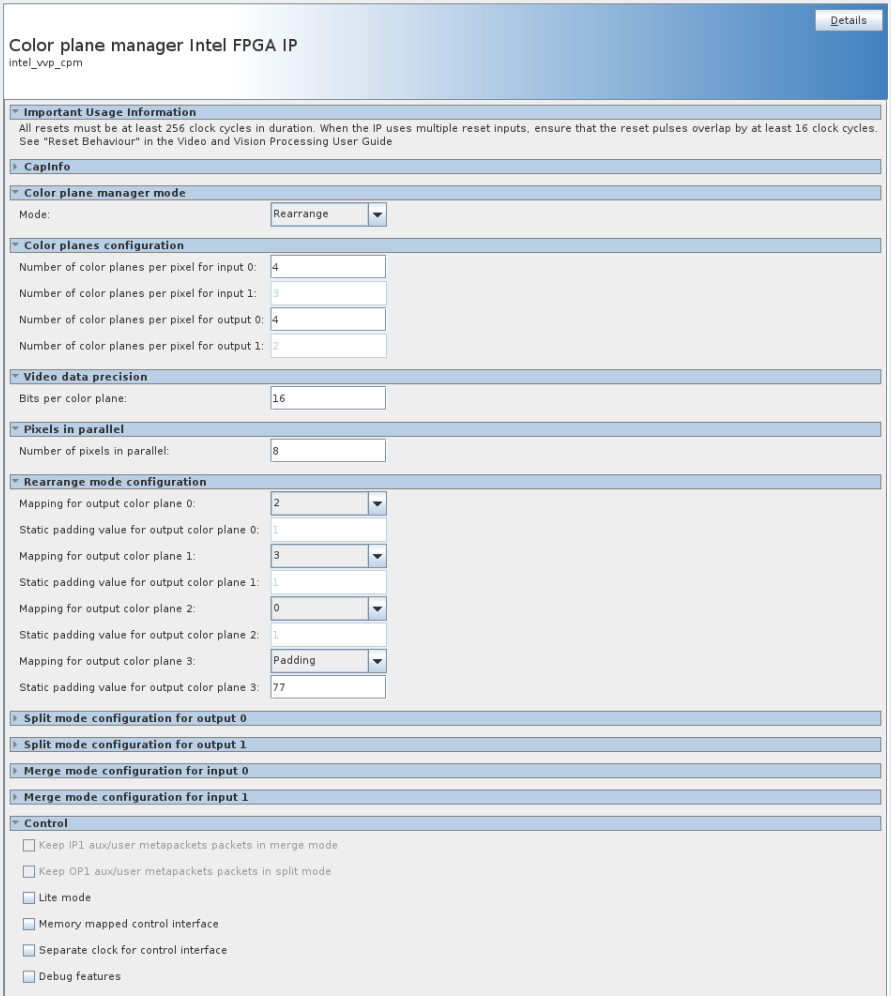

Figure 52. Color Plane Manager IP GUI - Rearrange Mode

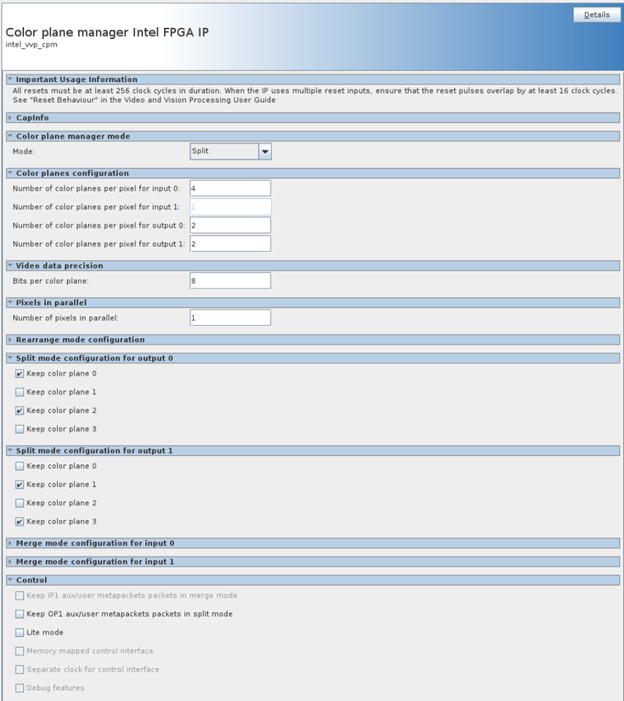

Figure 53. Color Plane Manager IP GUI - Split Mode
