Video and Vision Processing Suite Intel® FPGA IP User Guide

Download PDF
ID 683329
Date 9/30/2024
Public
Document Table of Contents
Document Table of Contents x
1. About the Video and Vision Processing Suite 2. Getting Started with the Video and Vision Processing IPs 3. Video and Vision Processing IPs Functional Description 4. Video and Vision Processing IP Interfaces 5. Video and Vision Processing IP Registers 6. Video and Vision Processing IPs Software Programming Model 7. Protocol Converter Intel® FPGA IP 8. 1D LUT Intel® FPGA IP 9. 3D LUT Intel® FPGA IP 10. Adaptive Noise Reduction Intel® FPGA IP 11. Advanced Test Pattern Generator Intel® FPGA IP 12. AXI-Stream Broadcaster Intel® FPGA IP 13. Bits per Color Sample Adapter Intel® FPGA IP 14. Black Level Correction Intel® FPGA IP 15. Black Level Statistics Intel® FPGA IP 16. Chroma Key Intel® FPGA IP 17. Chroma Resampler Intel® FPGA IP 18. Clipper Intel® FPGA IP 19. Clocked Video Input Intel® FPGA IP 20. Clocked Video to Full-Raster Converter Intel® FPGA IP 21. Clocked Video Output Intel® FPGA IP 22. Color Plane Manager Intel® FPGA IP 23. Color Space Converter Intel® FPGA IP 24. Defective Pixel Correction Intel® FPGA IP 25. Deinterlacer Intel® FPGA IP 26. Demosaic Intel® FPGA IP 27. FIR Filter Intel® FPGA IP 28. Frame Cleaner Intel® FPGA IP 29. Full-Raster to Clocked Video Converter Intel® FPGA IP 30. Full-Raster to Streaming Converter Intel® FPGA IP 31. Genlock Controller Intel® FPGA IP 32. Generic Crosspoint Intel® FPGA IP 33. Genlock Signal Router Intel® FPGA IP 34. Guard Bands Intel® FPGA IP 35. Histogram Statistics Intel® FPGA IP 36. Interlacer Intel® FPGA IP 37. Mixer Intel® FPGA IP 38. Pixels in Parallel Converter Intel® FPGA IP 39. Scaler Intel® FPGA IP 40. Stream Cleaner Intel® FPGA IP 41. Switch Intel® FPGA IP 42. Text Box Intel® FPGA IP 43. Tone Mapping Operator Intel® FPGA IP 44. Test Pattern Generator Intel® FPGA IP 45. Unsharp Mask Intel® FPGA IP 46. Video and Vision Monitor Intel FPGA IP 47. Video Frame Buffer Intel® FPGA IP 48. Video Frame Reader Intel FPGA IP 49. Video Frame Writer Intel FPGA IP 50. Video Streaming FIFO Intel® FPGA IP 51. Video Timing Generator Intel® FPGA IP 52. Vignette Correction Intel® FPGA IP 53. Warp Intel® FPGA IP 54. White Balance Correction Intel® FPGA IP 55. White Balance Statistics Intel® FPGA IP 56. Design Security 57. Document Revision History for Video and Vision Processing Suite User Guide
1. About the Video and Vision Processing Suite x
1.1. Video and Vision Processing IPs Features 1.2. Device Family Support 1.3. Video and Vision Processing IPs Release Information 1.4. Lite versus Full IP Variants 1.5. Glossary of Video and Vision Terminology
2. Getting Started with the Video and Vision Processing IPs x
2.1. Video and Vision Processing IP Evaluation Time-out Behavior 2.2. Generating a Video and Vision Processing IP 2.3. Simulating the Video and Vision Processing IPs
3. Video and Vision Processing IPs Functional Description x
3.1. Auxiliary Control Packets 3.2. Latency 3.3. IP Debugging Features 3.4. Stall Behavior and Error Recovery 3.5. Avalon Streaming Video Protocol Versus Intel FPGA Streaming Video Protocol
5. Video and Vision Processing IP Registers x
5.1. Video and Vision Processing IP Control Examples
7. Protocol Converter Intel® FPGA IP x
7.1. About the Protocol Converter IP 7.2. Protocol Converter IP Parameters 7.3. Protocol Converter IP Functional Description 7.4. Protocol Converter IP Interfaces 7.5. Protocol Converter IP Registers 7.6. Protocol Converter IP Software API
7.1. About the Protocol Converter IP x
7.1.1. Protocol Converter IP Performance and Resources
8. 1D LUT Intel® FPGA IP x
8.1. About the 1D LUT IP 8.2. 1D LUT IP Parameters 8.3. 1D LUT IP Interfaces 8.4. 1D LUT IP Registers 8.5. 1D LUT IP Software API
8.1. About the 1D LUT IP x
8.1.1. 1D LUT IP Performance and Resources
9. 3D LUT Intel® FPGA IP x
9.1. About the 3D LUT Intel® FPGA IP 9.2. 3D LUT IP Parameters 9.3. 3D LUT IP Block Description 9.4. 3D LUT IP Registers 9.5. 3D LUT IP Software API
9.1. About the 3D LUT Intel® FPGA IP x
9.1.1. 3D LUT IP Features 9.1.2. 3D LUT IP Performance IP and Resource Information
9.3. 3D LUT IP Block Description x
9.3.1. 3D LUT IP Interfaces 9.3.2. 3D LUT IP Latency
10. Adaptive Noise Reduction Intel® FPGA IP x
10.1. About the Adaptive Noise Reduction IP 10.2. Adaptive Noise Reduction IP Parameters 10.3. Adaptive Noise Reduction IP Functional Description 10.4. Adaptive Noise Reduction IP Registers 10.5. Adaptive Noise Reduction IP Software API
10.1. About the Adaptive Noise Reduction IP x
10.1.1. Adaptive Noise Reduction IP Performance and Resources
10.3. Adaptive Noise Reduction IP Functional Description x
10.3.1. Adaptive Noise Reduction IP Interfaces
11. Advanced Test Pattern Generator Intel® FPGA IP x
11.1. About the Advanced Test Pattern Generator IP 11.2. Advanced Test Pattern Generator IP Parameters 11.3. Advanced Test Pattern Generator IP Functional Description 11.4. Advanced Test Pattern Generator IP Registers 11.5. Advanced Test Pattern Generator IP Software API
11.1. About the Advanced Test Pattern Generator IP x
11.1.1. Advanced Test Pattern Generator IP Performance and Resources
11.3. Advanced Test Pattern Generator IP Functional Description x
11.3.1. Test Patterns 11.3.2. Dimensions, Offsets, and Alpha Settings 11.3.3. Run-time Settings 11.3.4. Advanced Test Pattern Generator IP Interfaces
12. AXI-Stream Broadcaster Intel® FPGA IP x
12.1. About the AXI-Stream Broadcaster IP 12.2. AXI-Stream Broadcaster IP Parameters 12.3. AXI-Stream Broadcaster IP Interfaces
12.1. About the AXI-Stream Broadcaster IP x
12.1.1. AXI-Stream Broadcaster IP Features 12.1.2. AXI-Stream Broadcaster IP Performance and Resources
13. Bits per Color Sample Adapter Intel® FPGA IP x
13.1. About the Bits per Color Sample Adapter IP 13.2. Bits per Color Sample Adapter IP Parameters 13.3. Bits per Color Sample Adapter IP Dithering Functional Description 13.4. Bits per Color Sample Adapter IP Registers 13.5. Bits per Color Sample Adapter Software API
13.1. About the Bits per Color Sample Adapter IP x
13.1.1. Bits per Color Sample Adapter IP Performance and Resources
13.3. Bits per Color Sample Adapter IP Dithering Functional Description x
13.3.1. Bits per Color Sample Adapter IP Interfaces
14. Black Level Correction Intel® FPGA IP x
14.1. About the Black Level Correction IP 14.2. Black Level Correction IP Parameters 14.3. Black Level Correction IP Functional Description 14.4. Black Level Correction IP Registers 14.5. Black Level Correction IP Software API
14.1. About the Black Level Correction IP x
14.1.1. Black Level Correction IP Performance and Resources
14.3. Black Level Correction IP Functional Description x
14.3.1. Black Level Correction IP Interfaces
15. Black Level Statistics Intel® FPGA IP x
15.1. About the Black Level Statistics IP 15.2. Black Level Statistics IP Parameters 15.3. Black Level Statistics IP Interfaces 15.4. Black Level Statistics IP Registers 15.5. Black Level Statistics IP Software API
15.1. About the Black Level Statistics IP x
15.1.1. Black Level Statistics IP Performance and Resources
16. Chroma Key Intel® FPGA IP x
16.1. About the Chroma Key IP 16.2. Chroma Key IP Parameters 16.3. Chroma Key IP Interfaces 16.4. Chroma Key Replacement 16.5. Chroma Key IP Registers 16.6. Chroma Key IP Software API
16.1. About the Chroma Key IP x
16.1.1. Chroma Key IP Performance and Resources
17. Chroma Resampler Intel® FPGA IP x
17.1. About the Chroma Resampler IP 17.2. Chroma Resampler IP Parameters 17.3. Chroma Resampler IP Functional Description 17.4. Chroma Resampler IP Registers 17.5. Chroma Resampler IP Software API
17.1. About the Chroma Resampler IP x
17.1.1. Chroma Resampler Performance and Resources
17.3. Chroma Resampler IP Functional Description x
17.3.1. Chroma Resampler IP Interfaces
18. Clipper Intel® FPGA IP x
18.1. About the Clipper IP 18.2. Clipper IP Parameters 18.3. Clipper IP Interfaces 18.4. Clipper IP Registers 18.5. Clipper IP Software API
18.1. About the Clipper IP x
18.1.1. Clipper IP Performance and Resources
19. Clocked Video Input Intel® FPGA IP x
19.1. About the Clocked Video Input IP 19.2. Initializing the Clocked Video Input IP 19.3. Clocked Video Input IP Parameters 19.4. Clocked Video Input IP Interfaces 19.5. Clocked Video Input IP Registers 19.6. Clocked Video Input IP Software API
19.1. About the Clocked Video Input IP x
19.1.1. Clocked Video Input IP Features 19.1.2. Clocked Video Input IP Performance and Resources
20. Clocked Video to Full-Raster Converter Intel® FPGA IP x
20.1. About the Clocked Video to Full-Raster Converter IP 20.2. Clocked Video to Full-Raster Converter Parameters 20.3. Clocked Video to Full-Raster Converter Block Description 20.4. Clocked Video Converter to Full-Raster IP Registers
20.1. About the Clocked Video to Full-Raster Converter IP x
20.1.1. Clocked Video to Full-Raster Converter Features 20.1.2. Clocked Video to Full-Raster Converter Performance and Resources
20.3. Clocked Video to Full-Raster Converter Block Description x
20.3.1. Clocked Video to Full-Raster Converter Interfaces
21. Clocked Video Output Intel® FPGA IP x
21.1. About the Clocked Video Output IP 21.2. Clocked Video Output IP Parameters 21.3. Clocked Video Output IP Functional Description 21.4. Clocked Video Output IP Interfaces 21.5. Clocked Video Output IP Registers 21.6. Clocked Video Output IP Software API
21.1. About the Clocked Video Output IP x
21.1.1. Clocked Video Output IP Performance and Resources 21.1.2. Clocked Video Output IP Features
22. Color Plane Manager Intel® FPGA IP x
22.1. About the Color Plane Manager IP 22.2. Color Plane Manager IP Parameters 22.3. Color Plane Manager IP Functional Description 22.4. Color Plane Manager IP Registers 22.5. Color Plane Manager Software API
22.1. About the Color Plane Manager IP x
22.1.1. Color Plane Manager IP Performance and Resources
22.3. Color Plane Manager IP Functional Description x
22.3.1. Color Plane Manager IP Interfaces
23. Color Space Converter Intel® FPGA IP x
23.1. About the Color Space Converter IP 23.2. Color Space Converter IP Parameters 23.3. Color Space Converter IP Functional Description 23.4. Color Space Converter IP Registers 23.5. Color Space Converter IP Software API
23.1. About the Color Space Converter IP x
23.1.1. Color Space Converter IP Features 23.1.2. Color Space Converter IP Performance and Resources
23.3. Color Space Converter IP Functional Description x
23.3.1. Color Space Converter IP Interfaces
24. Defective Pixel Correction Intel® FPGA IP x
24.1. About the Defective Pixel Correction IP 24.2. Defective Pixel Correction IP Parameters 24.3. Defective Pixel Correction IP Functional Description 24.4. Defective Pixel Correction IP Registers 24.5. Defective Pixel Correction IP Software API
24.1. About the Defective Pixel Correction IP x
24.1.1. Defective Pixel Correction IP Performance and Resources
24.3. Defective Pixel Correction IP Functional Description x
24.3.1. Defective Pixel Correction IP Interfaces
25. Deinterlacer Intel® FPGA IP x
25.1. About the Deinterlacer IP 25.2. Deinterlacer Parameters 25.3. Deinterlacer IP Functional Description 25.4. Deinterlacer IP Registers 25.5. Deinterlacer IP Software API
25.1. About the Deinterlacer IP x
25.1.1. Deinterlacer Performance and Resources
25.3. Deinterlacer IP Functional Description x
25.3.1. Deinterlacer Interfaces
26. Demosaic Intel® FPGA IP x
26.1. About the Demosaic IP 26.2. Demosaic IP Parameters 26.3. Demosaic IP Functional Description 26.4. Demosaic IP Registers 26.5. Demosaic IP Software API
26.1. About the Demosaic IP x
26.1.1. Demosaic IP Performance and Resources
26.3. Demosaic IP Functional Description x
26.3.1. Demosaic IP Interfaces
27. FIR Filter Intel® FPGA IP x
27.1. About the FIR Filter 27.2. FIR Filter Parameters 27.3. FIR Filter IP Operation 27.4. FIR Filter Interfaces 27.5. FIR Filter Registers 27.6. FIR Filter IP Software API
27.1. About the FIR Filter x
27.1.1. FIR Filter IP Performance and Resources
27.3. FIR Filter IP Operation x
27.3.1. FIR Filter Processing 27.3.2. FIR Filter Precision 27.3.3. FIR Coefficient Specification 27.3.4. FIR Filter Symmetry 27.3.5. Result to Output Data Type Conversion
27.3.4. FIR Filter Symmetry x
27.3.4.1. No Symmetry 27.3.4.2. Horizontal Symmetry 27.3.4.3. Vertical Symmetry 27.3.4.4. Horizontal and Vertical Symmetry 27.3.4.5. Diagonal Symmetry
28. Frame Cleaner Intel® FPGA IP x
28.1. About the Frame Cleaner IP 28.2. Frame Cleaner IP Parameters 28.3. Frame Cleaner IP Functional Description 28.4. Frame Cleaner IP Interfaces 28.5. Frame Cleaner IP Registers 28.6. Frame Cleaner IP Software API
28.1. About the Frame Cleaner IP x
28.1.1. Frame Cleaner IP Performance and Resources
29. Full-Raster to Clocked Video Converter Intel® FPGA IP x
29.1. About the Full-Raster to Clocked Video Converter 29.2. Full Raster to Clocked Video Converter Parameters 29.3. Full-Raster to Clocked Video Converter Block Description 29.4. Full-Raster to Clocked Video Converter Registers
29.1. About the Full-Raster to Clocked Video Converter x
29.1.1. Full-Raster to Clocked Video Converter Features 29.1.2. Full-Raster to Clocked Video Converter Performance and Resource Utilization
29.3. Full-Raster to Clocked Video Converter Block Description x
29.3.1. Full Raster to Clocked Video Converter Interfaces
30. Full-Raster to Streaming Converter Intel® FPGA IP x
30.1. About the Full-Raster to Streaming Converter IP 30.2. Full-Raster to Streaming Converter Parameters 30.3. Full-Raster to Streaming Converter Block Description
30.1. About the Full-Raster to Streaming Converter IP x
30.1.1. Full-Raster to Streaming Converter Features 30.1.2. Full-Raster to Streaming Converter Performance and Resources
30.3. Full-Raster to Streaming Converter Block Description x
30.3.1. Full-Raster to Streaming Converter Interfaces
31. Genlock Controller Intel® FPGA IP x
31.1. About the Genlock Controller IP 31.2. Genlock Controller IP Parameters 31.3. Genlock Controller IP Functional Description 31.4. Using Genlock Controller IP Software 31.5. Genlock Controller IP Registers 31.6. Genlock Controller IP Software API
31.1. About the Genlock Controller IP x
31.1.1. Genlock Controller IP Performance and Resources
31.3. Genlock Controller IP Functional Description x
31.3.1. Genlock Controller IP Interfaces
31.4. Using Genlock Controller IP Software x
31.4.1. Achieving Genlock Controller Free Running (for Initialization or from Lock to Reference Clock N) 31.4.2. Locking to Reference Clock N (from Genlock Controller IP free running) 31.4.3. Setting the VCXO hold over 31.4.4. Restarting the Genlock Controller IP 31.4.5. Locking to Reference Clock N New (from Locking to Reference Clock N Old) 31.4.6. Changing to Reference Clock or VCXO Base Frequencies (switch between p50 and p59.94 video formats and vice-versa) 31.4.7. Disturbing a Reference Clock (a cable pull)
32. Generic Crosspoint Intel® FPGA IP x
32.1. About the Generic Crosspoint IP 32.2. Generic Crosspoint IP Parameters 32.3. Generic Crosspoint IP Interfaces 32.4. Generic Crosspoint IP Registers 32.5. Generic Crosspoint IP Software API
32.1. About the Generic Crosspoint IP x
32.1.1. Generic Crosspoint IP Features 32.1.2. Generic Crosspoint Performance and Resources
33. Genlock Signal Router Intel® FPGA IP x
33.1. About the Genlock Signal Router IP 33.2. Genlock Signal Router IP Parameters 33.3. Genlock Signal Router IP Interfaces 33.4. Genlock Signal Router IP Registers 33.5. Genlock Signal Router IP Software API
33.1. About the Genlock Signal Router IP x
33.1.1. Genlock Signal Router IP Features 33.1.2. Genlock Signal Router IP Performance and Resources
34. Guard Bands Intel® FPGA IP x
34.1. About the Guard Bands IP 34.2. Guard Bands IP Parameters 34.3. Guard Bands IP Interfaces 34.4. Guard Bands IP Registers 34.5. Guard Bands IP Software API
34.1. About the Guard Bands IP x
34.1.1. Guard Bands IP Performance and Resources
35. Histogram Statistics Intel® FPGA IP x
35.1. About the Histogram Statistics IP 35.2. Histogram Statistics IP Parameters 35.3. Histogram Statistics IP Interfaces 35.4. Histogram Statistics IP Registers 35.5. Histogram Statistics IP Software API
35.1. About the Histogram Statistics IP x
35.1.1. Histogram Statistics IP Performance and Resources
36. Interlacer Intel® FPGA IP x
36.1. About the Interlacer IP 36.2. Interlacer IP Parameters 36.3. Interlacer IP Functional Description 36.4. Interlacer IP Registers 36.5. Interlacer IP Software API
36.1. About the Interlacer IP x
36.1.1. Interlacer IP Performance and Resources
36.3. Interlacer IP Functional Description x
36.3.1. Interlacer IP Interfaces
37. Mixer Intel® FPGA IP x
37.1. About the Mixer IP 37.2. Mixer IP Parameters 37.3. Mixer IP Functional Description 37.4. Mixer IP Registers 37.5. Mixer IP Software API
37.1. About the Mixer IP x
37.1.1. Mixer IP Performance and Resources
37.3. Mixer IP Functional Description x
37.3.1. Mixer IP Interfaces
38. Pixels in Parallel Converter Intel® FPGA IP x
38.1. About the Pixels in Parallel Converter IP 38.2. Pixels in Parallel Converter IP Parameters 38.3. Pixels in Parallel Converter Interfaces 38.4. Pixels in Parallel Converter Registers 38.5. Pixels in Parallel Converter IP Software API
38.1. About the Pixels in Parallel Converter IP x
38.1.1. Pixels in Parallel Converter IP Performance and Resources
39. Scaler Intel® FPGA IP x
39.1. About the Scaler 39.2. Scaler IP Parameters 39.3. Scaler IP Functional Description 39.4. Scaler IP Registers 39.5. Scaler IP Software API
39.1. About the Scaler x
39.1.1. Scaler IP Performance and Resources
39.2. Scaler IP Parameters x
39.2.1. Scaler Maximum Resolution
39.3. Scaler IP Functional Description x
39.3.1. Coefficient Selection 39.3.2. Coefficient Quantization 39.3.3. Filter Behavior at Edge Boundaries 39.3.4. Partial Frame Scaling 39.3.5. 422 and 420 Chroma Sampled Data Scaling 39.3.6. Scaler IP Interfaces
39.3.1. Coefficient Selection x
39.3.1.1. Updating Scaler IP Runtime Coefficients
40. Stream Cleaner Intel® FPGA IP x
40.1. About the Stream Cleaner IP 40.2. Stream Cleaner IP Parameters 40.3. Stream Cleaner IP Functional Description
40.1. About the Stream Cleaner IP x
40.1.1. Stream Cleaner IP Performance and Resources
40.3. Stream Cleaner IP Functional Description x
40.3.1. Stream Cleaner IP Interfaces
41. Switch Intel® FPGA IP x
41.1. About the Switch IP 41.2. Switch IP Parameters 41.3. Switch IP Functional Description 41.4. Switch IP Registers 41.5. Switch IP Software API
41.1. About the Switch IP x
41.1.1. Switch IP Performance and Resources
41.3. Switch IP Functional Description x
41.3.1. Switch IP Latency 41.3.2. Switch IP Interfaces
42. Text Box Intel® FPGA IP x
42.1. About the Text Box IP 42.2. Text Box IP Parameters 42.3. Text Box IP Functional Description 42.4. Text Box IP Registers 42.5. Text Box IP Software API
42.1. About the Text Box IP x
42.1.1. Text Box IP Performance and Resources
42.3. Text Box IP Functional Description x
42.3.1. Writing Text at Run Time with Double Buffering 42.3.2. Writing Text at Run Time without Double Buffering 42.3.3. Text Box IP Interfaces
43. Tone Mapping Operator Intel® FPGA IP x
43.1. About the Tone Mapping Operator IP 43.2. TMO IP Parameters 43.3. TMO IP Block Description 43.4. TMO IP Registers 43.5. TMO IP Software API
43.1. About the Tone Mapping Operator IP x
43.1.1. TMO IP Features 43.1.2. TMO IP Performance and Resource Utilization
43.3. TMO IP Block Description x
43.3.1. TMO IP Interfaces 43.3.2. TMO IP Latency
44. Test Pattern Generator Intel® FPGA IP x
44.1. About the Test Pattern Generator IP 44.2. Test Pattern Generator IP Parameters 44.3. Test Pattern Generator IP Functional Description 44.4. Test Pattern Generator IP Registers 44.5. Test Pattern Generator IP Software API
44.1. About the Test Pattern Generator IP x
44.1.1. Test Pattern Generator IP Performance and Resources
44.3. Test Pattern Generator IP Functional Description x
44.3.1. Test Patterns 44.3.2. Output Subsampling and Color Space 44.3.3. Run-time Settings 44.3.4. Test Pattern Generator IP Interfaces
45. Unsharp Mask Intel® FPGA IP x
45.1. About the Unsharp Mask IP 45.2. Unsharp Mask IP Parameters 45.3. Unsharp Mask IP Functional Description 45.4. Unsharp Mask IP Registers 45.5. Unsharp Mask IP Software API
45.1. About the Unsharp Mask IP x
45.1.1. Unsharp Mask IP Performance and Resources
45.3. Unsharp Mask IP Functional Description x
45.3.1. Unsharp Mask IP Interfaces
46. Video and Vision Monitor Intel FPGA IP x
46.1. About the Video and Vision Monitor IP 46.2. Video and Vision Monitor IP Parameters 46.3. Video and Vision Monitor IP Functional Description 46.4. Video and Vision Monitor IP Registers 46.5. Video and Vision Monitor Software API
46.1. About the Video and Vision Monitor IP x
46.1.1. Video and Vision Monitor IP Performance and Resources
46.3. Video and Vision Monitor IP Functional Description x
46.3.1. Video and Vision Monitor IP Interfaces
47. Video Frame Buffer Intel® FPGA IP x
47.1. About the Video Frame Buffer IP 47.2. Video Frame Buffer IP Parameters 47.3. Video Frame Buffer IP Functional Description 47.4. Video Frame Buffer IP Registers 47.5. Video Frame Buffer IP Software API
47.1. About the Video Frame Buffer IP x
47.1.1. Video Frame Buffer Performance and Resources
47.3. Video Frame Buffer IP Functional Description x
47.3.1. Video Frame Buffer IP Interfaces
48. Video Frame Reader Intel FPGA IP x
48.1. About the Video Frame Reader IP 48.2. Video Frame Reader IP Parameters 48.3. Video Frame Reader IP Functional Description 48.4. Video Frame Reader IP Registers 48.5. Video Frame Reader IP Software API
48.1. About the Video Frame Reader IP x
48.1.1. Video Frame Reader IP Performance and Resources
48.3. Video Frame Reader IP Functional Description x
48.3.1. Video Frame Reader IP Interfaces
49. Video Frame Writer Intel FPGA IP x
49.1. About the Video Buffer Writer IP 49.2. Video Frame Writer IP Parameters 49.3. Video Frame Writer IP Functional Description 49.4. Video Frame Writer IP Registers 49.5. Video Frame Writer IP Software API
49.1. About the Video Buffer Writer IP x
49.1.1. Video Frame Writer IP Performance and Resources
49.3. Video Frame Writer IP Functional Description x
49.3.1. Video Frame Writer IP Interfaces
50. Video Streaming FIFO Intel® FPGA IP x
50.1. About the Video Streaming FIFO IP 50.2. Video Streaming FIFO IP Parameters 50.3. Video Streaming FIFO IP Interfaces
50.1. About the Video Streaming FIFO IP x
50.1.1. Video Streaming FIFO IP Performance and Resources
51. Video Timing Generator Intel® FPGA IP x
51.1. About the Video Timing Generator IP 51.2. Video Timing Generator IP Parameters 51.3. Video Timing Generator IP Functional Description 51.4. Video Timing Generator IP Interfaces 51.5. Video Timing Generator IP Registers 51.6. Video Timing Generator IP Software API
51.1. About the Video Timing Generator IP x
51.1.1. Video Timing Generator IP Features 51.1.2. Video Timing Generator IP Performance and Resources
52. Vignette Correction Intel® FPGA IP x
52.1. About the Vignette Correction IP 52.2. Vignette Correction IP Parameters 52.3. Vignette Correction IP Interfaces 52.4. Vignette Correction IP Registers 52.5. Vignette Correction IP Software API
52.1. About the Vignette Correction IP x
52.1.1. Vignette Correction IP Performance and Resources
53. Warp Intel® FPGA IP x
53.1. About the Warp IP 53.2. Warp IP Parameters 53.3. Warp IP Block Description 53.4. Warp IP Registers 53.5. Warp IP Software API
53.1. About the Warp IP x
53.1.1. Warp IP Features 53.1.2. Warp IP Performance and Resource Utilization
53.3. Warp IP Block Description x
53.3.1. Block Cache Tool 53.3.2. Warp IP Interfaces 53.3.3. Warp IP Latency 53.3.4. External Memory for Warp IP Memory Space Allocation in External Memory Bandwidth to External Memory Total Warp IP Memory Traffic Peak Memory Bandwidth Approximation for Video Streams Peak Memory Bandwidth Approximation for Coefficient Streams Peak Memory Bandwidth Approximation for Cache Loads Memory Interface Bandwidth Requirements Example system sharing access to memory at UHD 60 fps Multiple Warp IPs sharing access to memory Example system running at UHD 120 fps or 8K 30 fps
53.5. Warp IP Software API x
53.5.1. Using Warp IP Software 53.5.2. Warp IP Software Code Examples
54. White Balance Correction Intel® FPGA IP x
54.1. About the White Balance Correction IP 54.2. White Balance Correction IP Parameters 54.3. White Balance Correction IP Functional Description 54.4. White Balance Correction IP Registers 54.5. White Balance Correction IP Software API
54.1. About the White Balance Correction IP x
54.1.1. White Balance Correction IP Performance and Resources
54.3. White Balance Correction IP Functional Description x
54.3.1. White Balance Correction IP Interfaces
55. White Balance Statistics Intel® FPGA IP x
55.1. About the White Balance Statistics IP 55.2. White Balance Statistics IP Parameters 55.3. White Balance Statistics IP Interfaces 55.4. White Balance Statistics IP Registers 55.5. White Balance Statistics IP Software API
55.1. About the White Balance Statistics IP x
55.1.1. White Balance Statistics IP Performance and Resources
56. Design Security x
56.1. Memory Subsystems 56.2. Considering Design Security
1. About the Video and Vision Processing Suite
2. Getting Started with the Video and Vision Processing IPs
3. Video and Vision Processing IPs Functional Description
4. Video and Vision Processing IP Interfaces
5. Video and Vision Processing IP Registers
6. Video and Vision Processing IPs Software Programming Model
7. Protocol Converter Intel® FPGA IP
8. 1D LUT Intel® FPGA IP
9. 3D LUT Intel® FPGA IP
10. Adaptive Noise Reduction Intel® FPGA IP
11. Advanced Test Pattern Generator Intel® FPGA IP
12. AXI-Stream Broadcaster Intel® FPGA IP
13. Bits per Color Sample Adapter Intel® FPGA IP
14. Black Level Correction Intel® FPGA IP
15. Black Level Statistics Intel® FPGA IP
16. Chroma Key Intel® FPGA IP
17. Chroma Resampler Intel® FPGA IP
18. Clipper Intel® FPGA IP
19. Clocked Video Input Intel® FPGA IP
20. Clocked Video to Full-Raster Converter Intel® FPGA IP
21. Clocked Video Output Intel® FPGA IP
22. Color Plane Manager Intel® FPGA IP
23. Color Space Converter Intel® FPGA IP
24. Defective Pixel Correction Intel® FPGA IP
25. Deinterlacer Intel® FPGA IP
26. Demosaic Intel® FPGA IP
27. FIR Filter Intel® FPGA IP
28. Frame Cleaner Intel® FPGA IP
29. Full-Raster to Clocked Video Converter Intel® FPGA IP
30. Full-Raster to Streaming Converter Intel® FPGA IP
31. Genlock Controller Intel® FPGA IP
32. Generic Crosspoint Intel® FPGA IP
33. Genlock Signal Router Intel® FPGA IP
34. Guard Bands Intel® FPGA IP
35. Histogram Statistics Intel® FPGA IP
36. Interlacer Intel® FPGA IP
37. Mixer Intel® FPGA IP
38. Pixels in Parallel Converter Intel® FPGA IP
39. Scaler Intel® FPGA IP
40. Stream Cleaner Intel® FPGA IP
41. Switch Intel® FPGA IP
42. Text Box Intel® FPGA IP
43. Tone Mapping Operator Intel® FPGA IP
44. Test Pattern Generator Intel® FPGA IP
45. Unsharp Mask Intel® FPGA IP
46. Video and Vision Monitor Intel FPGA IP
47. Video Frame Buffer Intel® FPGA IP
48. Video Frame Reader Intel FPGA IP
49. Video Frame Writer Intel FPGA IP
50. Video Streaming FIFO Intel® FPGA IP
51. Video Timing Generator Intel® FPGA IP
52. Vignette Correction Intel® FPGA IP
53. Warp Intel® FPGA IP
54. White Balance Correction Intel® FPGA IP
55. White Balance Statistics Intel® FPGA IP
56. Design Security
57. Document Revision History for Video and Vision Processing Suite User Guide

53.3.4. External Memory for Warp IP

The IP requires access to two separate areas of external memory: one for its input and output video buffers and one for its coefficient tables. The processor system running the Warp Software API must be able to access the coefficient tables but does not need access to the buffer area.

Memory Space Allocation in External Memory

Table 1115.   Warp IP Video Buffer Memory Region - double bounce without mipmapsThe table defines how much space is required in external memory by the Warp IP for the video buffer region when you turn off Use easy warp, turn off Use single memory bounce, and turn off Use mipmaps. This space depends on the size of the images to be processed in a system. It is defined by the Memory frame buffer size parameter. Six buffers require space in total: four input and two output.
Buffer Space Configuration Region Size (MB) Memory Region Required Alignment (multiples of)
SD buffer size (1024x1024) 24 0x0180_0000 0x0200_0000
HD buffer size (2048x2048) 96 0x0600_0000 0x0800_0000
UHD buffer size (4096x4096) 384 0x1800_0000 0x2000_0000
8K buffer size (8192x8192) 1536 0x6000_0000 0x8000_0000
Table 1116.   Warp IP Video Buffer Memory Region - single bounce without mipmaps

The table defines how much space is required in external memory by the Warp IP for the video buffer region when you turn on Use easy warp or turn on Use single memory bounce, and turn off Use mipmaps. This space depends on the size of the images to be processed in a system. It is defined by the Memory frame buffer size parameter. Four buffers require space in total.

Buffer Space Configuration Region Size (MB) Memory Region Required Alignment (multiples of)
SD buffer size (1024x1024) 16 0x0100_0000 0x0100_0000
HD buffer size (2048x2048) 64 0x0400_0000 0x0400_0000
UHD buffer size (4096x4096) 256 0x1000_0000 0x1000_0000

8K buffers size (8192x8192)

Not supported with easy warp

 1024 0x4000_0000 0x4000_0000
Table 1117.  Warp IP Video Buffer Memory Region – double bounce with mipmapsThe table defines how much space is required in external memory by the Warp IP for the video buffer region when you turn off Use easy warp, turn off Use single memory bounce and turn on Use mipmaps. This space depends on the size of the images to be processed in a system. It is defined by the Memory frame buffer size parameter. Eight buffers require space in total: four for normal input, two for mipmap input and two for output.
Buffer Space Configuration Region Size (MB) Memory Region Required Alignment (multiples of)
SD buffer size (1024x1024) 32 0x0200_0000 0x0200_0000
HD buffer size (2048x2048) 128 0x0800_0000 0x0800_0000
UHD buffer size (4096x4096) 512 0x2000_0000 0x2000_0000
8K buffer size (8192x8192) 2048 0x8000_0000 0x8000_0000
Table 1118.  Warp IP Video Buffer Memory Region - single bounce with mipmaps

The table defines how much space is required in external memory by the Warp IP for the video buffer region when you turn off Use easy warp, turn on Use single memory bounce and turn on Use mipmaps. This space depends on the size of the images to be processed in a system. It is defined by the Memory frame buffer size parameter. Six buffers require space in total: four for normal input and two for mipmap input.

Buffer Space Configuration RegionSize (MB) Memory Region Required Alignment (multiples of)
SD buffer size (1024x1024) 24 0x0180_0000 0x0200_0000
HD buffer size (2048x2048) 96 0x0600_0000 0x0800_0000
UHD buffer size (4096x4096) 384 0x1800_0000 0x2000_0000
8K buffer size (8192x8192) 1536 0x6000_0000 0x8000_0000

The IP passes the base address of the memory region allocated to the frame buffers to the software API using the ram_addr element in the structure.

The memory region that the coefficient tables require is related to the number of warp engines, the resolution of the images, and the type of warp. The IP only requires this memory region when you turn off Use easy warp.

Table 1119.  Warp IP Coefficient Tables Memory RegionThe table shows the maximum size of the coefficient table memory region, per engine.
Warp Engines Region Size (MB) Memory Region Required Alignment (multiples of)
1 16 0x0100_0000 0x0100_0000
2 32 0x0200_0000 0x0200_0000
4 64 0x0400_0000 0x0400_0000

Bandwidth to External Memory

The performance of the interface from the Warp IP to the external memory is important for the correct operation of a system using the Warp IP.

The Warp IP generates a substantial amount of memory traffic. It has up to four video streams passing to and from external memory. In addition, each engine has three read streams to access the coefficient tables. All these streams combine to make Warp IP memory accesses complex. The streams affect how much efficiency you can obtain when accessing memory such as DDR4.

The Warp IP memory controller mitigates potential inefficiencies caused by these complex access patterns. It uses burst lengths of 8 beats for all its read and write accesses to improve the burst performance of DDR4 memory. It also attempts to cluster individual read and write bursts together to eliminate some of the issues with read and write turnaround dead time at the DDR4 interface.

These memory access patterns depend on the image transform that you apply. Some complex image transforms may reduce memory traffic because of the skip region functionality. When Use single memory bounce is off, one of the worst transforms for generated memory traffic is a unity warp that gives a 1:1 mapping between input and output pixels. When Use single memory bounce is on, memory traffic is proportional to the amount of compression in the vertical direction of the transform. The higher the amount of compression in the transform vertically, the higher the memory bandwidth.

The operation of the Warp IP is easier to predict when it is the only user of the DDR4 memory in a system. Ensure the Warp IP is the only high bandwidth user of the DDR4 memory in a system. When other high bandwidth accesses are made to the memory at the same time as the Warp IP, ensure that any interactions don’t adversely affect performance.

When Use mipmaps is on, the Warp IP generates two separate streams of input video data that the IP stores in memory: the original image data and the downscaled mipmap image data. The Warp IP software selects those regions of the input image where the downscaling is required and for these regions, only the downscaled image data is written to memory. The result is a net reduction in the amount of memory traffic from the input video stream compared to a design where Use mipmaps is set to off.

Total Warp IP Memory Traffic

Three different configurations of the warp IP affect the way it connects to the external memory and hence affect the total memory traffic:

  • When Use easy warp is on
  • Use easy warp is off and Use single memory bounce is either on or off.
Figure 155. External Memory Data Streams

The figure shows a schematic view of all the possible data streams the IP uses. Depending on the settings of Use easy warp and Use single memory bounce, the IP does not require all of these streams.

Table 1120.  Active Data Streams for Different Configurations

The table shows which external memory data streams are active for the different configuration settings.
Data Stream Use easy warp on Use single memory bounce on Use single memory bounce off
Input video Active Active Active
Cache loads Active Active
Warped image Active
Coefficient reads Active Active
Output video Active Active

The bandwidth for each data stream is:

  • A video stream (input video, warped image and output video)
  • A coefficient stream (coefficient reads)
  • Cache loads (a scaled version of a video stream).

Peak Memory Bandwidth Approximation for Video Streams

The equation calculates the peak bandwidth (in bits per second) for the video streams passing through the warp (where number_of_lines includes blanking). Each pixel of data is transferred to or from external memory as a 32bit word.

Peak bandwidth = 32 * pixels_per_line * number_of_lines * frame_rate

Table 1121.  Video Stream Memory Bandwidth Examples

The table shows the peak memory bandwidth per video stream for various resolutions and frame rates.
Resolution Frame Rate (fps) Peak Data Rate (Gbps)
7680x4320 (4500 lines) 30 33
3840x2160 (2250 lines) 120 33
3840x2160 (2250 lines) 60 16.6
3840x2160 (2250 lines) 30 8.3
1920x1080 (1125 lines) 60 4.2

Peak Memory Bandwidth Approximation for Coefficient Streams

You can approximate the memory bandwidth required by the coefficient streams as 9% of a video stream.

Table 1122.  Coefficient Stream Memory Bandwidth Examples

The table shows the peak memory bandwidth per stream for various resolutions and frame rates.
Resolution Frame Rate (fps) Peak Data Rate (Gbps)
7680x4320 30 3.0
3840x2160 120 3.0
3840x2160 60 1.5
3840x2160 30 0.75
1920x1080 60 0.4

Peak Memory Bandwidth Approximation for Cache Loads

The memory bandwidth required by the IP for the cache loads is closely linked to the warp transform that the IP applies. The memory bandwidth is proportional to the bandwidth required by a standard video stream. It is also affected by Use single memory bounce.

When Use single memory bounce is off, the worst-case bandwidth required for cache loads is experienced for a 1:1 or unity warp and is approximately 25% higher than a normal video stream. The unity warp gives an upper bound for the bandwidth. Other transforms give lower.

When Use single memory bounce is on, the amount of vertical compression in the transform that the IP performs affects the bandwidth required for cache loads. A 1:1 or unity warp has a 1:1 vertical compression. The resultant cache load bandwidth is equivalent to the bandwidth for a standard video stream. In contrast, a 53 degree vertical keystone warp has a vertical compression approaching 2:1 in some regions. The maximum cache load bandwidth for this warp is two times the standard video stream bandwidth. The 2:1 ratio provides an upper bound for the cache load bandwidth for recommended operation.

The recommended 2:1 compression limit comes from the limitations of the low pass filtering that takes place in the bicubic pixel interpolation process when generating output pixels. However, you can generate transforms that have a compression ratio of greater than 2:1, which can potentially affect the single memory bounce memory bandwidth and reduce the final picture quality.

When Use mipmaps is on, any transform regions that have compressions of greater than 2:1 use the downscaled mipmap image data. The result is lower bandwidth for these regions.

Memory Interface Bandwidth Requirements

Table 1123.  Memory Interface Bandwidth Requirements – Easy WarpThe table shows the burst data rate scaling across resolutions and frame rates when Use easy warp is set to on. When Use easy warp is on, you can approximate the memory bandwidth using two video streams.
Resolution Frame Rate (fps) Maximum Burst Data Rate (Gbps)
3840x2160 60 34
3840x2160 30 17
1920x1080 60 8.5
Table 1124.  Memory Interface Bandwidth Requirements – Single Memory BounceThe table shows the burst data rate scaling across resolutions and frame rates when Use single memory bounce is on. Tthe cache load data rate assumes a 2:1 vertical compression factor, which gives worst-case figures. When Use single memory bounce is on, you can approximate the memory bandwidth using one video stream, a coefficient stream, and the cache load stream (with an upper bound of twice the bandwidth of a standard video stream).
Resolution Frame Rate (fps) Maximum Burst Data Rate (Gbps)
7680x4320 30 103
3840x2160 120 103
3840x2160 60 51.3
3840x2160 30 25.7
1920x1080 60 8.5
Table 1125.  Memory Interface Bandwidth Requirements - Double Memory Bounce The table shows the burst data rate scaling across resolutions and frame rates when Use single memory bounce is off. The cache load data rate assumes a 1:1 warp transform, which gives the worst-case figures. You can approximate the memory bandwidth using three video streams, a coefficient stream, and the cache load stream (with a 25% overhead above the bandwidth of a standard video stream).
Resolution Frame Rate (fps) Maximum Burst Data Rate (Gbps)
7680x4320 30 140
3840x2160 120 140
3840x2160 60 72
3840x2160 30 36
1920x1080 60 18

Intel references these burst data rates to the memory interface of the IP. The total data rates available are affected by other factors outside of the IP such as the performance of the interconnect fabric and the efficiency of the memory controller.

Example system sharing access to memory at UHD 60 fps

In this example system the Warp IP shares the DDR4 interface with a frame buffer in a system that processes UHD frames at 60 fps. The system runs on an Intel Arria 10 GX Development Kit with the DDR4 EMIF running a 2,133 MHz interface to a DDR4 memory. This system has four memory-mapped hosts accessing the memory: processor, frame buffer read, frame buffer write, and warp.

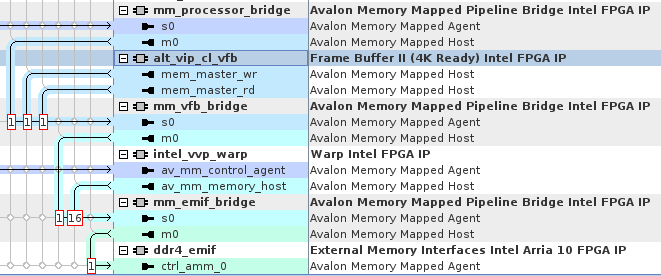

Figure 156. Warp and Video Frame Buffer Platform DesignerThe figure shows the Platform Designer connectivity where the Frame Buffer II component is sharing access to the DDR4 EMIF with the Warp IP. The Frame Buffer is part of the same video processing pipeline as the Warp IP. For clarity, the figure only shows the Avalon memory-mapped Interfaces and Show Arbitration Shares is on.

For this system to work:

  • Configure Frame Buffer to use bursts of 32 beats for read and write.
  • Configure Frame Buffer to use read and write FIFO depths of 256
  • Set the arbitration weighting at the front end of the DDR4 EMIF to 16:1 in favor of the Warp IP (versus the processor and the Frame Buffer’s read and write interfaces connected through the mm_vfb_bridge component).
  • Set the Maximum pending read transactions parameter in the pipelined transfers section of the Avalon memory-mapped ports to be at 8.
  • Set Limit interconnect pipeline stages to for the domain at the front end of the DDR4 EMIF to 4. This limit helps to meet timing on the memory interface clock domain.

Memory accesses from the processor may adversely affect the performance of the rest of the system. If the performance is affected, increase the arbitration weightings at the mm_vfb_bridge component to be 1:2:2 or higher in favor of the Frame Buffer’s read and write interfaces. Alternatively, implement a fixed priority arbitration scheme at the mm_vfb_bridge to reduce the effect of the processor’s memory accesses.

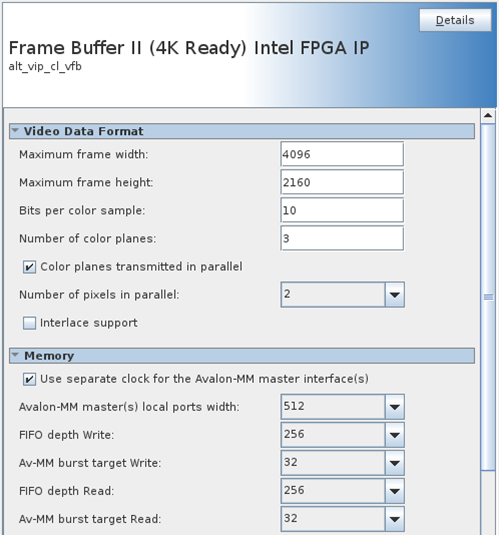

Figure 157. Video Frame Buffer Parameterization

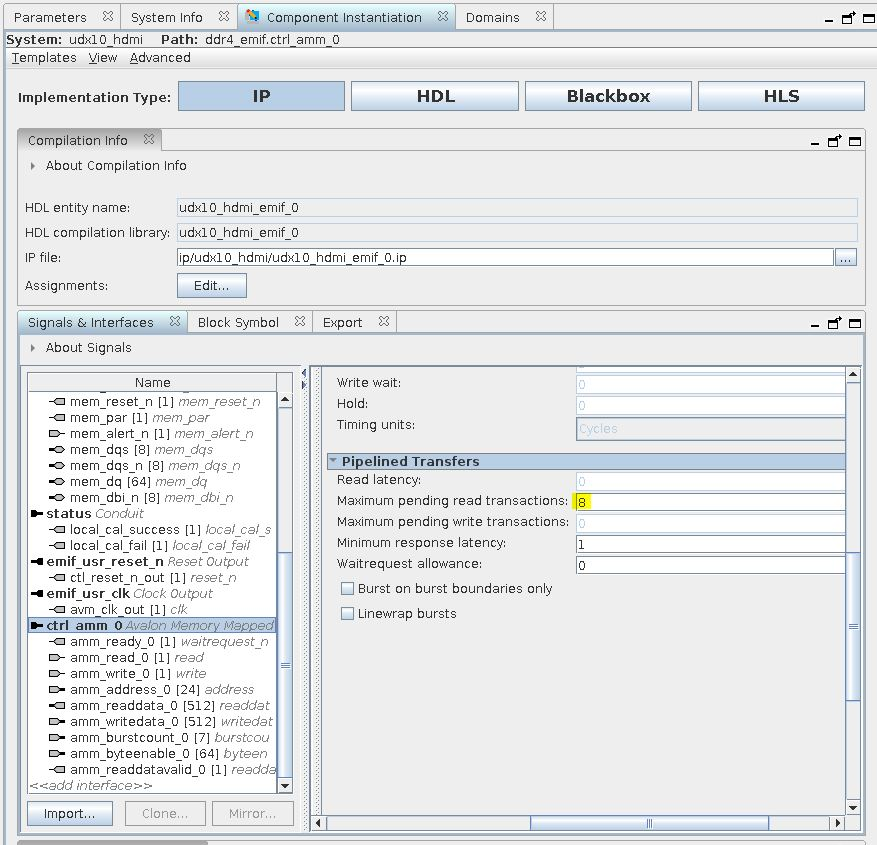

Figure 158. Maximum Pending Read Transactions

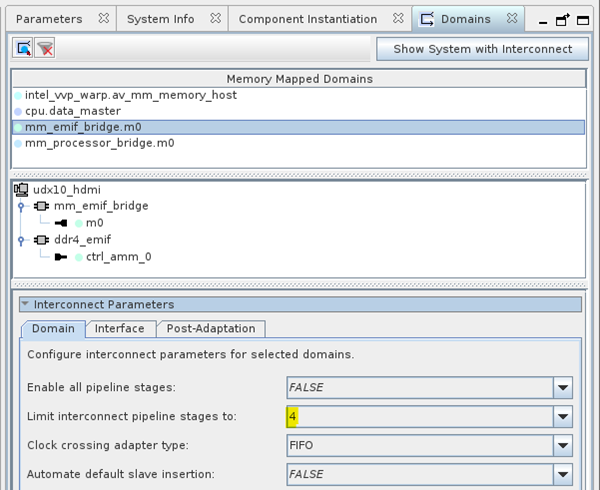

Figure 159. Parameterizing interconnect pipeline stages

Multiple Warp IPs sharing access to memory

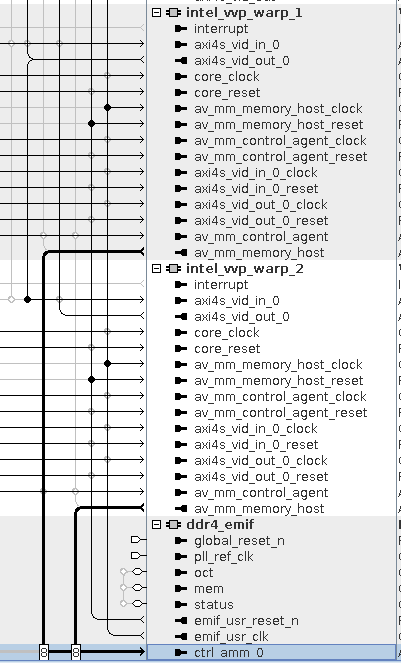

Figure 160.  Multiple Warp IPs sharing access to memory The figure shows an example with two Warp IPs that share a DDR4 interface. To match the burst access patterns of the Warp IP, set the arbitration values at the combining interface to 8.

Example system running at UHD 120 fps or 8K 30 fps

In this example system the Warp IP accesses a DDR4 interface in a system that processes UHD frames at 120 fps or 8K frames at 30 fps. The system runs on an Agilex 7 I-Series Transceiver-SoC Development Kit with the DDR4 EMIF running a 2,666 Mbps interface to a DDR4 memory. This speed of DDR4 interface gives a memory clock speed of 333 MHz.

For this system to work:

  • Set the arbitration weighting at the front end of the DDR4 EMIF to 16:1 in favor of the Warp IP (versus the processor).
  • Set the maximum pending read transactions parameter in the pipelined transfers section of the Avalon memory-mapped ports to be at 64.
  • Set limit interconnect pipeline stages to for the domain at the front end of the DDR4 EMIF to 4. This limit helps to meet timing on the memory interface clock domain.
  • Configure the Warp IP with 4 pixels in parallel with 4 engines while using Memory frame buffer size set to 8K..
  • Run the Warp IP's video interface and core processing clocks at 600 MHz. This speed ensures the stable operation of the video output with the higher bandwidth requirement of 4K120 or 8k30 operation.
Level Two Title
