21.2. Video Frame Buffer IP Parameters

The IP offers compile-time parameters.
Parameter Values Description
Video Data Format
Bits per color sample 8 to 16 Select the number of bits per color sample.
Number of color planes 1 to 4 Select the number of color planes per pixel.
Number of pixels in parallel 1 to 8 Select the number of pixels in parallel.
Maximum Frame Size
Maximum field height 32 to 16384 Select the maximum height of incoming frames.
Maximum field width 32 to 16384 Select the maximum width of incoming frames. If you use the IP exclusively to buffer frames with 420 sub-sampling, optionally halve the maximum field width entry in the GUI. Halving the entry optimizes memory footprint because of the more efficient 420 pixel-packing.
Buffer Behavior
Enable dropping of input frames On or off Turn on to drop input frames. Turn on for triple-buffering; turn off for double buffering.
Enable repeating of output frames On or off Turn on to repeat input frames. Turn on for triple-buffering; turn off for double buffering.
Enable the dropping of broken frames at the input On or off Turn on to drop broken frames. When off, the IP stores any broken frames.
Drop/repeat aux control metapackets with their associated frame On or off Turn on if you want the IP to drop and repeat any associated auxiliary control packets with their frame. When off, these packets still buffer even if the IP drops their associated frame.
Aux control metapacket local storage 0, 8, 16, 32, 64, 128, 256

Determines the total amount of local buffering provided for timestamp and other auxiliary control packets. If the IP encounters more control packets, it deletes older packets. Selecting 8 allows the IP to store 8 4-beat control packets (regardless of which frame they arrive with) or 16 2-beat, or 32 1-beat.

Set this parameter to 0 if you do not require support for auxiliary control packets.
Control
Lite mode On or off Turn on to operate the frame buffer in lite mode.
Memory-mapped control interface On or off

Turn on to read frame statistics and turn the frame buffer on and off using an Avalon memory-mapped interface.

The memory-mapped control interface is mandatory in lite mode.
Separate clock for control interface On or off Turn on for a separate clock for the control interface.
Debug features On or off Turn on for debug features (not applicable for lite mode).
Memory
Avalon memory mapped host(s) local ports width 16, 32, 64, 128, 256, 512, 1024 Select in bits the width of the Avalon memory-mapped host read and write ports.
Avalon memory mapped host(s) local ports address width 8 to 32 Select in bits the width of the Avalon memory-mapped host read and write ports. It must be sufficient to fully address the last buffer.
The depth of the write FIFO 32, 64, 128, 256, 512, 1024, 2048 Specify the depth of the write FIFO buffer. Each FIFO buffer entry holds one word the width of the specified Avalon memory mapped local port width. You must specify a FIFO depth of at least twice the specified burst target so that at least 2 bursts can be held at any one time. Increase the FIFO depth to improve resilience to latency on the Avalon memory mapped bus.
Avalon memory mapped write burst target 2,4,8,16,32,64 Select the burst target for writes. Longer bursts provide more efficiency on the bus but require more local storage in the write FIFO buffer.
The depth of the read FIFO 32,64,128,256,512,1024,2048 Specify the depth of the read FIFO buffer. Each FIFO buffer entry holds one word the width of the specified Avalon memory mapped local port width. You must specify a FIFO depth of at least twice the specified burst target so that at least 2 bursts can be held at any one time. Increase the FIFO depth to improve resilience to latency on the Avalon memory mapped bus.
Avalon memory mapped read burst target 2,4,8,16,32,64 Select the burst target for reads. Longer bursts provide more efficiency on the bus but require more local storage in the read FIFO buffer.
Frame buffer memory base address 0x0000_0000 – 0x7FFF_FFFF Select the base address for the frame buffer to store frames.
Inter-buffer stride Depends on video frame format and maximum frame size. Set a stride (in bytes) large enough to separate frames of the specified maximum height and width. The GUI gives an error if the stride is too low.
Inter-line stride Depends on video frame format and maximum frame width. Set a stride (in bytes) large enough to separate lines of the specified maximum width. The GUI gives an error if the stride is too low.
Packing method Perfect, color or pixel Perfect packing minimizes memory footprint of stored frames but increases complexity and therefore size of the frame buffer slightly. Color packing leaves spaces in memory between colors if colors do not pack into memory words exactly. Pixel packing leaves spaces in memory between pixels if pixels do not pack into memory words exactly.
Separate clock for the Avalon memory mapped host interface(s) On or off A separate clock allows the control and data portions of the frame buffer to run at their maximum clock frequencies. Turn on separate clocks for highest performance.

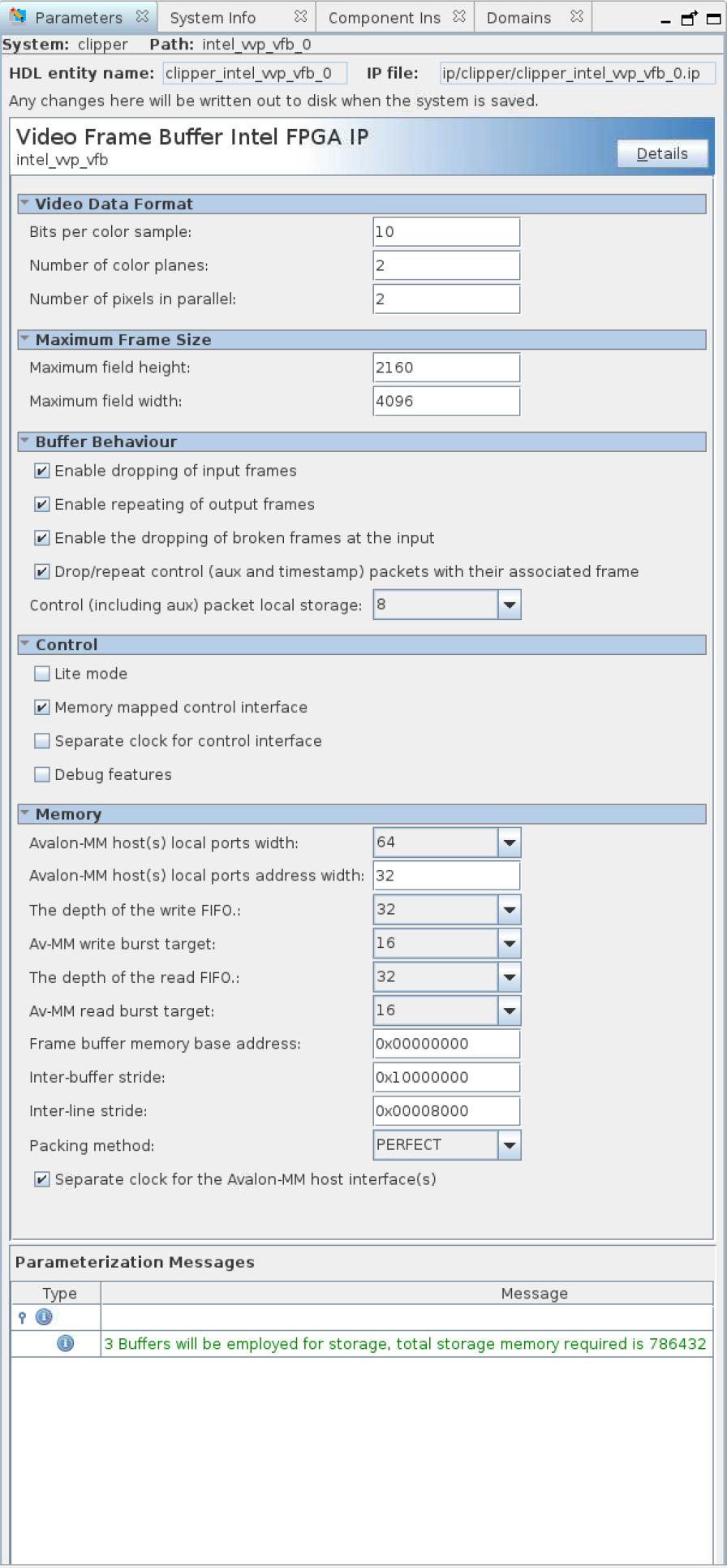

Figure 43. Frame Buffer GUI
