Applying Double-Buffering Using the Intercept Layer for OpenCL* Applications

The Intercept Layer for OpenCL* Applications is an open-source tool that you can use to profile oneAPI designs at a system-level. Although it is not part of the Intel® oneAPI Base Toolkit installation, it is freely available on GitHub*. For more information, refer to System-level Profiling Using the Intercept Layer for OpenCL* Applications.

The double-buffering optimization can help minimize or remove gaps between consecutive kernels as they wait for host processing to finish. These gaps are minimized or removed by having the host perform processing operations on a second set of buffers while the kernel executes. With this execution order, the host processing is done by the time the next kernel can run, so kernel execution is not held up waiting for the host. For additional information, refer to the FPGA tutorial sample "Double Buffering" listed in the Intel® oneAPI Samples Browser on Linux* or Windows*, or access the code sample on GitHub.

In this example, the first three kernels are run without the double-buffer optimization, and the next three are run with it. The kernels were run on an Intel® Programmable Acceleration Card with Intel® Arria® 10 GX FPGA when the intercept layer data was collected. The change made by this optimization can be clearly seen in the Intercept Layer for OpenCL* Applications trace:

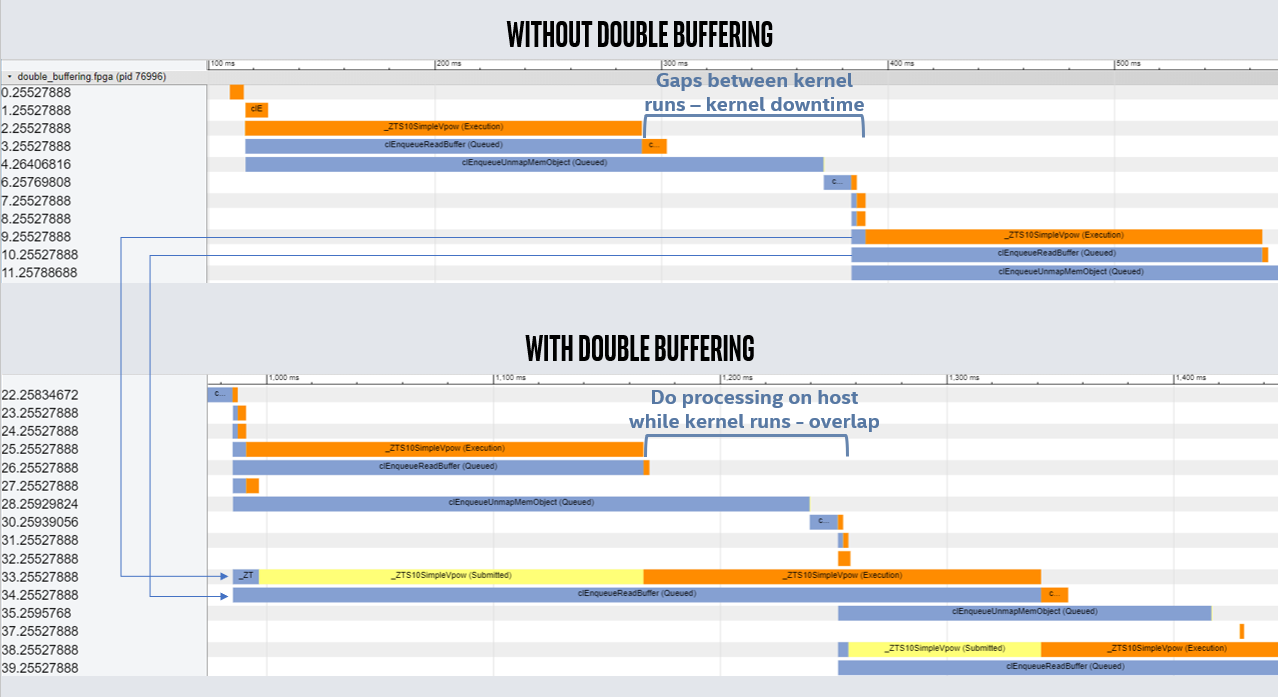

OpenCL Intercept Layer - With and Without Double Buffering

Here, the kernel runs named _ZTS10SimpleVpow can be recognized as the bars with the largest execution time (the large orange bars). Double buffering removes the gaps between the kernel executions that can be seen in the top trace image. This optimization improves the throughput of the design.

The Intercept Layer for OpenCL* Applications makes the need for and benefits of the optimization clear. Use the Intercept Layer tool on your designs to identify scenarios where you can apply double buffering (and other optimizations).

Parent topic: Double Buffering Host Utilizing Kernel Invocation Queue
