Troubleshooting for Robot Orchestration Tutorials

Setting a Static IP

Depending on your network setup, there are multiple ways to set a static IP.

In a home network, check your local router on how to set static IP on your device using your MAC address.
In a corporate network, please check with your local IT on how to set a static IP on a system.

Another option is to set it from your system’s Operating System. A good tutorial on how to set a static IP using netplan can be found here.

Remember to run netplan apply after you are finished with the configuration.

Make sure you that your system has the correct date:
```
date
```
If the date is incorrect, contact your local support team for help setting the correct date and time.
To find the gateway:
```
ip route | grep default
```
To find the name servers, find your interface name and replace it below:
```
nmcli device show <interface name> | grep IP4.DNS
```

virtualenv Error

If the following error is displayed:

Virtualenv location:
Warning: There was an unexpected error while activating your virtualenv. Continuing anyway…
Traceback (most recent call last):
File "./deploy.py", line 24, in <module>
from scripts import log_all
ImportError: cannot import name 'log_all' from 'scripts' (/home/test/.local/lib/python3.8/site-packages/scripts/__init__.py)

Remove the ~/.local/lib/python3.8/ directory and run the following commands:

pip install --user -U pip
pip freeze --user | cut -d'=' -f1 | xargs pip install --user -U

termcolor Error

If the following error is displayed:

Failed to install termcolor. b'/usr/local/lib/python3.8/dist-packages/pkg_resources/__init__.py:122:

python3 -m pip uninstall setuptools
python3 -m pip install setuptools

Restart the target and run:

python3 -m pip install --upgrade setuptools

Failed OpenSSL Download

If the following error is displayed:

FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (4 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (4 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (3 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (3 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (2 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (2 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (1 retries left).
FAILED - RETRYING: OpenSSL download from https://www.openssl.org/source/openssl-1.1.1i.tar.gz (1 retries left)

Run the following commands:

wget --directory-prefix=/tmp http://certificates.intel.com/repository/certificates/IntelSHA2RootChain-Base64.zip

sudo unzip -o /tmp/IntelSHA2RootChain-Base64.zip -d /usr/local/share/ca-certificates/

rm /tmp/IntelSHA2RootChain-Base64.zip

update-ca-certificates

“Isecl control plane IP not set” Error

If the following error is displayed:

TASK [Check control plane IP] ***************************************************************************************************************************************************************************************************************
task path: /root/dek/roles/security/isecl/common/tasks/precheck.yml:7
Wednesday 16 February 2022  15:36:34 +0000 (0:00:00.047)       0:00:05.373 ****
fatal: [node01]: FAILED! => {
   "changed": false
}

MSG:

Isecl control plane IP not set!
fatal: [node02]: FAILED! => {
   "changed": false
}

MSG:

Isecl control plane IP not set!
fatal: [controller]: FAILED! => {
   "changed": false
}

MSG:

Isecl control plane IP not set!

Update the ~/dek/inventory/default/group_vars/all/10-default.yml file with:

# Install isecl attestation components (TA, ihub, isecl k8s controller and scheduler extension)
platform_attestation_node: false

“PCCS IP address not set” Error

If the following error is displayed:

TASK [Check PCCS IP address] ****************************************************************************************************************************************************************************************************************
task path: /root/dek/roles/infrastructure/provision_sgx_enabled_platform/tasks/param_precheck.yml:7
Wednesday 16 February 2022  15:39:59 +0000 (0:00:00.060)       0:00:05.688 ****
fatal: [node01]: FAILED! => {
   "changed": false
}

MSG:

PCCS IP address not set!
fatal: [node02]: FAILED! => {
   "changed": false
}

MSG:

PCCS IP address not set!
fatal: [controller]: FAILED! => {
   "changed": false
}

MSG:

PCCS IP address not set!

Update the ~/dek/inventory/default/group_vars/all/10-default.yml file with:

### Software Guard Extensions
# SGX requires kernel 5.11+, SGX enabled in BIOS and access to PCC service
sgx_enabled: false

“no supported NIC is selected” Error

If the following error is displayed:

sriovnetwork.sriovnetwork.openshift.io/sriov-vfio-network-c1p1 unchanged
STDERR:
Error from server (no supported NIC is selected by the nicSelector in CR sriov-netdev-net-c0p0): error when creating "sriov-netdev-net-c0p0-sriov_network_node_policy.yml": admission webhook "operator-webhook.sriovnetwork.openshift.io" denied the request: no supported NIC is selected by the nicSelector in CR sriov-netdev-net-c0p0
Error from server (no supported NIC is selected by the nicSelector in CR sriov-netdev-net-c1p0): error when creating "sriov-netdev-net-c1p0-sriov_network_node_policy.yml": admission webhook "operator-webhook.sriovnetwork.openshift.io" denied the request: no supported NIC is selected by the nicSelector in CR sriov-netdev-net-c1p0
Error from server (no supported NIC is selected by the nicSelector in CR sriov-vfio-pci-net-c0p1): error when creating "sriov-vfio-pci-net-c0p1-sriov_network_node_policy.yml": admission webhook "operator-webhook.sriovnetwork.openshift.io" denied the request: no supported NIC is selected by the nicSelector in CR sriov-vfio-pci-net-c0p1
Error from server (no supported NIC is selected by the nicSelector in CR sriov-vfio-pci-net-c1p1): error when creating "sriov-vfio-pci-net-c1p1-sriov_network_node_policy.yml": admission webhook "operator-webhook.sriovnetwork.openshift.io" denied the request: no supported NIC is selected by the nicSelector in CR sriov-vfio-pci-net-c1p1

Update the ~/dek/inventory/default/group_vars/all/10-default.yml file with:

sriov_network_operator_enable: false

## SR-IOV Network Operator configuration
sriov_network_operator_configure_enable: false

“Unexpected templating type error”

If the following error is displayed:

MSG:
AnsibleError: Unexpected templating type error occurred on (# SPDX-License-Identifier: Apache-2.0
# Copyright (c) 2020 Intel Corporation
apiVersion: v1
kind: ConfigMap
metadata:
   name: grafana-datasources
   namespace: telemetry
   labels:
      grafana_datasource: '1'
data:
   prometheus-tls.yaml: |-
      apiVersion: 1
      datasources:
      - name: Prometheus-TLS
         access: proxy
         editable: true
         orgId: 1
         type: prometheus
         url: https://prometheus:9099
         withCredentials: true
         isDefault: true
         jsonData:
            tlsAuth: true
            tlsAuthWithCACert: true
         secureJsonData:
            tlsCACert: |
               {{ telemetry_root_ca_cert.stdout | trim | indent(width=13, indentfirst=False) }}
            tlsClientCert: |
               {{ telemetry_grafana_cert.stdout | trim | indent(width=13, indentfirst=False) }}
            tlsClientKey: |
               {{ telemetry_grafana_key.stdout | trim | indent(width=13, indentfirst=False) }}
         version: 1
         editable: false
): do_indent() got an unexpected keyword argument 'indentfirst'

Update the ~/dek/roles/telemetry/grafana/templates/prometheus-tls-datasource.yml file with:

-             {{ telemetry_root_ca_cert.stdout | trim | indent(width=13, indentfirst=False) }}
+             {{ telemetry_root_ca_cert.stdout | trim | indent(width=13, first=False) }}
-             {{ telemetry_grafana_cert.stdout | trim | indent(width=13, indentfirst=False) }}
+             {{ telemetry_grafana_cert.stdout | trim | indent(width=13, first=False) }}
-             {{ telemetry_grafana_key.stdout | trim | indent(width=13, indentfirst=False) }}
+             {{ telemetry_grafana_key.stdout | trim | indent(width=13, first=False) }}

“Wait till all Harbor resources ready” Message

If the following log is displayed:

TASK [kubernetes/cni : Wait till all Harbor resources ready] ********************************************************************************************************************************************************************************
task path: /home/user/dek/roles/kubernetes/cni/tasks/main.yml:20
Tuesday 16 November 2021 14:41:58 +0100 (0:00:00.070) 0:04:39.646 ******
FAILED - RETRYING: Wait till all Harbor resources ready (60 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (59 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (58 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (57 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (56 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (55 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (54 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (53 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (52 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (51 retries left).
FAILED - RETRYING: Wait till all Harbor resources ready (50 retries left).

Wait approximately 30 minutes. The Intel® Smart Edge Open deployment script waits for the Harbor resources to be ready.

Installation Stuck

If the installation remains stuck with the following log:

TASK [infrastructure/os_setup : enable UFW] *************************************************************************************************************************************************************************************************
task path: /root/dek/roles/infrastructure/os_setup/tasks/ufw_enable_debian.yml:12
Wednesday 16 February 2022  15:53:04 +0000 (0:00:01.627)       0:08:03.425 ****
NOTIFIED HANDLER reboot server for controller
changed: [controller] => {
   "changed": true,
   "commands": [
      "/usr/sbin/ufw status verbose",
      "/usr/bin/grep -h '^### tuple' /lib/ufw/user.rules /lib/ufw/user6.rules /etc/ufw/user.rules /etc/ufw/user6.rules /var/lib/ufw/user.rules /var/lib/ufw/user6.rules",
      "/usr/sbin/ufw -f enable",
      "/usr/sbin/ufw status verbose",
      "/usr/bin/grep -h '^### tuple' /lib/ufw/user.rules /lib/ufw/user6.rules /etc/ufw/user.rules /etc/ufw/user6.rules /var/lib/ufw/user.rules /var/lib/ufw/user6.rules"
   ]
}

MSG:

Status: active
Logging: on (low)
Default: deny (incoming), allow (outgoing), deny (routed)
New profiles: skip

To                         Action      From
--                         ------      ----
22/tcp                     ALLOW IN    Anywhere
22/tcp (v6)                ALLOW IN    Anywhere (v6)

Type Ctrl-c, and restart the installation. (Run the ./deploy.sh script again.)

Pod Remains in “Terminating” State after Uninstall

After uninstall, if the pod does not stop but remains in “Terminating” state, enter the following commands:

kubectl get pods -n fleet-management
kubectl delete -n <pod_name_from_above_command> --grace-period=0 --force
ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_uninstall.yaml

docker-compose Failure

If you see an error message that docker-compose fails with some variables not defined, add the environment variables to .bashrc so that they are available to all terminals:

export DOCKER_BUILDKIT=1
export COMPOSE_DOCKER_CLI_BUILD=1
export DOCKER_HOSTNAME=$(hostname)
export DOCKER_USER_ID=$(id -u)
export DOCKER_GROUP_ID=$(id -g)
export DOCKER_USER=$(whoami)
# Check with command
env | grep DOCKER

Keytool Not Installed

The keytool utility is used to create the certificate store. Install any preferred Java* version. For development, Intel used:

sudo apt install default-jre
# Check your Java version:
java -version

Corrupt Database or Nonresponsive Server

Reset the ThingsBoard* server with the following steps.

Uninstall the playbook:

ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_uninstall.yaml

After uninstalling the playbook, wait several seconds for all fleet related containers to stop. Verify that there are no fleet containers running:
```
docker ps | grep fleet
```

Reinstall the playbook:

ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_install.yaml

ThingsBoard* Server Errors

These errors can be fixed directly on the hosting machine using Docker* Compose. However, this requires automated steps using Ansible* playbooks, so try these fixes last.

Reset the database to a pristine state (without customizations from Intel):

# delete database and start the server
# The state of server will be - without any customization from Intel.
sudo rm -rf ~/.mytb-data/db ~/.mytb-data/.firstlaunch ~/.mytb-data/.upgradeversion
docker-compose -f 01_docker_sdk_env/docker_compose/02_edge_server/edge-server.all.yml down
CHOOSE_USER=thingsboard docker-compose -f 01_docker_sdk_env/docker_compose/02_edge_server/edge-server.all.yml up fleet-management

NOTE:

This only restarts the ThingsBoard* server, without Intel® Smart Edge Open.

Reset the database to the preconfigured state (with customizations from Intel), and restart the server:

# Start the server with old/corrupted database
CHOOSE_USER=thingsboard docker-compose -f 01_docker_sdk_env/docker_compose/02_edge_server/edge-server.all.yml up fleet-management
# attach to running container from another terminal:
docker exec -it  edge-server-sdk-fleet-management bash

# inside the container: replace the database with Intel-customized-database:
# Just press tb<tab>. The tb-server-reset-db.sh is present in /usr/local/bin folder, so it is accessible from anywhere.
tb-server-reset-db.sh
# When asked press y and enter. Done.
# Now exit the container. and run below commands again to re-launch the server with preconfigured-state of database (With Intel Customizations):
docker-compose -f 01_docker_sdk_env/docker_compose/02_edge_server/edge-server.all.yml down
CHOOSE_USER=thingsboard docker-compose -f 01_docker_sdk_env/docker_compose/02_edge_server/edge-server.all.yml up fleet-management

NOTE:

This only restarts the ThingsBoard* server, without Intel® Smart Edge Open.

When you deploy the ThingsBoard* container using Intel® Smart Edge Open Ansible* playbook, sometimes the server cannot start due to following error:

edge-server-sdk-fleet-management | 2021-11-25 15:24:34,345 [main] ERROR com.zaxxer.hikari.pool.HikariPool - HikariPool-1 - Exception during pool initialization.
edge-server-sdk-fleet-management | org.postgresql.util.PSQLException: Connection to localhost:5432 refused. Check that the hostname and port are correct and that the postmaster is accepting TCP/IP connections.
edge-server-sdk-fleet-management |      at org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl(ConnectionFactoryImpl.java:303)
edge-server-sdk-fleet-management |      at org.postgresql.core.ConnectionFactory.openConnection(ConnectionFactory.java:51)
edge-server-sdk-fleet-management |      at org.postgresql.jdbc.PgConnection.<init>(PgConnection.java:223)
edge-server-sdk-fleet-management |      at org.postgresql.Driver.makeConnection(Driver.java:465)
edge-server-sdk-fleet-management |      at org.postgresql.Driver.connect(Driver.java:264)

If, after waiting for some time, the server is not up and running, and the server URL localhost:9090 is not showing the server page, uninstall and reinstall the playbook:

ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_uninstall.yaml
ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_install.yaml

Result: The database is reset to the preconfigured database provided by Intel.

Fleet Management Server Dashboard over LAN Issues

If the Dashboard is not accessible from the client, the first step is to make sure that the client and server nodes are in the same subnet. This helper page can be used to find out: https://www.meridianoutpost.com/resources/etools/network/two-ips-on-same-network.php

If the client and server are in the same subnet, then it is possible that you are using proxies that prevent the connection. To check this on Linux, run the following command:

wget -q -T 3 -t 3 --no-proxy http://<IP>:9090/ && echo "COMMAND PASSED"

Where <IP> is the IP of your server.

If COMMAND PASSED is displayed, then you should configure your browser to NOT use proxy when accessing the IP/hostname of the server.

Playbook Install Errors

If you start the basic fleet management server right after a server reboot, you may encounter the error:

fatal: [localhost]: FAILED! => {"changed": false, "msg": "Logging into 10.237.22.88:30003 for user admin
failed - 500 Server Error for http+docker://localhost/v1.41/auth: Internal Server Error
(\"Get \"https://10.237.22.88:30003/v2/\": dial tcp 10.237.22.88:30003: connect: connection refused\")"}

Wait two minutes until the server is up and running.
Verify that all pods are running and no errors are reported:
```
kubectl get all -A
```

After all pods and services are up and running, restart the basic fleet management server:

ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/fleet_management/fleet_management_playbook_install.yaml

Battery Status Not Available in Dashboard

To verify that the battery is correctly reported by the robot, check it on the client side:

python
>>> import psutil
>>> battery = psutil.sensors_battery()
>>> print("Battery percentage : ", battery.percent)
Battery percentage : 43

When the battery bridge is installed in robot, the 2 commands below are equivalent. So when you launch kobuki node, it publishes battery percentage in topic /sensors/battery_state. You can also do the same using the ros2 topic pub command.

# Publish battery status
ros2 topic pub /sensors/battery_state  sensor_msgs/msg/BatteryState "{percentage: 10}"
# or
launch kobuki image
source ros_entrypoint.sh
ros2 launch kobuki_node kobuki_node-composed-launch.py

Add New Clients to the Fleet Management Server

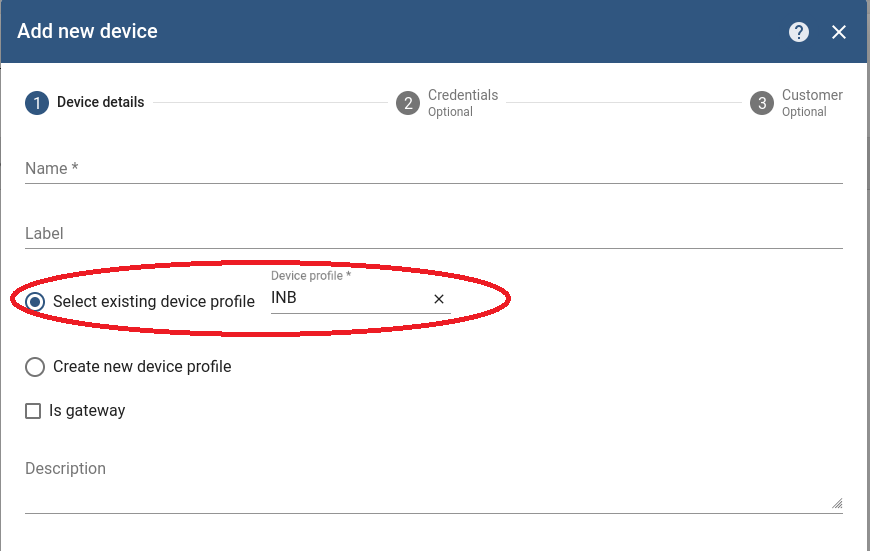

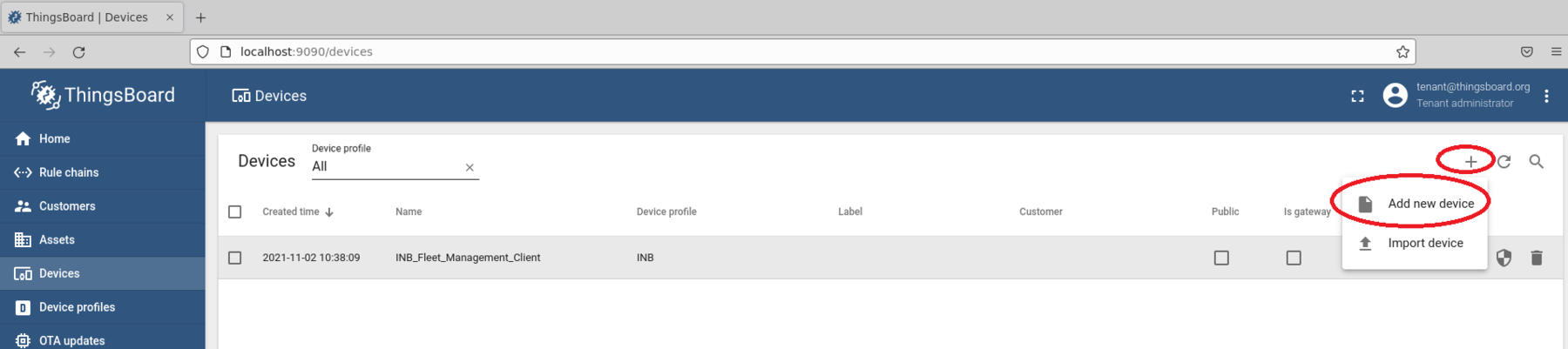

New devices can be created when more basic fleet management clients are going to be deployed. Remember to specify the Device Profile with which to associate the Device. It impacts the associated Rule Chain too.

For configuring new basic fleet management clients (1-to-1 mapping), the new tokens of the new Devices can be retrieved with Copy access token.

battery-bridge-kernel-module Install Failure

Follow the steps below:

cd components/amr_battery_bridge_kernel_module/src/
# uninstall battery-bridge-kernel-module
sudo ./module_install.sh -u
# check if below path exists
ls /sys/class/power_supply/BAT0

If the above path exists, then there is another kernel module occupying the place already and provided battery-bridge-kernel-module can not be installed.

In this case, the provided solution does work.

Pod Remains in “Terminating” State after Uninstall

After uninstall, if the pod does not stop but remains in a “Terminating” state, enter the following commands:

kubectl get pods -n ovms-tls
kubectl delete -n <pod_name_from_above_command> --grace-period=0 --force
ansible-playbook AMR_server_containers/01_docker_sdk_env/docker_orchestration/ansible-playbooks/02_edge_server/openvino_model_server/ovms_playbook_uninstall.yaml
