Overview

Intel® Edge Software Device Qualification (Intel® ESDQ) for EI for AMR provides customers with the capability to run an Intel provided test suite at the target system, with the goal of enabling partners to determine their platform’s compatibility with the EI for AMR.

The target of this self certification suite is the EI for AMR compute systems. These platforms are the brain of the Robot Kit. They are responsible to get input from sensors, analyze them, and give instructions to the motors and wheels to move the EI for AMR.

How It Works

The EI for AMR Test Modules interacts with the Intel® ESDQ CLI through a common test module interface (TMI) layer which is part of the Intel® ESDQ binary. Intel® ESDQ generates a complete test report in HTML format, along with detailed logs packaged as one zip file, which you can manually choose to email to: Edge.Software.Partners@intel.com

Intel® ESDQ for EI for AMR contains the following test modules.

• Docker* Container

  This module verifies that the EI for AMR comes as a Docker* container and it can run on the target platform.

  For more information, go to the Docker* website.

  The test is considered Pass if:

  • The Docker* container can be opened.

• Intel® RealSense™ Camera

  This module verifies the capabilities of the Intel® RealSense™ technology on the target platform.

  For more information, go to the Intel® RealSense™ website.

  The tests within this module verify that the following features are installed properly on the target platform and that EI for AMR and the Intel® RealSense™ camera are functioning properly:

  • The camera is detected and is working.

  • Intel® RealSense™ SDK.

  The tests are considered Pass if:

  • The Intel® RealSense™ SDK 2.0 libraries are present in Docker* container.

  • A simple C++ file can be compiled using g++ and -lrealsense2 flag.

  • Intel® RealSense™ Topics are listed and published.

  • The number of FPS (Frames Per Second) are as expected.

• Intel® VTune™ Profiler

  This module runs the Intel® VTune™ Profiler on the target system.

  For more information, go to the Intel® VTune™ Profiler website.

  The test is considered Pass if:

  • VTune™ Profiler runs without errors.

  • VTune™ Profiler collects Platform information.

• rviz2 and Fast Mapping

  This module runs the Fast Mapping application (the version of octomap optomized for Intel) on the target system and uses rviz2 to verify that it works as expected.

  For more information, go to the rviz wiki.

  The test is considered Pass if:

  • Fast Mapping is able to create a map out of a pre-recorded ros2 bag.

• Turtlesim

  This module runs the Turtlesim ROS2 application on the target system and checks if it works as expected.

  For more information, go to the Turtlesim wiki.

  The test is considered Pass if:

  • Turtlesim opens and runs without error.

• Intel® oneAPI Base Toolkit

  This module verifies some basic capabilities of Intel® oneAPI Base Toolkit on the target platform.

  For more information, go to the Intel® OneAPI Base Toolkit website.

  The tests within this module verify that the following features are functioning properly on the target platform:

  • DPC++ compiler

  • CUDA to DPC++ converter

  This test is considered Pass if:

  • A simple C++ file can be compiled using the DPC++ compiled and it runs as expected.

  • CUDA can be installed.

  • A CUDA specific file can be converted to DPC++ and it runs as expected.

• OpenVINO™ Toolkit

  This module verifies two core features of the OpenVINO™ Toolkit:

  • OpenVINO™ model optimizer

  • Object detection using TensorFlow*

  The test is considered Pass if:

  • The OpenVINO™ model optimizer is capable to transform a TensorFlow model to an Intermediate Representation (IR) of the network, which can be inferred with the Inference Engine.

• Object Detection on CPU

  This module verifies object detection using OpenVINO™ on CPU.

  The test is considered Pass if:

  • The object is detected.

  If the test is failed, you can check the expected picture and the actual picture obtained by the test.

• Object Detection on VPU

  This module verifies object detection using OpenVINO™ on VPU.

  The test is considered Pass if:

  • The object is detected.

  If the test is failed, you can check the expected picture and the actual picture obtained by the test.

• Object Detection on Intel® Movidius™ Myriad™ X VPU

  This module verifies object detection using OpenVINO™ on Intel® Movidius™ Myriad™ X VPU.

  The test is considered Pass if:

  • The object is detected.

  If the test is failed, you can check the expected picture and the actual picture obtained by the test.

• GStreamer* Video

  This module verifies if a GStreamer* Video Pipeline using GStreamer* Plugins runs on the target system.

  The test is considered Pass if:

  • The Video Pipeline was opened on the host without errors.

• GStreamer* Audio

  This module verifies if a GStreamer* Audio Pipeline using GStreamer* Plugins runs on the target system.

  The test is considered Pass if:

  • The Audio Pipeline was opened on the host without errors.

• GStreamer* Autovideosink Plugin - Display

  This module verifies if a stream from a camera compatible with libv4l2 can be opened and displayed using GStreamer*.

  The test is considered Pass if:

  • No Error messages are displayed while running the gst-launch command.

  This test may FAIL, or it may be skipped if the target system does not have a Web Camera connected.

• GStreamer* Intel® RealSense™ Video Plugin

  This module verifies if a GStreamer* Video Pipeline using the Intel® RealSense™ Plugin runs on the target system.

  The test is considered Pass if:

  • No Error messages are displayed while running the gst-launch command.

  This test may FAIL, or it may be skipped if the target system does not have a Intel® RealSense™ Camera connected.

• ADBSCAN

  This module verifies if the ADBSCAN algorithm works on the target system.

  The test is considered Pass if:

  • The ADBSCAN algorithm works on the target system.

• Collaborative SLAM

  This module verifies if the collaborative SLAM algorithm works on the target system.

  The test is considered Pass if:

  • The collaborative SLAM algorithm works on the target system.

Get Started

This step-by-step guide takes you through installing the Intel® ESDQ CLI tool, which is installed as part of the EI for AMR. Refer to the How It Works section before you get started with the installation. To use these instructions, you must download the Edge Insights for Autonomous Mobile Robots package. You can download the default packages or you can customize the package download depending upon your needs.

Download and Install Intel® ESDQ for EI for AMR

Intel® ESDQ is optionally bundled with EI for AMR solutions.

1. Download a configuration that includes Intel® ESDQ.

   1. Go to the Product Download page.

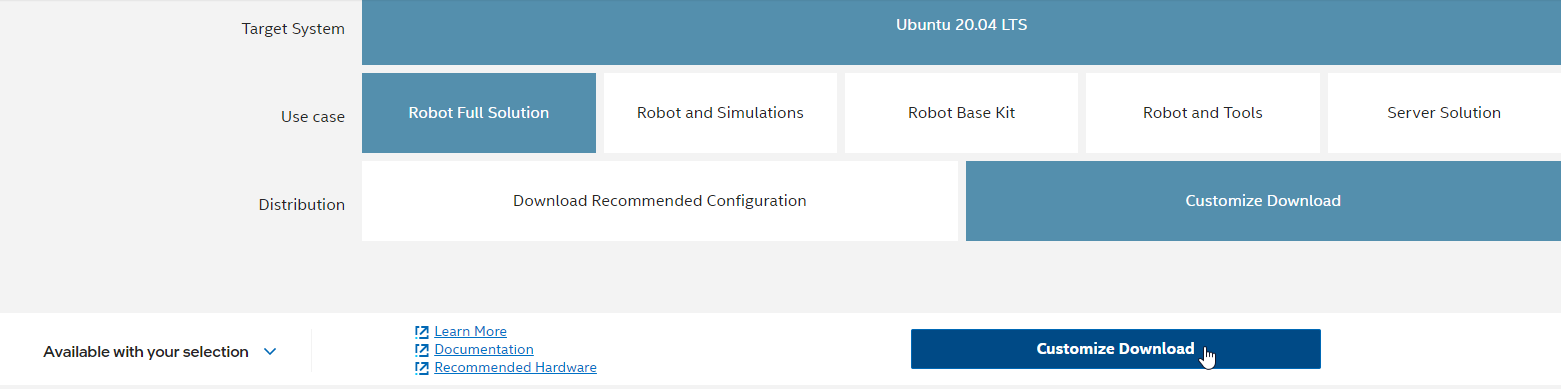

   2. Select Robot Complete Kit, Server Complete Kit, or Robot and Sever Complete Kit.

   3. Select Customize Download.



   4. Click Next, until you get to step 4.

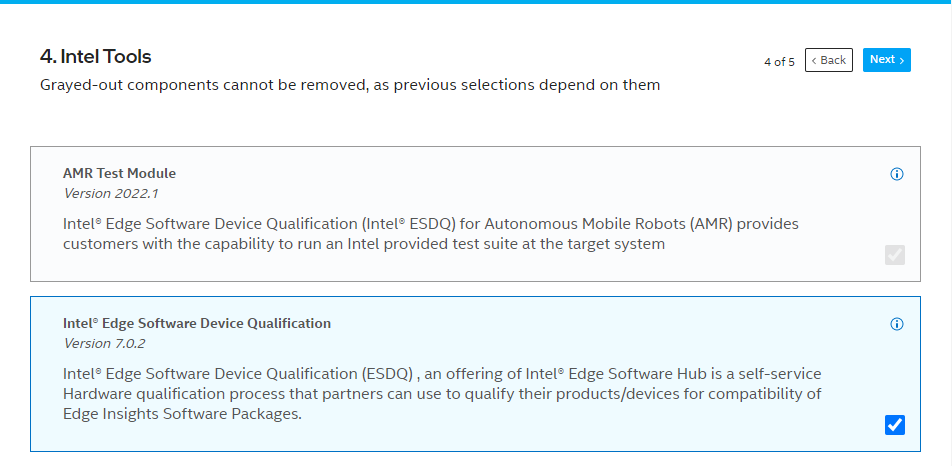

   5. On the Reference Implementations page, make sure that Intel® Edge Software Device Qualification is checked.



   6. Click Next until you get to the Download page, and click on Download.

2. Follow the steps in the Get Started Guide for Robots to extract and install EI for AMR.

Run the Application

1. Change the directory:

   cd $HOME/edge_software_device_qualification/Edge_Software_Device_Qualification_For_AMR_*/esdq

2. Unzip the ROS 2 bags used in the tests:

   unzip ../AMR_containers/01_docker_sdk_env/docker_compose/06_bags.zip -d ../AMR_containers/01_docker_sdk_env/docker_compose/

3. Run the Intel® ESDQ test, and generate the report:

   ./esdq run -r

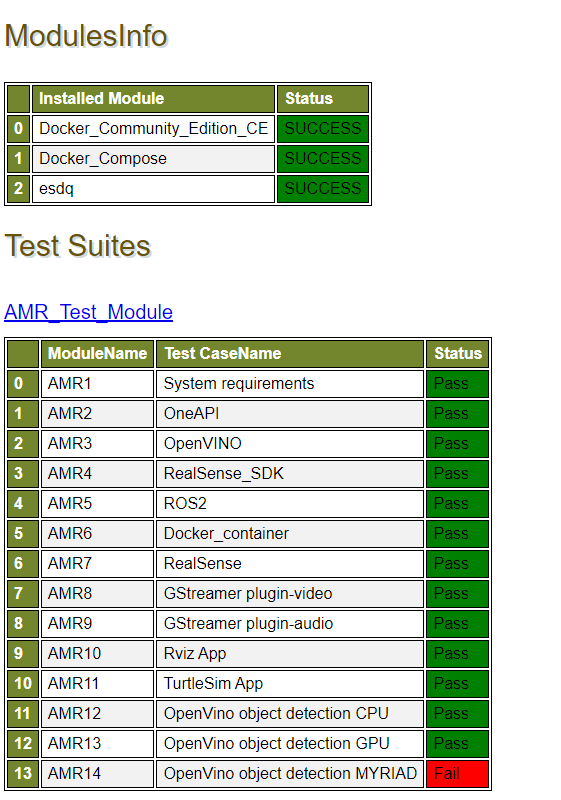

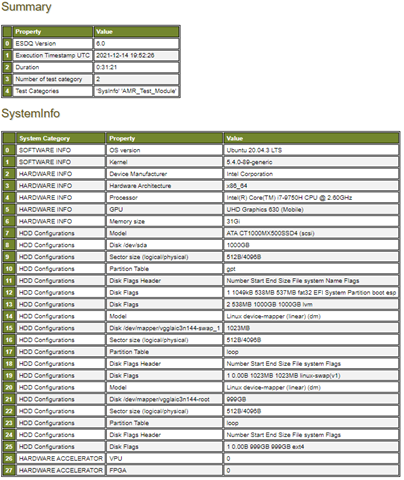

   Expected output (These results are for illustration purposes only.)


   NOTE:

   The OpenVINO™ Object Detection Myriad Test Failure above is shown for demonstration purposes only. The test is expected to pass.

Send Results to Intel

Once all the automated and manual tests are executed successfully, you can submit your test results and get your devices listed on the Intel® Edge Software Recommended Hardware site.

Send the zip file that is created after running Intel® ESDQ tests to: Edge.Software.Partners@intel.com.

For example, after one of our local runs the following file was generated: esdqReport_2022-03-09_13:22:28.zip

Troubleshooting

For issues, go to: Troubleshooting for Robot Tutorials.

Support Forum

If you’re unable to resolve your issues, contact the Support Forum.
