3.4. Setting Up your Development Board for the Drive-on-Chip Design Example for Intel Agilex 7 Devices

Configure the board switches for the design. Do not use SD card (daughter card) for this design.
Set the following switch positions:
SW1: ON-OFF-OFF-ON
SW2: all OFF
SW3: OFF-OFF-ON-ON-ON-ON -ON -ON
SW4: OFF-OFF-OFF-ON
SW5: all OFF
SW6: OFF-OFF-OFF-ON
SW9: OFF-OFF
SW10: OFF-ON

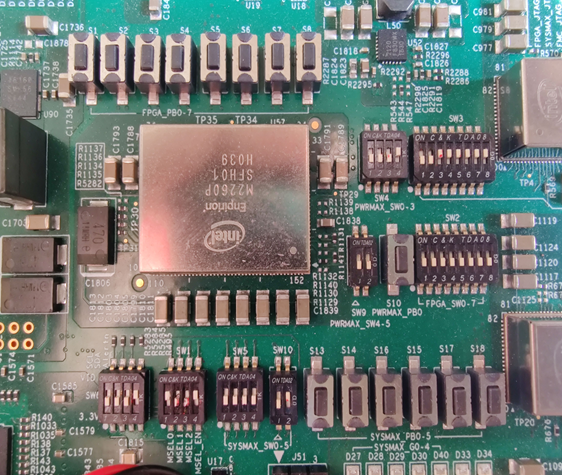

Figure 4. Switch positions
