4.4.4. Receiver Jitter Tolerance

Receiver jitter tolerance must meet the conditions and parameters defined in the following table. This sinusoidal jitter is part of the jitter applied in the stressed input test. The receiver BER must be less than the maximum value for each pair of jitter frequency and peak-to-peak amplitude value listed in the table and figure below.

Table 12.  Receiver Jitter Tolerance Parameters
Frequency Range Sinusoidal Jitter, Peak-to-Peak (UI)
f < fb/664000 Not Specified
fb/664000 < f ≤ fb/6640 5 * fb / (664000 * f)
fb/6640 < f ≤ 10 times receiver loop bandwidth (fb/6640) 0.05

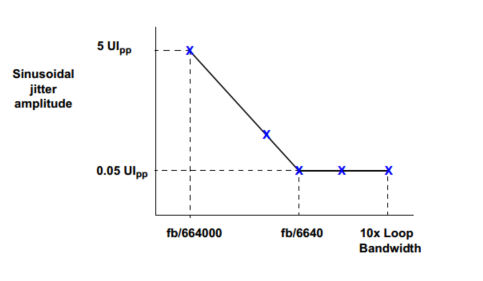

Figure 26. Receiver Jitter Tolerance Mask
