5.1.1. Channel Characteristics

The following figure shows the characteristics of a channel used in the experiments. The channel’s insertion loss (IL) is ~22.76 dB at 14.0 GHz and~38 dB at 25 GHz. The insertion loss deviation (ILD) characteristics show that it has narrow (<2.5 dB) spread up to ~20 GHz.

The characteristics indicate the channel should be fine for NRZ and PAM4 link operations up to 25GHz , but it has difficulties supporting 50 Gbps NRZ operation as both the ILD and IL deteriorate quickly after 25 GHz.

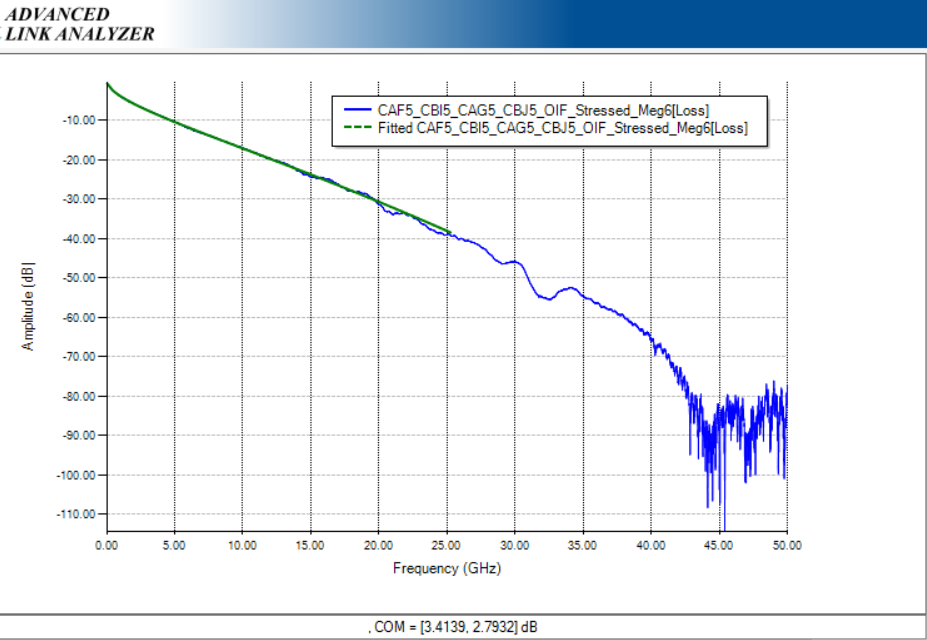

Figure 28. OIF_ Stressed Channel Characteristics Insertion Loss (IL)

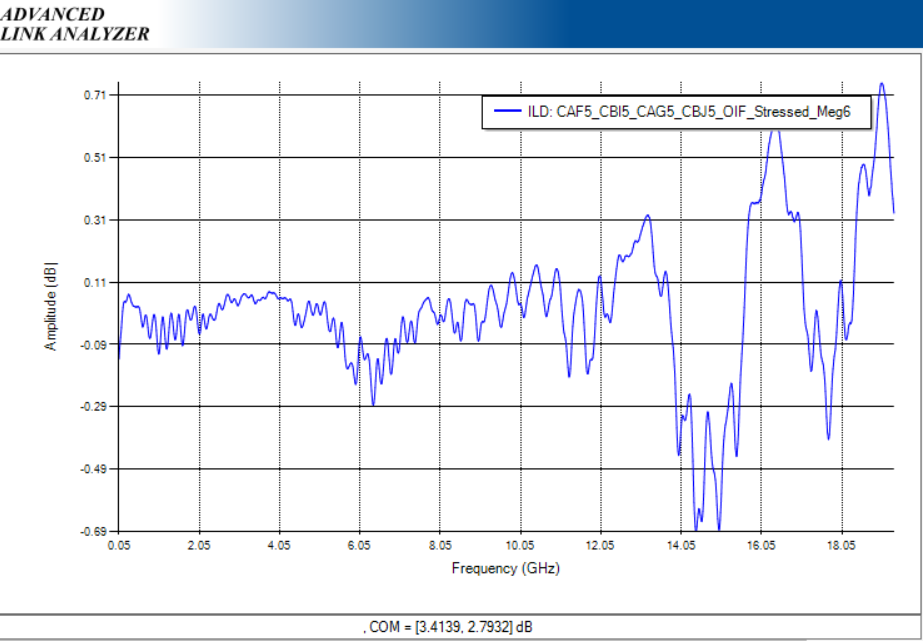

Figure 29. OIF_ Stressed Channel Characteristics Insertion Loss Deviation (ILD)

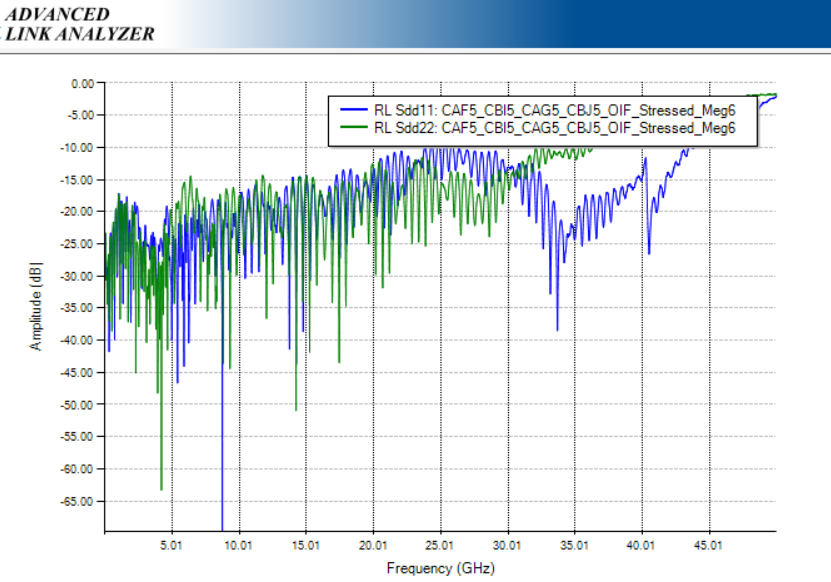

Figure 30. OIF_ Stressed Channel Characteristics Return Loss (RL)
