5.1. OIF_Stressed

COM Analysis was run on the channel under test using the Channel Viewer of Intel’s Advanced Link Analyzer. The COM results were as follows:

  • Short package length, COM (test 1) = 3.4139 dB, passing
  • Long package length, COM (test 2) = 2.7932 dB, marginally failing

The link simulation was run on the typical TX and RX packages, ~22.6 mm. The channel is just passing with COM ~3 dB.

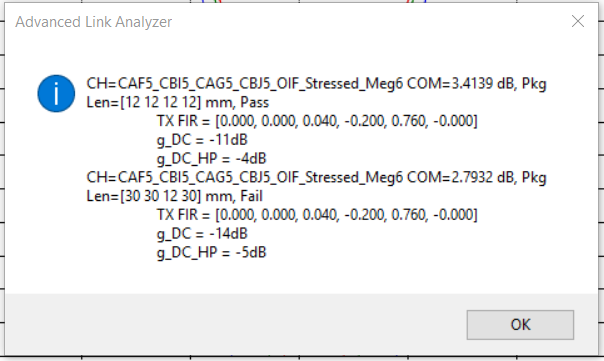

Figure 27. OIF_Stressed Channel Characteristics: COM Analysis Results for Test 1 and Test 2
