5.2.2. OIF_Compliant PAM4 Link Simulation with the Advanced Link Analyzer
The schematic topology is as follows:
- Transmitter (No Equalization): Intel® Stratix® 10 E-Tile, IBIS-AMI Model
- TX Package: Intel® Stratix® 10 TX Package
- Transmitter Channel: OIF Compliant Link
- RX Package: Intel® Stratix® 10 RX Package
- Receiver (Adaptive): Intel® Stratix® 10 E-Tile, IBIS-AMI Model

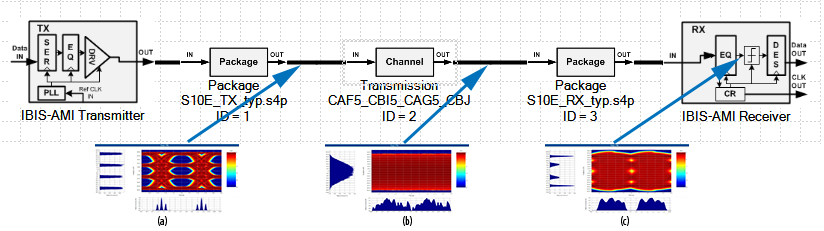

Figure 38. OIF Compliant Link Simulation Results(a) = TX eye diagram, (b) = Channel eye diagram, (c) = RX CDR eye diagram
![](/content/dam/docs/us/en/683852/current/ovk1513370875885.png)

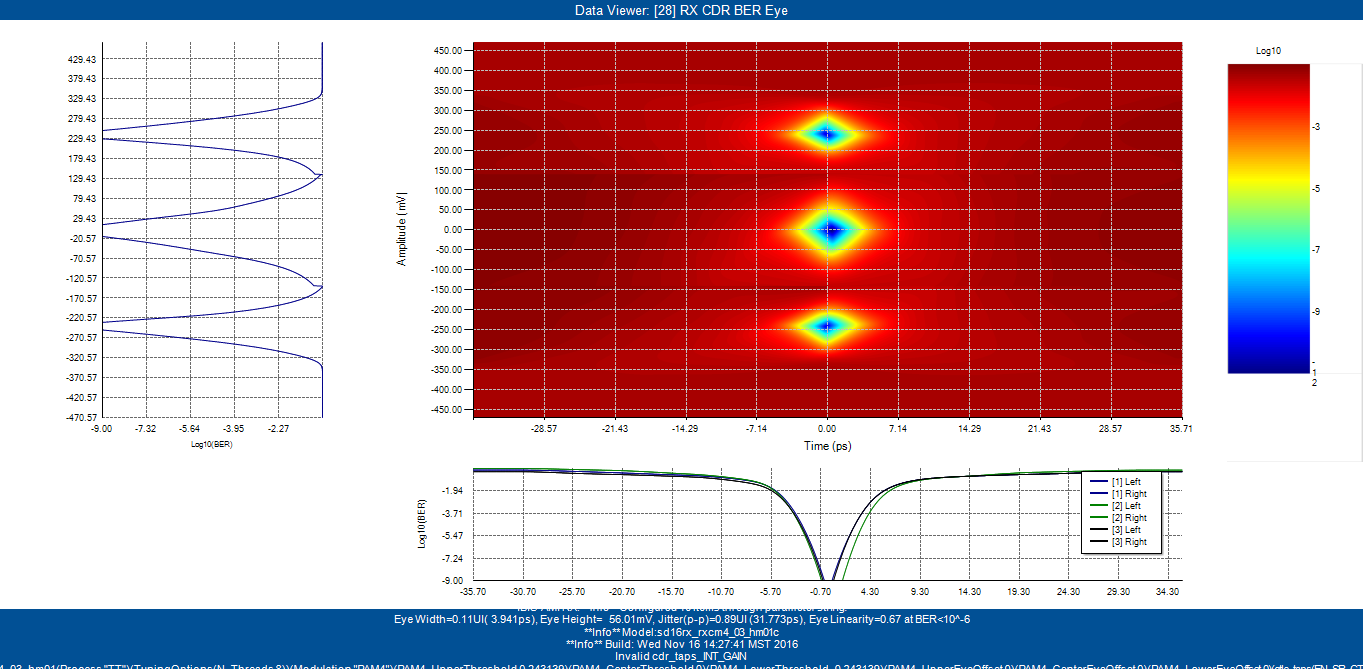

Figure 39. OIF Compliant Link Simulation Results: RX CDR BER EyeA BER contour of 1E-7 (clearly passing the CEI-OIF-56G MR spec).
![](/content/dam/docs/us/en/683852/current/jaq1513371084186.png)

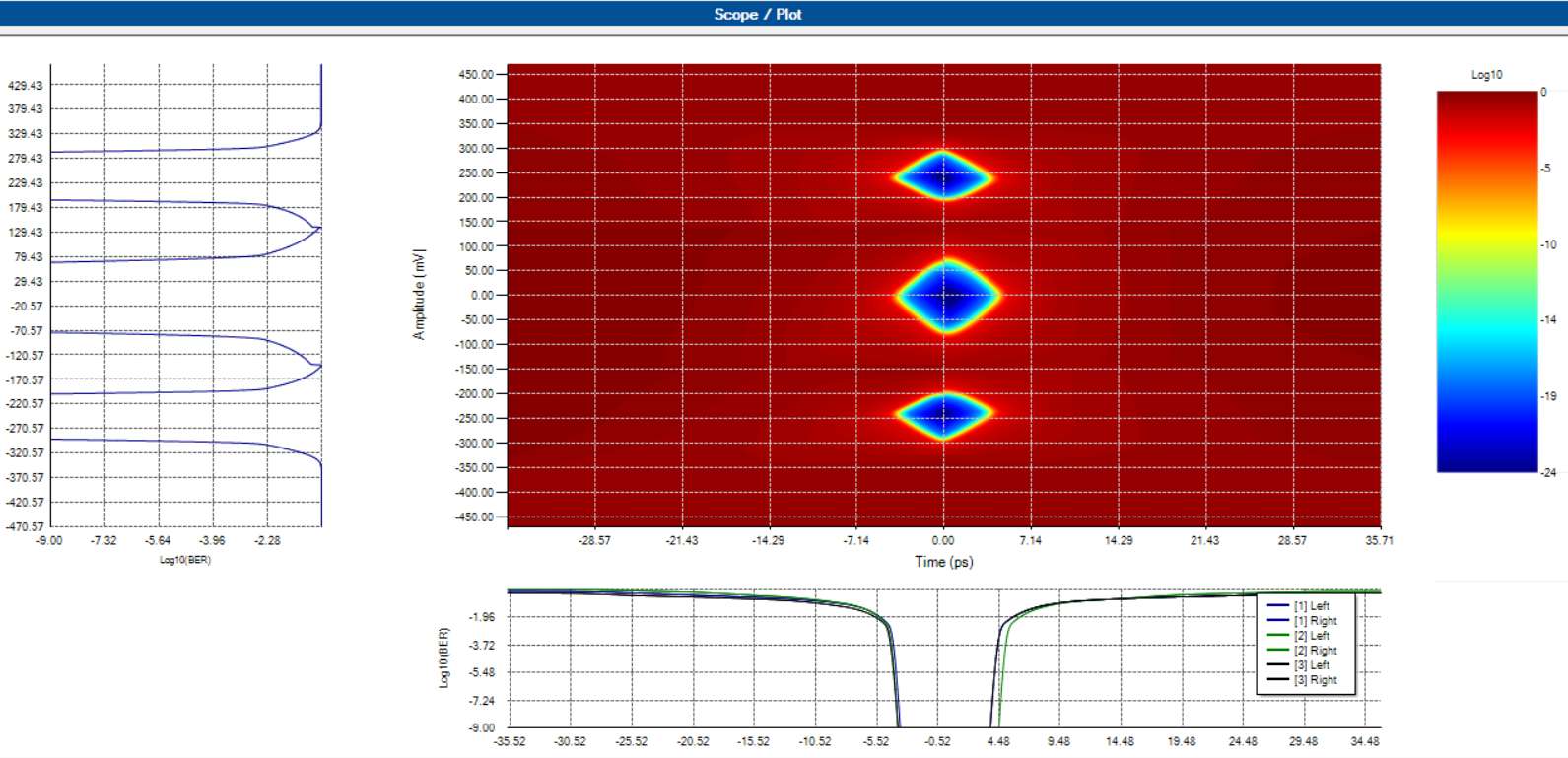

Figure 40. OIF Compliant Link Simulation Results: RX CDR FEC BER EyeA post FEC application, where the BER eye has significantly improved to approximately 1E-18.
