2.3. Eye Linearity

Because deterministic jitter is predictable when compared to random jitter, you can design your transmitter and receiver to eliminate it. Pre-emphasis is used by the transmitter to mitigate deterministic jitter. With good eye linearity, noise will be linear and can be modeled as a linear function. Eye linearity is an alternative to the RLM measurement and is defined in the following equation. Refer to the Transmitter Linearity (RLM) section for more details. The AVupp, AVmid and AVlow are the averages of the eye amplitudes, not EH6, as shown in the following figure. An ideal PAM4 eye has an eye linearity of 1.

Equation 3. Eye Linearity

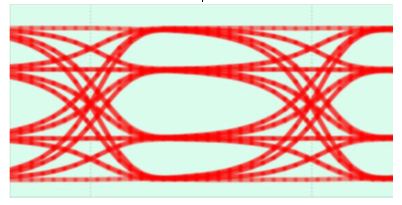

Figure 12. Non-Linear Eye Linearity
